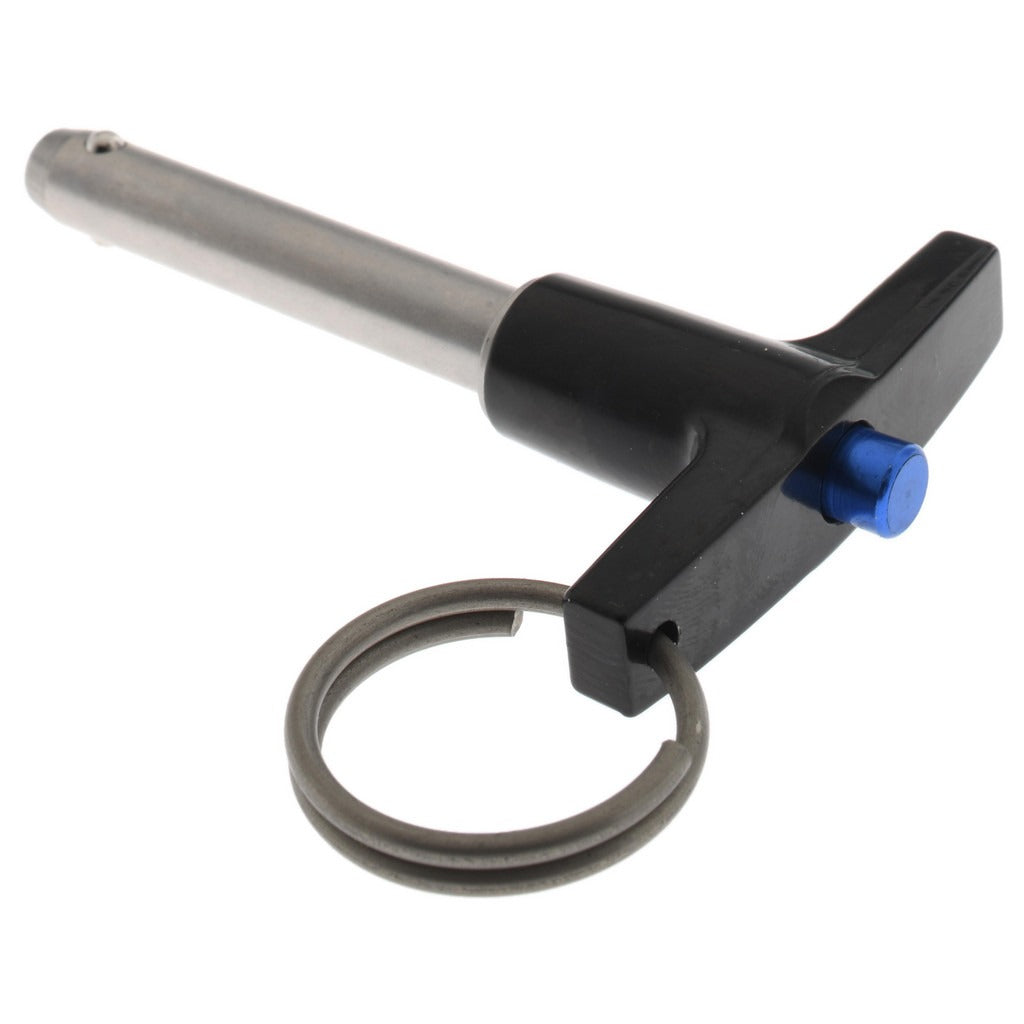

Gibraltar LBT-SS7120 Quick-release T-handle Pin 5/16in

Product Description

The GIBRALTAR LBT-SS7120 is a T-handle quick-release pin designed for fast, tool-free removal in mechanical assemblies, fixtures, and positioning applications. The pin body is machined from 17-4 stainless steel with a bright finish, offering high strength and corrosion resistance in demanding environments. At 5/16 inches in diameter and 1-1/2 inches of usable length, it fits compact assemblies where a positive-lock, removable pin connection is required. The T-handle design allows single-hand operation, making it practical for frequent insertion and removal cycles in production, maintenance, and field-service settings.

This quick-release pin is suited for use in industrial equipment, material-handling fixtures, jigs, carts, and structural assemblies where components must be repeatedly connected and disconnected without tools. The 17-4 stainless steel construction makes it appropriate for environments exposed to moisture, mild chemicals, or washdown conditions. It is sold individually and is a direct replacement or supplemental pin for any application requiring a 5/16-inch diameter T-handle quick-release pin with 1-1/2 inches of usable engagement.

Key Features

• 17-4 stainless steel construction for high strength and corrosion resistance
• T-handle design enables tool-free, single-hand operation
• 5/16 inches pin diameter fits standard drilled hole patterns
• 1-1/2 inches usable length provides positive engagement in compact assemblies
• Bright finish for easy visual inspection and clean appearance
• Sold as a single unit with no minimum order requirement beyond one piece

Compatibility

Designed as a direct-fit replacement or supplemental quick-release pin for any mechanical assembly, fixture, or equipment requiring a T-handle style pin with a 5/16-inch diameter and 1-1/2 inches of usable length in inch-measurement systems.

Installation Notes

Installation requires no special tools — insert the pin through aligned holes and allow the release mechanism to engage. Before servicing or replacing the pin on powered equipment, de-energize and lock out the machine per applicable OSHA lockout/tagout procedures. Verify the hole diameter and usable length match the assembly requirements before installation. Do not exceed the rated load for the pin diameter and material grade.
