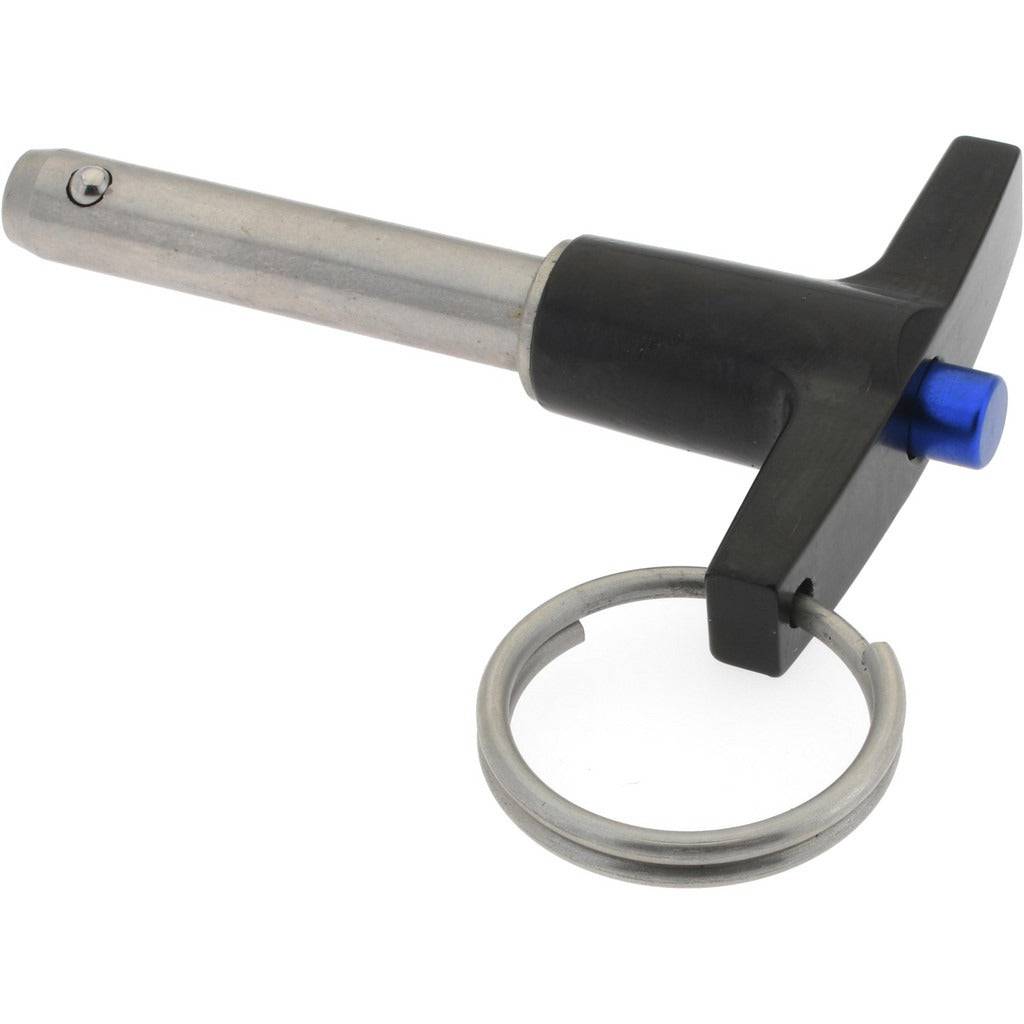

Gibraltar LBT-SS7119 Quick-release T-handle Pin 5/16 in

Product Description

The GIBRALTAR LBT-SS7119 is a T-handle quick-release pin designed for fast, tool-free removal in mechanical assemblies, jigs, fixtures, and equipment panels. Machined from 17-4 stainless steel with a bright finish, this pin delivers corrosion resistance and structural durability in demanding environments. The pin measures 5/16 inch in diameter with a usable length of 1.25 inches, making it well suited for light-duty to medium-duty fastening applications where repeated removal and reinstallation is required. Machinists, maintenance technicians, and fabricators install this type of pin in production tooling, guards, and adjustable positioning systems.

This quick-release pin is used in industrial and commercial settings where a secure yet rapidly removable connection point is needed. Typical applications include machinery guards, fixture locating, agricultural equipment, and structural panels requiring frequent access. The T-handle design allows finger-tight operation without tools, reducing downtime during maintenance cycles or production changeovers.

Key Features

• 17-4 stainless steel construction for corrosion resistance and strength
• T-handle design allows tool-free, one-hand operation
• 5/16 inch pin diameter with 1.25 inches usable length
• Bright finish for clean appearance and easy inspection
• Inch measurement system for compatibility with standard tooling drawings

Compatibility

Designed as a standard inch-series quick-release T-handle pin suitable for use in fixtures, jigs, machinery guards, and adjustable assemblies requiring a 5/16 inch pin diameter and approximately 1.25 inches of usable engagement length.

Installation Notes

Installation is performed by maintenance technicians or machinists as part of fixture assembly or equipment maintenance. Power down or de-energize any associated equipment before inserting or removing the pin from an active assembly. Verify that the receiving holes are clean and free of debris to ensure the locking detent seats fully. Do not force the pin into an undersized or misaligned bore, as this can damage the detent mechanism.
