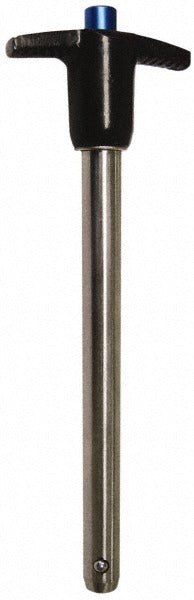

Gibraltar LBT-SS7105 Quick-release T-handle Pin 3/16 in

Product Description

The GIBRALTAR LBT-SS7105 is a T-handle quick-release pin designed for fast, tool-free removal and installation in jigs, fixtures, tooling, and general industrial assembly applications. Manufactured from 17-4 stainless steel with a bright finish, this pin offers corrosion resistance and strength suitable for demanding service environments. The pin measures 3/16 inches in diameter with a 2-inch usable length, making it appropriate for light-to-medium duty indexing and locking tasks. Machinists, fabricators, and maintenance technicians working in production, assembly, or field environments commonly specify this type of quick-release fastener where repeated access is required.

This quick-release pin is suited for use in industrial fixtures, jigs, machine guards, tooling plates, and equipment panels where a secure but removable connection is needed without tools. The T-handle configuration allows finger-operated actuation, reducing setup and teardown time on the shop floor or in the field. Its stainless steel construction makes it appropriate for environments with exposure to moisture, mild chemicals, or washdown conditions. This pin is sold and shipped as an individual unit.

Key Features

• 17-4 stainless steel construction provides corrosion resistance and high tensile strength
• T-handle design allows tool-free, one-hand operation for fast pin removal and insertion
• 3/16 inch pin diameter with 2 inches of usable length suits light-to-medium duty applications
• Bright finish on pin body
• Inch measurement system; fits standard inch-dimensioned fixtures and tooling
• Sold as a single unit (package quantity of 1)

Compatibility

Designed as a standard quick-release T-handle pin for use in inch-dimensioned industrial fixtures, jigs, tooling plates, and machine components requiring a 3/16 inch diameter quick-release pin with a 2-inch usable length.

Installation Notes

Installation requires no special tools; the T-handle is actuated by hand to retract the locking mechanism before insertion or removal. Verify that the receiving hole diameter and depth in the mating component match the pin diameter and usable length before installation. When used in load-bearing or safety-critical fixture applications, confirm that the pin load rating meets application requirements before placing in service. De-energize or lock out any associated equipment before servicing pins on machinery per applicable OSHA lockout/tagout procedures.
