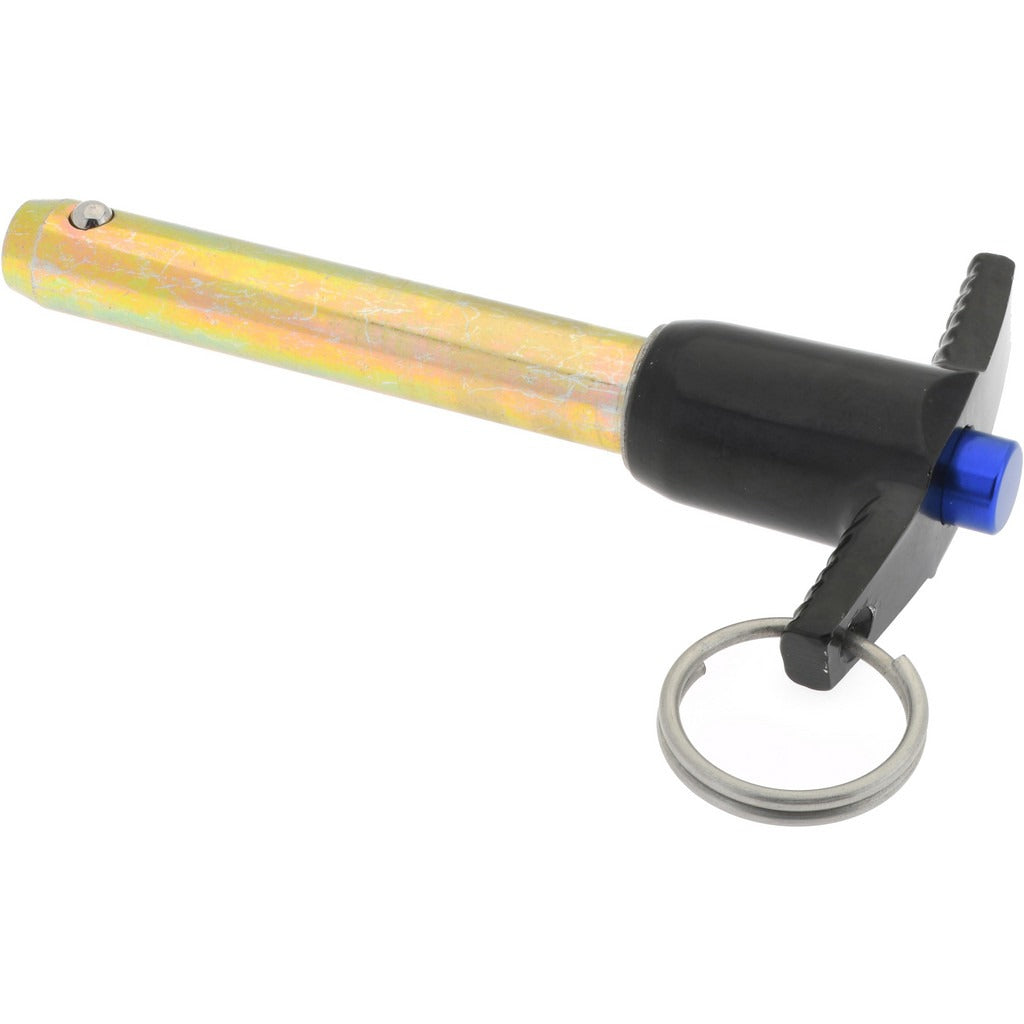

Gibraltar LBT-146 Quick-release T-handle Pin 0.5 in

Product Description

The GIBRALTAR LBT-146 is a quick-release T-handle pin designed for fast, tool-free removal in industrial, mechanical, and fabrication applications. The pin features a 0.5 inch diameter and a 2.5 inch usable length, constructed from 4130 alloy steel with a zinc-plated finish for corrosion resistance. The T-handle configuration allows single-hand operation, making it a practical choice for repeated assembly and disassembly on jigs, fixtures, guards, and adjustable equipment. Maintenance technicians, machine operators, and fabricators typically install and use this pin in production or shop environments where quick access is required.

This quick-release pin is suited for light industrial and mechanical applications requiring frequent component removal or positional adjustment. Common uses include securing hinged guards, indexing fixtures, locking adjustable arms, and retaining removable panels. The zinc-plated finish provides a measure of protection in shop environments with moderate moisture exposure. Packaged individually, it is sold as a single-unit item with no bulk quantity requirement.

Key Features

• T-handle design allows tool-free, single-hand operation for fast release and insertion
• 4130 alloy steel construction provides strength suitable for mechanical and industrial use
• Zinc-plated finish adds corrosion resistance for shop and light outdoor environments
• 0.5 inch pin diameter and 2.5 inch usable length suit a wide range of standard fixture and guard applications
• Sold as individual unit with no minimum order quantity requirement

Compatibility

Designed as an OEM-style replacement or direct-fit component for standard quick-release pin applications requiring a 0.5 inch diameter, 2.5 inch usable length T-handle pin in industrial fixtures, jigs, and adjustable mechanical assemblies.

Installation Notes

Installation does not require special tools. Verify that the receiving hole diameter and depth are compatible with the pin dimensions before installation. De-energize or lock out any equipment before inserting or removing the pin per applicable OSHA lockout/tagout procedures. Inspect the detent ball mechanism for proper spring function prior to placing the pin in service.
