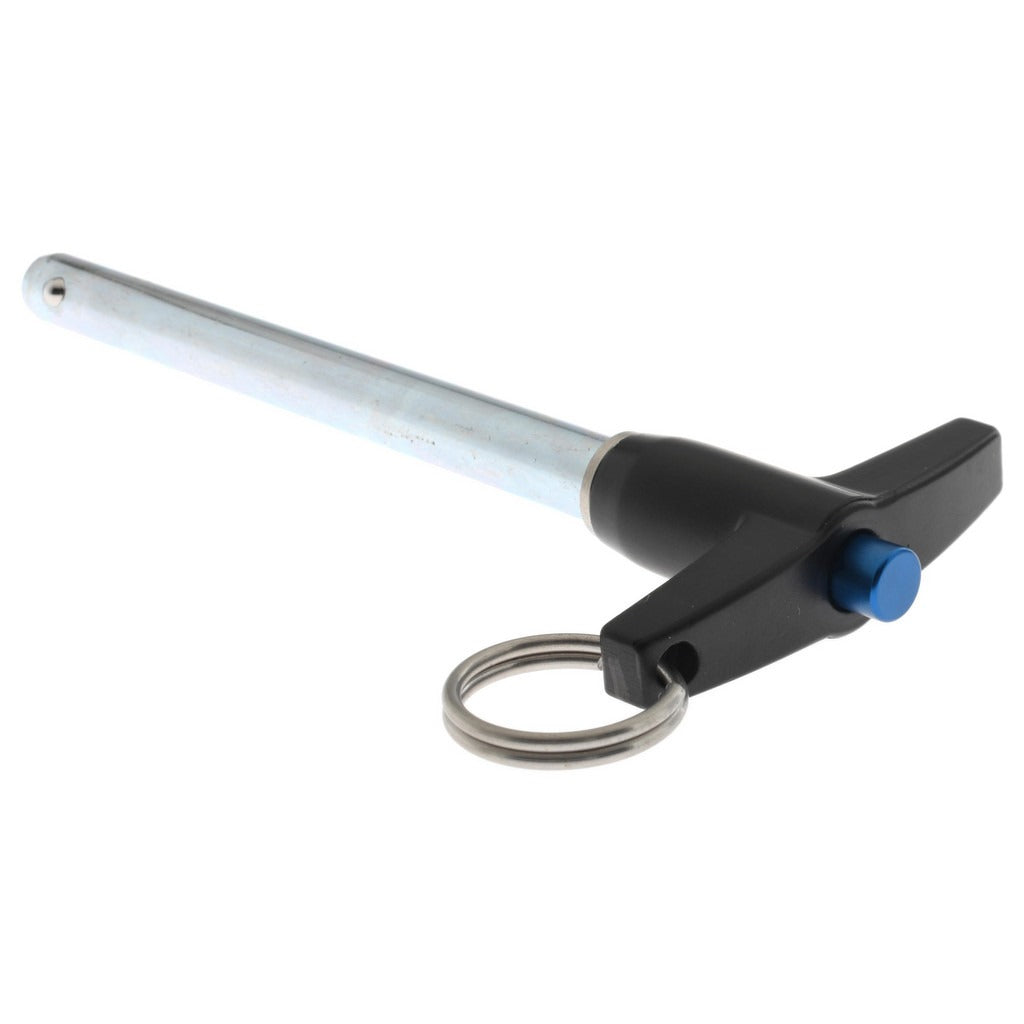

Gibraltar LBT-127 Quick-release T-handle Pin 5/16 in

Product Description

The GIBRALTAR LBT-127 is a quick-release pin with a T-handle, designed for fast, tool-free pin insertion and removal in mechanical assemblies, jigs, fixtures, and equipment panels. The pin body is manufactured from 4130 alloy steel with a zinc-plated finish for corrosion resistance. It measures 5/16 inches in diameter with a 3-inch usable length. The T-handle provides a secure grip for repeated engagement and disengagement cycles. This type of hardware is typically installed by millwrights, maintenance technicians, and fabricators working on assemblies that require frequent access or component changeover.

Quick-release pins with T-handles are used across a wide range of industrial and mechanical applications including machine guarding, lift fixtures, agricultural equipment, carts, frames, and panel assemblies. The LBT-127 is suited for applications where a standard inch-measurement pin is required and where the 5/16-inch diameter and 3-inch usable length match the clevis or lug hole geometry of the assembly. It is packaged as a single unit.

Key Features

• Tool-free quick-release operation via T-handle grip
• 4130 alloy steel pin body for strength in load-bearing applications
• Zinc-plated finish for corrosion resistance in shop and field environments
• 5/16 inch pin diameter with 3 inch usable length
• Inch measurement system for compatibility with standard US fastener layouts
• Single-unit packaging for replacement or prototype use

Compatibility

Designed as an OEM-style replacement or direct-fit quick-release pin for inch-dimensioned clevis, lug, and through-hole assemblies requiring a 5/16-inch diameter pin with a 3-inch usable length.

Installation Notes

Installation does not require tools — insert the pin through aligned holes in the assembly and allow the spring-loaded detent ball or ring to engage. Before servicing or replacing the pin in a load-bearing fixture, de-energize or secure the assembly to prevent movement. Verify hole diameter and usable length requirements match the assembly specification before installation. Follow applicable ANSI or OSHA guarding standards when using quick-release pins in machine guarding applications.
