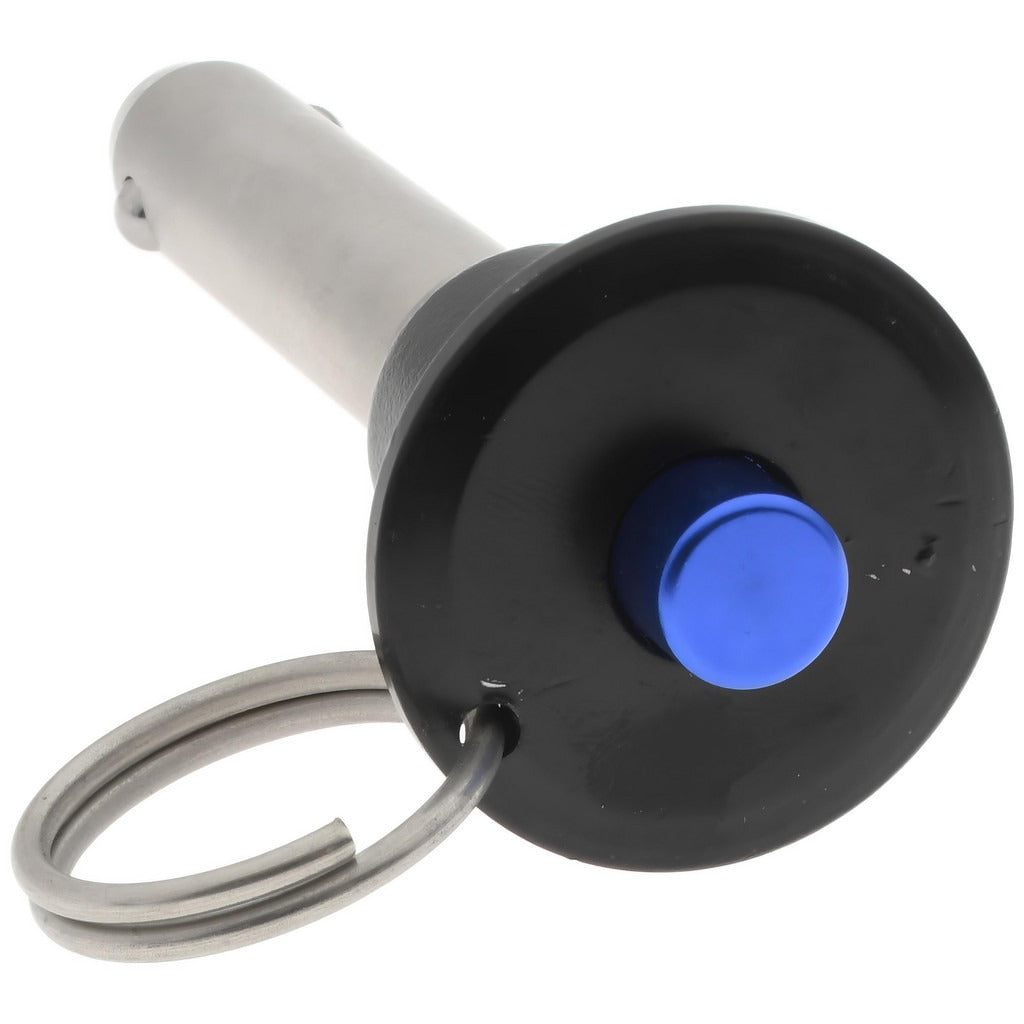

Gibraltar LBR-SS7152 Quick-release Pin 1/2 in 2 in 17-4 Ss

Product Description

The GIBRALTAR LBR-SS7152 is a button-handle quick-release pin machined from 17-4 stainless steel with a bright finish. It features a 0.5 inch pin diameter and a 2 inch usable length, making it a compact, corrosion-resistant fastening solution for assemblies that require frequent disassembly without tools. The button-actuated locking mechanism allows the pin to be inserted and withdrawn quickly under load or light-duty cycling conditions. This pin is commonly installed by maintenance technicians, millwrights, and fabricators working in industrial, marine, or commercial environments where stainless steel construction is specified for corrosion resistance.

The LBR-SS7152 is suited for use in jigs, fixtures, hinged panels, safety guards, linkages, and other assemblies requiring a positive but removable connection. The 17-4 stainless steel grade provides good strength and corrosion resistance in wet, outdoor, or chemically active environments. Its inch-system dimensioning makes it a direct fit in standard domestic fabrication and OEM applications.

Key Features

• 17-4 stainless steel construction for corrosion resistance in demanding environments
• Button-handle design allows tool-free pin insertion and removal
• 0.5 inch pin diameter with 2 inch usable length
• Bright finish for clean appearance and dimensional consistency
• Inch-system measurement for compatibility with standard domestic hardware

Compatibility

Designed as an OEM-style replacement or direct-fit component for fixtures, jigs, guards, and linkages that call for a 0.5 inch diameter quick-release pin with a 2 inch usable length in an inch-measurement system.

Installation Notes

Installation and removal require no tools — compress the button to retract the locking detent, insert or withdraw the pin, then release. Verify that the mating hole diameter and through-thickness match the pin diameter and usable length before installation. Inspect the detent button and spring function before placing the pin in service. Follow applicable machinery safety standards when using quick-release pins in load-bearing or safety-critical applications.
