Gibraltar LBR-SS3115 Quick-release Pin 5/16 in 304 Ss

Product Description

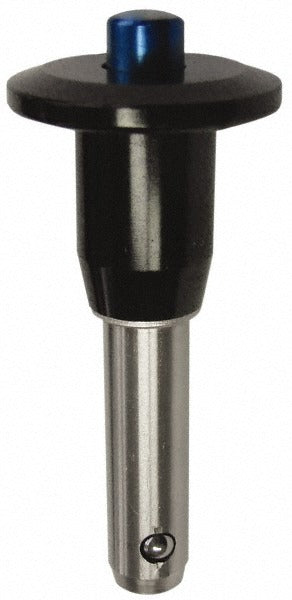

The GIBRALTAR LBR-SS3115 is a button-handle quick-release pin machined from grade 304 stainless steel with a bright finish. The pin measures 5/16 inches in diameter with 2 inches of usable length, making it suited for lightweight to moderate-duty fastening and alignment applications where fast, tool-free removal is required. The 304 stainless construction provides corrosion resistance in wet, outdoor, or chemically exposed environments. Maintenance technicians, fabricators, and equipment service pros use this style of pin wherever repeated assembly and disassembly cycles demand speed without hardware loss.

This quick-release pin is used across a wide range of industrial, mechanical, and field-service applications. Common installations include machine guards, hinged access panels, jig fixtures, equipment frames, and mounting assemblies where frequent component removal is expected. The button-handle style allows single-hand operation, releasing the locking ball detents by pressing the button flush and withdrawing the pin. Sold individually, it is appropriate wherever a single replacement pin is needed.

Key Features

• 5/16 inch pin diameter with 2 inches of usable length for consistent, repeatable fitment
• Grade 304 stainless steel construction resists corrosion in wet and outdoor environments
• Bright finish on pin body for smooth insertion and withdrawal
• Button-handle design enables single-hand, tool-free release
• Ball-detent locking mechanism retains pin securely during operation
• Inch measurement system for compatibility with standard imperial hardware

Compatibility

Designed as a direct-replacement or supplemental quick-release pin for equipment assemblies, fixtures, and frames that accept a 5/16 inch diameter quick-release pin with a 2 inch usable length and standard ball-detent retention.

Installation Notes

Quick-release pins are typically installed by maintenance technicians or equipment fabricators without specialized tools. Before replacing or installing the pin, ensure the equipment is de-energized, pressure-relieved, and mechanically secured to prevent unintended movement. Verify the hole diameter and usable-length requirement of the receiving assembly match the pin specifications before installation. Do not force the pin into undersized holes, as this can damage the ball-detent mechanism.
