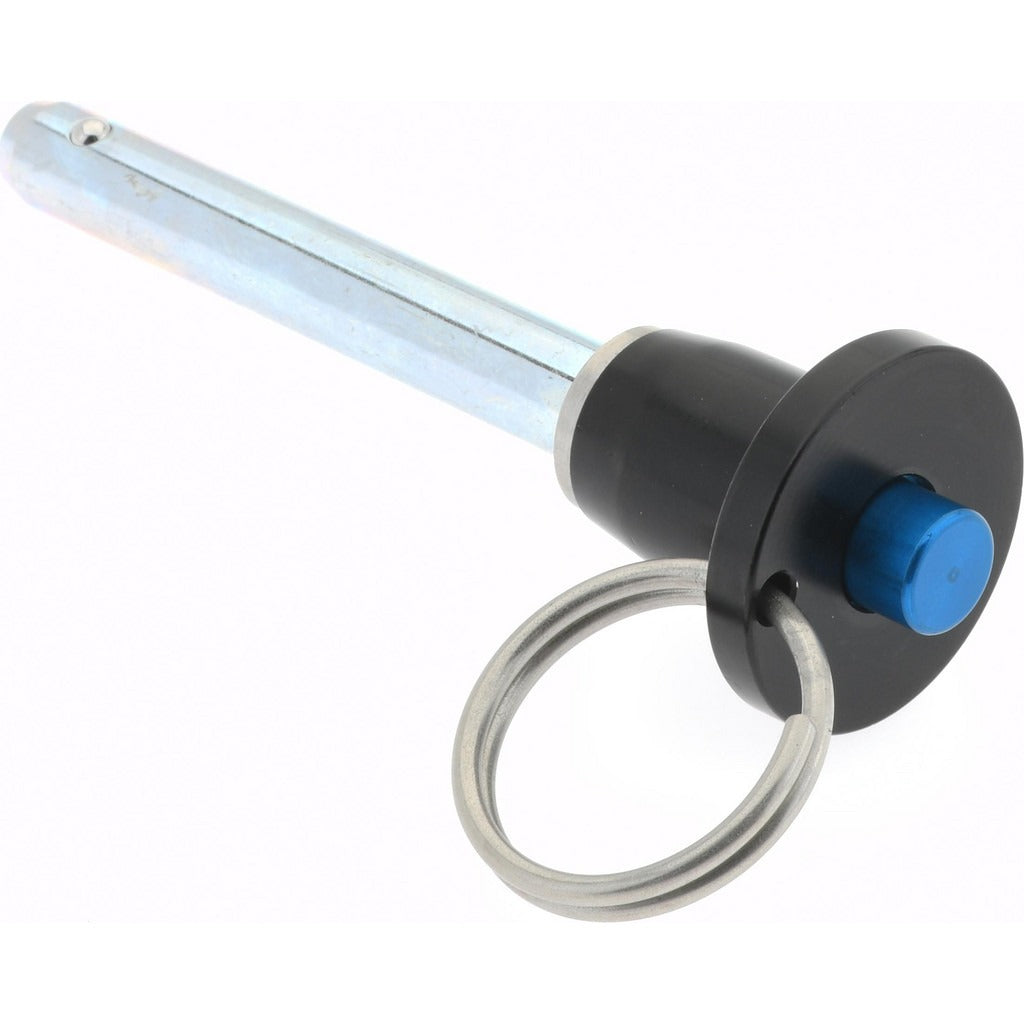

Gibraltar LBR-114 Quick-release Pin 1/4 in Button Handle

Product Description

The GIBRALTAR LBR-114 is a button-handle quick-release pin designed for fast, tool-free connection and disconnection of mechanical assemblies. The pin measures 0.25 inches in diameter with a 1.5-inch usable length, making it suitable for light-to-medium duty fastening applications where frequent removal is required. Constructed from 4130 alloy steel with a zinc-plated finish, the LBR-114 resists corrosion while maintaining structural integrity under load. The button-handle mechanism allows single-hand operation, reducing assembly time in production, maintenance, and field service environments. This pin is sold individually and is measured in inch standards.

The LBR-114 is used in mechanical assemblies, industrial equipment, and maintenance fixtures where a reusable, non-threaded fastener is needed. The compact 0.25-inch diameter and 1.5-inch usable length fit standard clevis and bracket configurations common in light machinery, jigs, and tooling setups. It is well-suited for applications where components are routinely disassembled for inspection, adjustment, or reconfiguration. Machinists, maintenance technicians, and assembly workers typically install this type of pin in fabrication and plant maintenance settings.

Key Features

• 0.25-inch pin diameter with 1.5-inch usable length for compact fastening applications
• 4130 alloy steel construction provides strength and durability
• Zinc-plated finish offers corrosion resistance in industrial environments
• Button-handle design enables tool-free, single-hand pin removal and insertion
• Inch measurement system; sold as a single unit

Compatibility

Designed as a standard inch-series quick-release pin for use in mechanical assemblies, jigs, fixtures, and equipment requiring a 0.25-inch diameter quick-release fastener with a 1.5-inch usable length.

Installation Notes

Installation requires no special tools — compress the button to retract the locking balls, insert or remove the pin, then release. Ensure the receiving holes are clean and sized to accept a 0.25-inch diameter pin before installation. Verify that the application load does not exceed the rated shear and tensile capacity of the pin before use. Inspect the button mechanism and locking balls periodically for wear or debris that could prevent full engagement.
