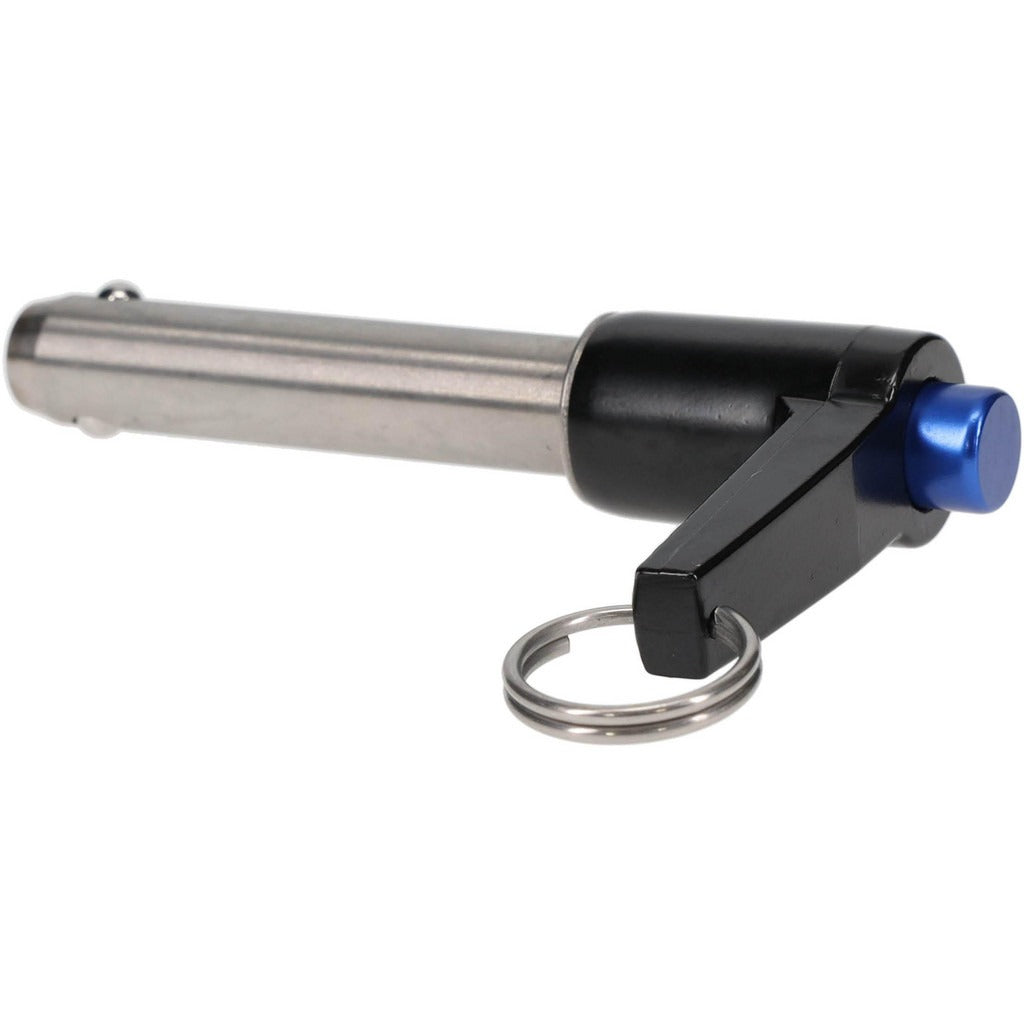

Gibraltar LBL-SS7164 Quick-release Pin 5/8 in 17-4 Ss

Product Description

The GIBRALTAR LBL-SS7164 is a quick-release pin with an L-handle, designed for fast, tool-free insertion and removal in industrial and mechanical assemblies. The pin measures 5/8 inch in diameter with a 2.5-inch usable length and is manufactured from 17-4 stainless steel with a bright finish. This material grade provides high strength combined with corrosion resistance, making it well suited for environments where moisture, chemicals, or repeated handling would degrade standard steel hardware. It is sold individually and is a direct fit for applications requiring precise pin diameter and length specifications.

This quick-release pin is used in a wide range of industrial, mechanical, and structural assembly applications where components need to be secured and released frequently without tools. Common install scenarios include jigs, fixtures, machine guards, hinged panels, and adjustable assemblies in manufacturing and maintenance environments. The L-handle configuration allows for easy grip and pull even in confined spaces or while wearing gloves. It is typically installed and serviced by maintenance technicians, millwrights, or mechanical assemblers.

Key Features

• 17-4 stainless steel construction for high strength and corrosion resistance
• Bright finish for clean appearance and surface protection
• 5/8 inch pin diameter for a secure, precise fit in mating holes
• 2.5-inch usable length accommodates moderate-depth assemblies
• L-handle design enables tool-free, single-hand operation
• Sold as a single unit with no minimum order beyond one piece

Compatibility

Designed as a standard-dimension quick-release pin for industrial fixtures, jigs, hinged panels, and mechanical assemblies requiring a 5/8 inch diameter pin with a 2.5-inch usable length.

Installation Notes

Installation requires no special tools — insert the pin through aligned holes in the mating components and confirm the release mechanism seats fully before applying load. Before servicing any assembly that relies on this pin for retention, relieve all tension or load from the connected components. Inspect the pin and ball-detent mechanism periodically for wear, deformation, or corrosion that could compromise retention force. Follow applicable machinery safety standards and lockout/tagout procedures when working on powered or load-bearing equipment.
