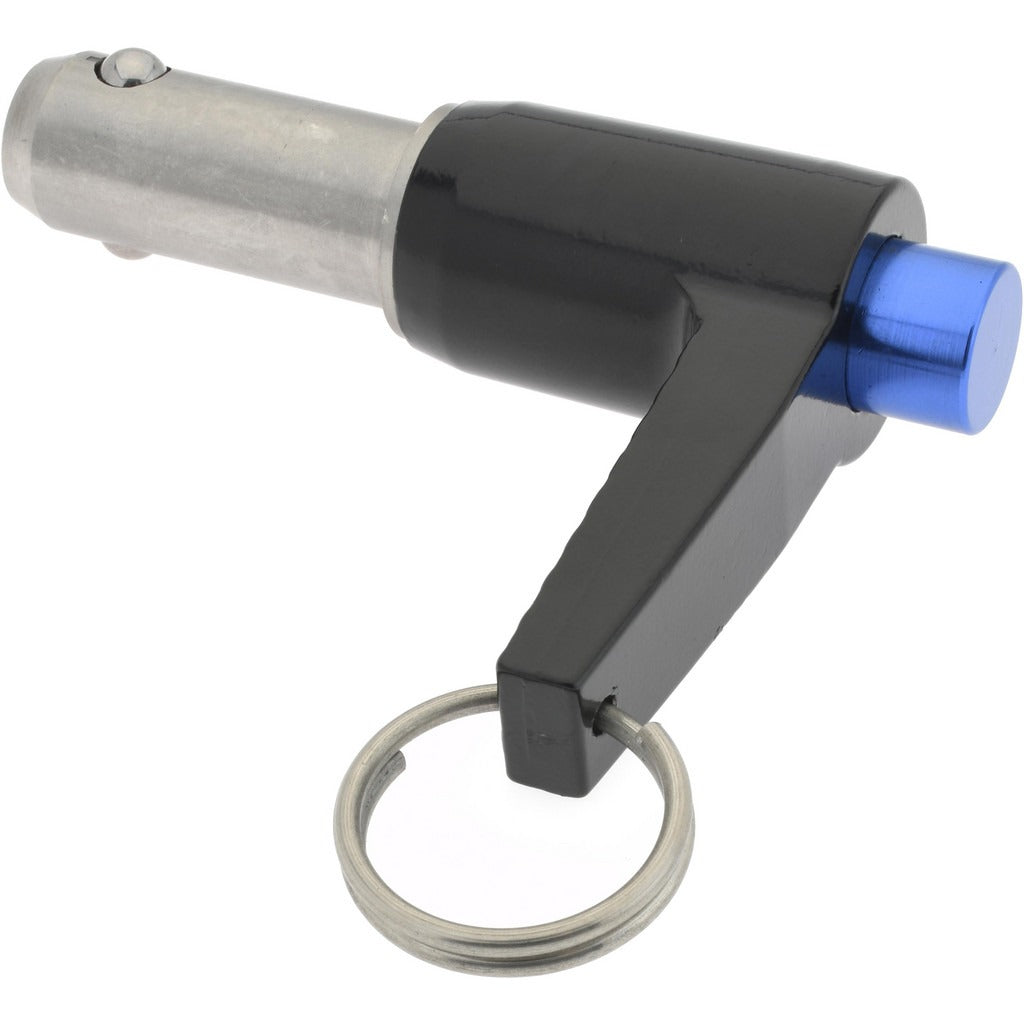

Gibraltar LBL-SS7161 Quick-release Pin 5/8 in L-handle Ss

Product Description

The GIBRALTAR LBL-SS7161 is a quick-release pin with an L-handle, designed for fast, tool-free insertion and removal in mechanical assemblies, jigs, fixtures, and industrial equipment. Built from 17-4 stainless steel with a bright finish, this pin delivers high strength and corrosion resistance in demanding environments. The pin measures 5/8 inch in diameter with 1 inch of usable length, making it suitable for compact fastening applications where reliable retention and quick disengagement are required. Weighing 0.35 pounds, it is lightweight without sacrificing structural integrity. Licensed tradespeople and industrial maintenance technicians commonly specify this type of pin for tooling setups and equipment access panels.

This quick-release pin is suited for use in manufacturing, fabrication, and maintenance applications where components must be secured and released repeatedly without tools. It fits residential and commercial equipment enclosures, machine guards, and fixture assemblies that require frequent adjustment or disassembly. Its stainless steel construction makes it appropriate for environments exposed to moisture, mild chemicals, or wash-down conditions. The L-handle configuration allows for positive grip and straightforward operation even with gloved hands.

Key Features

• 17-4 stainless steel construction provides high tensile strength and corrosion resistance
• L-handle design enables tool-free, single-hand operation for rapid pin insertion and removal
• 5/8 inch pin diameter with 1 inch usable length for compact fastening applications
• Bright finish for clean appearance and ease of visual inspection
• Lightweight at 0.35 pounds, suitable for weight-sensitive assemblies
• Inch measurement system for straightforward compatibility with standard imperial tooling

Compatibility

Designed as a standard quick-release L-handle pin for use in mechanical fixtures, jigs, tooling assemblies, and industrial equipment requiring tool-free fastening with a 5/8 inch diameter pin hole and 1 inch usable engagement depth.

Installation Notes

Installation is typically performed by maintenance technicians, millwrights, or equipment assemblers without special tools. Before installing or removing the pin in powered equipment, de-energize and lock out the machine per applicable OSHA lockout/tagout procedures. Confirm that the receiving hole diameter and depth match the pin specifications before installation. Do not force the pin into an undersized or misaligned hole, as this can damage the retention mechanism.
