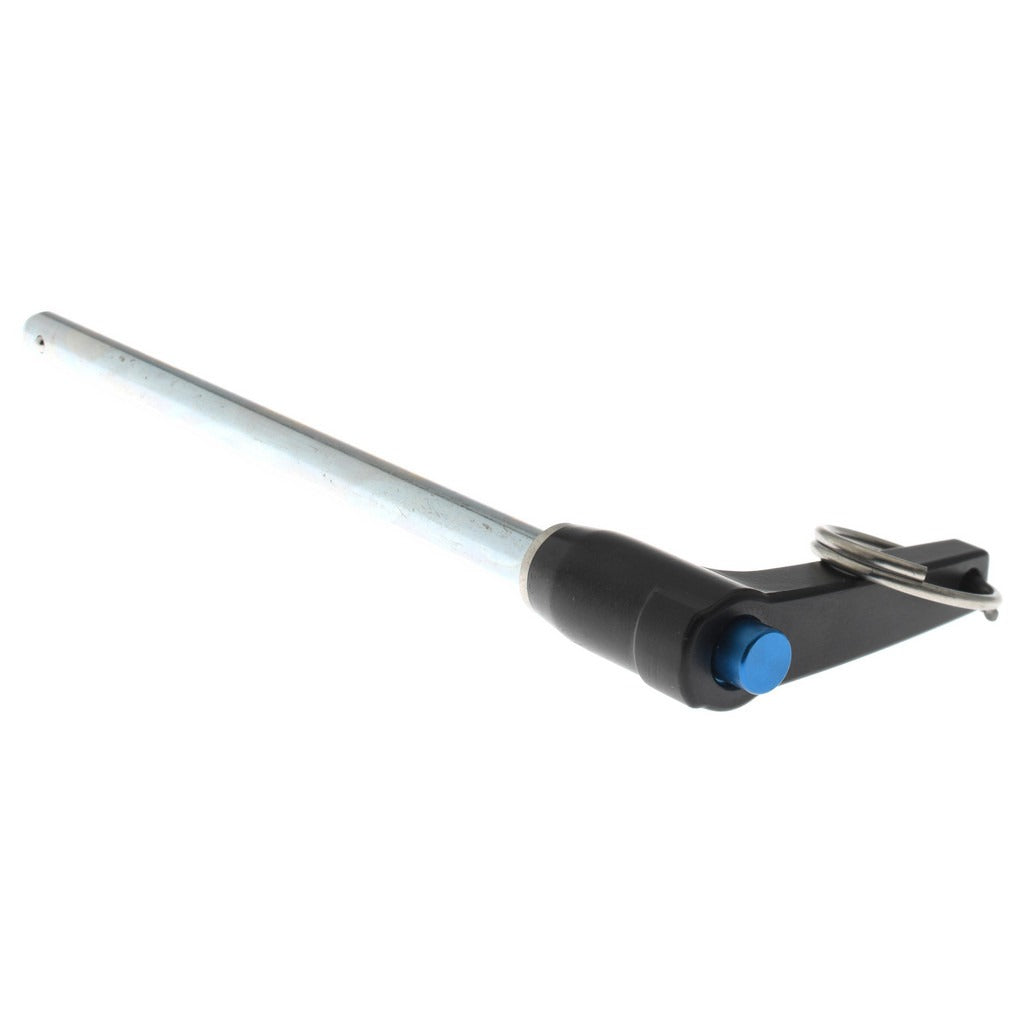

Gibraltar LBL-119 Quick-release Pin 1/4 in 4 in Steel

Product Description

The GIBRALTAR LBL-119 is a quick-release pin with an L-handle, designed for fast, tool-free engagement and disengagement in mechanical assemblies and equipment fixtures. The pin features a 0.25 inch diameter and a 4 inch usable length, manufactured from 4130 alloy steel with a zinc-plated finish for corrosion resistance. This type of pin is commonly installed by maintenance technicians, millwrights, and industrial assemblers working with jigs, fixtures, guards, and adjustable components that require frequent removal and reinstallation without hardware tools.

The LBL-119 is suited for use in light industrial, commercial, and mechanical applications where a secure yet removable pin connection is needed. Typical installation scenarios include machine guarding, frame assemblies, equipment panels, and positioning fixtures. The L-handle design allows for a firm grip during insertion and extraction, making it practical in confined or repetitive-use applications. This pin is measured in inch units and is packaged as a single unit.

Key Features

• L-handle design allows tool-free insertion and removal in high-cycle applications
• 0.25 inch pin diameter with 4 inch usable length for medium-depth pin connections
• 4130 alloy steel construction provides strength and durability under load
• Zinc-plated finish adds corrosion resistance for use in light industrial environments
• Single-unit packaging with no minimum order requirement beyond one piece

Compatibility

Designed as a standard quick-release L-handle pin for use in jigs, fixtures, machine guards, and adjustable mechanical assemblies requiring a 0.25 inch pin diameter and 4 inch usable length.

Installation Notes

Installation and removal do not require tools due to the L-handle design. Ensure the receiving hole diameter is properly matched to the pin diameter before installation to prevent binding or excessive play. Inspect the ball-detent or locking mechanism for wear before each use in safety-critical applications. Depressurize or de-energize any equipment before servicing components secured by this pin.
