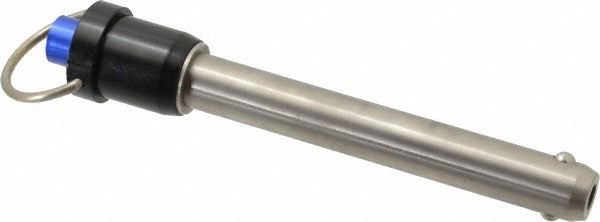

Gibraltar LBH-SS7167 Quick-release Pin 5/8 in Ring Handle

Product Description

The GIBRALTAR LBH-SS7167 is a quick-release pin with a ring handle, designed for fast, tool-free removal in mechanical assemblies, jigs, fixtures, and industrial equipment. The pin measures 5/8 inch in diameter with a 4-inch usable length, and is machined from 17-4 stainless steel with a bright finish. The 17-4 grade provides a strong combination of corrosion resistance and mechanical strength, making this pin suitable for demanding environments including wash-down areas, outdoor installations, and applications where mild chemical exposure is a factor. Machinists, maintenance technicians, and fabricators use this type of pin to secure removable components that require frequent access.

This quick-release pin is suited for use in manufacturing fixtures, assembly jigs, agricultural equipment, marine hardware, and general industrial machinery where repeated pin insertion and removal is required without tools. The ring handle design allows single-handed operation, which is useful in confined or awkward access points. This pin is appropriate for both light-duty and moderate-load applications where a secure but removable connection is needed.

Key Features

• 17-4 stainless steel construction provides corrosion resistance and high mechanical strength
• 5/8 inch pin diameter for a secure fit in standard-sized pin holes
• 4-inch usable length accommodates assemblies with greater depth or stacked components
• Ring handle enables fast, tool-free insertion and removal
• Bright finish provides a clean surface that resists contamination buildup
• Inch measurement system; compatible with UNSPSC category 31162400 fastener classifications

Compatibility

Designed as a standard quick-release ring-handle pin for use in fixtures, jigs, and mechanical assemblies requiring a 5/8 inch diameter pin with a 4-inch usable length.

Installation Notes

Quick-release pins of this type are installed and removed by hand without special tools. Ensure the receiving hole diameter matches the pin diameter closely to prevent slop or unintended release under load. Inspect the release mechanism and retaining ball or groove for wear before each use in load-bearing applications. Follow all applicable machinery safety standards when using quick-release pins in dynamic or load-bearing assemblies.
