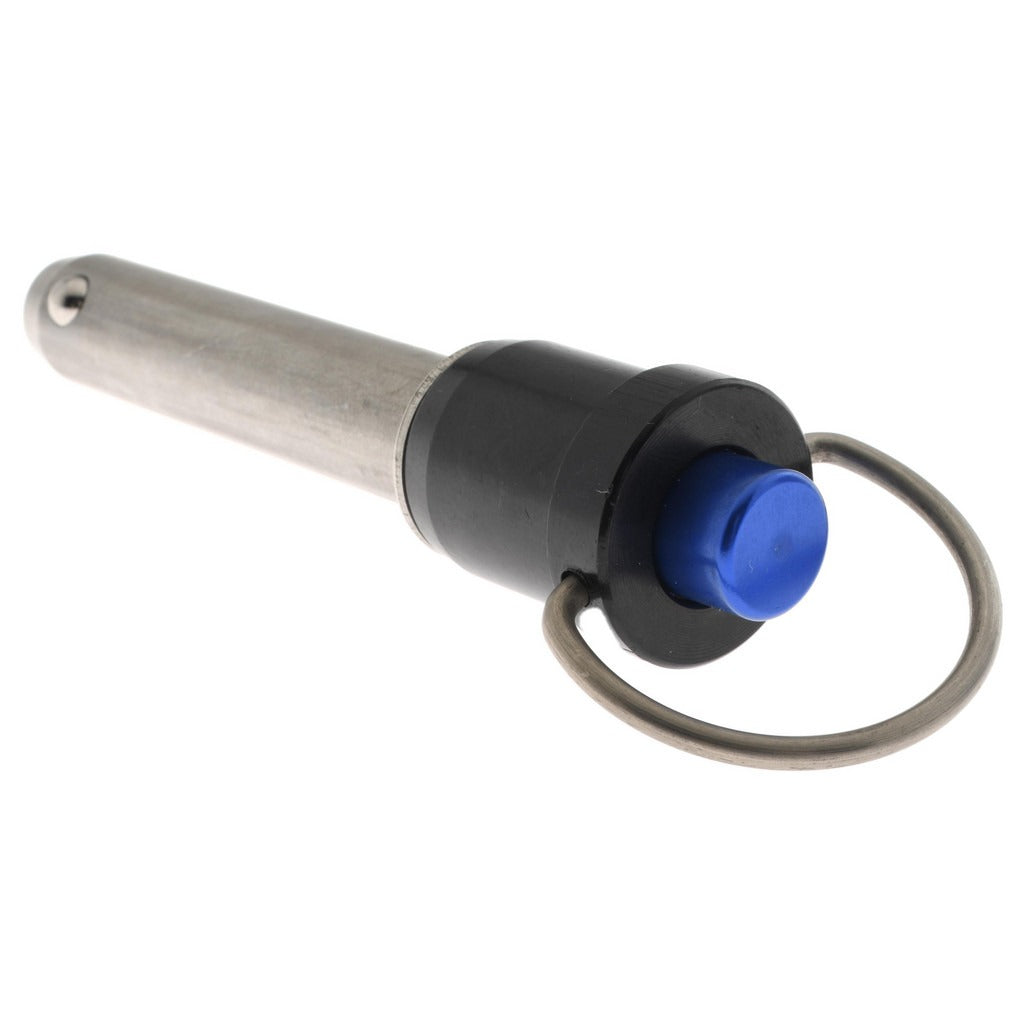

Gibraltar LBH-SS7164 Quick-release Pin 5/8 in Stainless

Product Description

The GIBRALTAR LBH-SS7164 is a ring-handle quick-release pin designed for fast, tool-free insertion and removal in mechanical assemblies, jigs, fixtures, and industrial equipment. Built from 17-4 stainless steel with a bright finish, this pin delivers high corrosion resistance and strength in demanding environments. It measures 5/8 inch in diameter with a 2-1/2 inch usable length, making it suitable for moderate-load pinning applications where repeated cycling and quick disassembly are required. Machinists, millwrights, and maintenance technicians commonly specify this pin type for production tooling and field equipment.

This quick-release pin is used in a wide range of industrial and commercial settings including manufacturing fixtures, agricultural equipment, material handling systems, and structural assemblies. The ring handle allows single-hand operation, which speeds up repetitive pin insertion and removal tasks on the shop floor or in the field. Its stainless steel construction makes it appropriate for wet, washdown, or mildly corrosive environments where carbon steel pins would deteriorate prematurely.

Key Features

• 17-4 stainless steel construction for corrosion resistance and high tensile strength
• 5/8 inch pin diameter for secure engagement in standard-tolerance bores
• 2-1/2 inch usable length accommodates a range of assembly thicknesses
• Ring handle enables fast, tool-free insertion and removal with one hand
• Bright finish provides clean appearance and consistent surface for low-friction operation
• Inch-system sizing for direct compatibility with standard imperial tooling and fixtures

Compatibility

Designed as a standard imperial quick-release pin for use in mechanical fixtures, jigs, agricultural implements, and industrial equipment requiring a 5/8 inch pin bore and approximately 2-1/2 inch usable engagement depth.

Installation Notes

Installation requires no special tools — insert the pin through aligned bores and the spring-loaded detent ball locks it in place. Always verify the bore diameter and usable length against the assembly before installation to ensure proper seating and load transfer. De-energize or relieve any hydraulic, pneumatic, or mechanical load on the assembly before inserting or removing the pin. Periodic inspection of the detent mechanism and bore wear is recommended in high-cycle applications.
