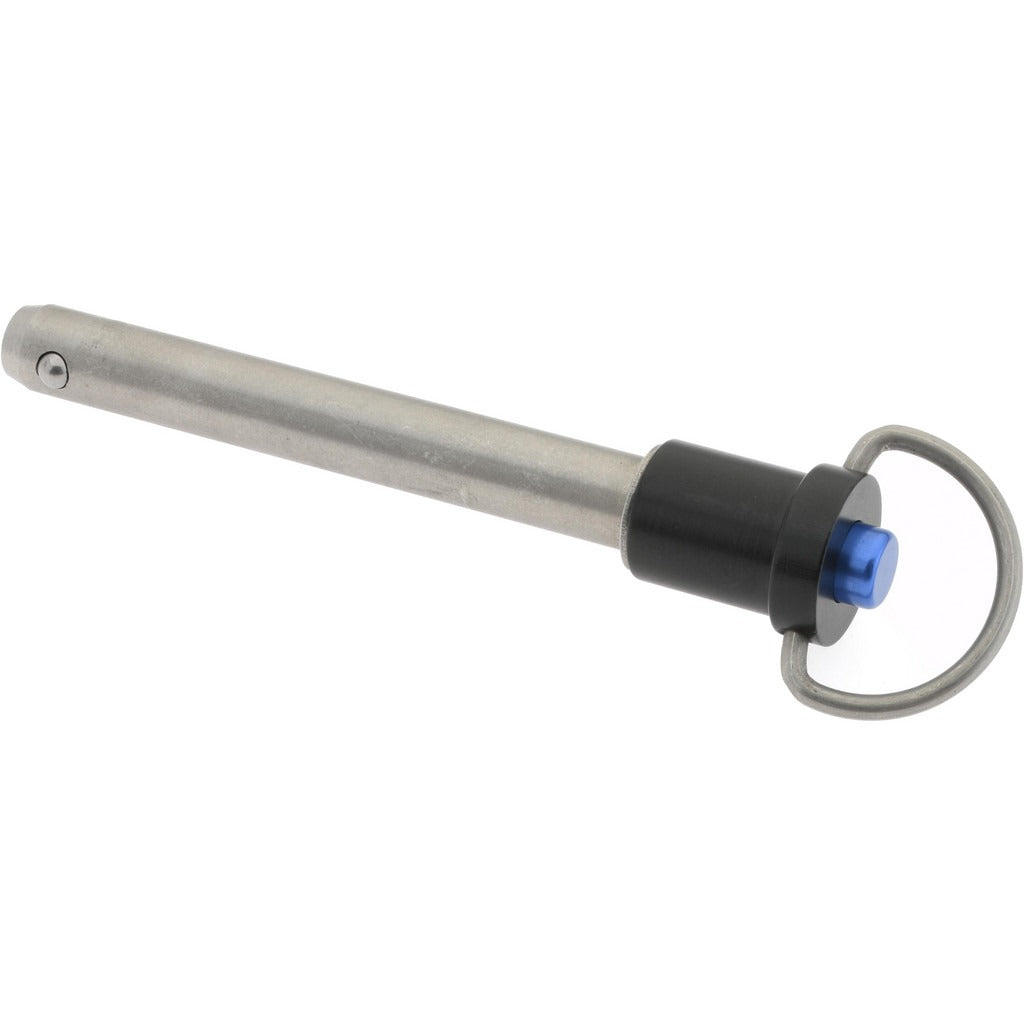

Gibraltar LBH-SS7133 Quick-release Pin 3/8 in Ring Handle

Product Description

The GIBRALTAR LBH-SS7133 is a ring-handle quick-release pin designed for fast, tool-free insertion and removal in mechanical assemblies, fixtures, and industrial equipment. Constructed from 17-4 stainless steel with a bright finish, this pin delivers corrosion resistance and durability in demanding environments. It measures 3/8 inches in diameter with a 2-1/2 inch usable length, making it well suited for applications where secure, repeatable pinning is required without threaded fasteners. Maintenance technicians, fabricators, and equipment service professionals install this type of pin in a wide range of industrial and trade settings.

This quick-release pin is appropriate for use in agricultural equipment, material handling systems, industrial machinery, jigs, fixtures, and structural assemblies where frequent component removal is necessary. The ring handle allows single-hand operation, speeding up changeovers and routine service. Its inch-measurement system and standard 3/8 inch diameter make it compatible with a broad range of existing pin bores in fabricated and OEM equipment.

Key Features

• 17-4 stainless steel construction for corrosion resistance and high strength
• Ring handle enables fast, tool-free single-hand operation
• Bright finish for clean appearance and ease of inspection
• 3/8 inch pin diameter fits standard pin-bore applications
• 2-1/2 inch usable length accommodates typical assembly thicknesses

Compatibility

Designed as a standard-geometry quick-release pin for use in machinery, jigs, fixtures, and industrial equipment with 3/8 inch pin-bore receptacles.

Installation Notes

Installation requires no tools — align the pin with the mating bore, insert fully until the detent ball seats, and confirm the ring is accessible for removal. De-energize or lock out equipment before servicing any pinned assembly per applicable safety procedures. Inspect the detent ball and spring mechanism periodically for wear or debris that could affect retention. Removal is accomplished by pulling the ring while withdrawing the pin axially from the bore.
