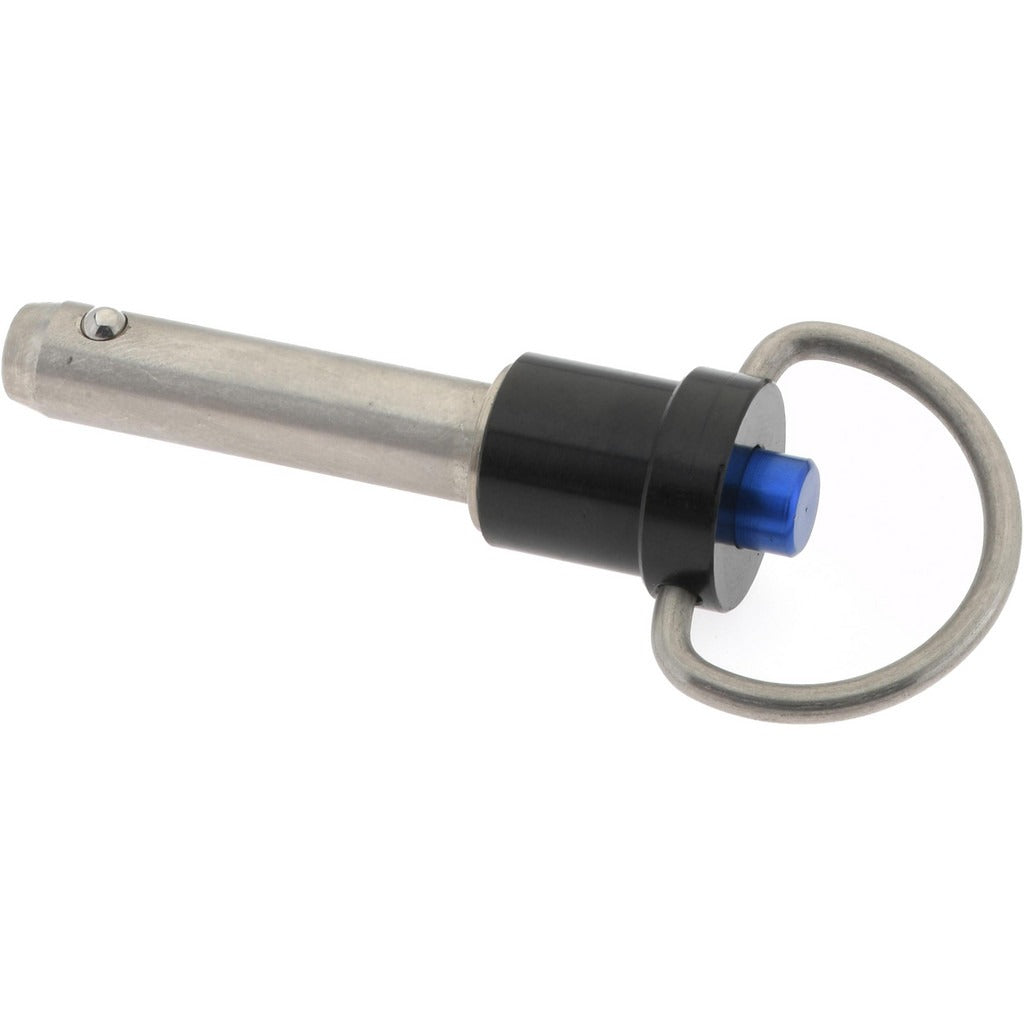

Gibraltar LBH-SS3112 Quick-release Pin 5/16 in 304 Stainless

Product Description

The GIBRALTAR LBH-SS3112 is a ring-handle quick-release pin machined from 304 stainless steel with a bright finish. It features a 5/16-inch pin diameter, 1 inch of usable length, and a 2.25-inch overall length. The ring handle allows fast, tool-free insertion and withdrawal in applications where frequent disassembly is required. The 304 stainless steel construction resists corrosion in wet, outdoor, and chemically active environments. This pin is suited for maintenance technicians, fabricators, and industrial service professionals working on equipment that requires regular access or adjustment.

This quick-release pin is used in light to medium-duty fastening applications where components must be pinned and released repeatedly without tools. Typical installations include equipment guards, hinged panels, linkages, fixtures, and jigs across HVAC, mechanical, agricultural, and general industrial settings. The ring handle provides a positive grip for removal even in tight or gloved-hand conditions. It is sold and packaged individually.

Key Features

• Tool-free quick-release design for fast disassembly and reassembly
• Ring handle provides positive grip, including gloved-hand operation
• 304 stainless steel construction for corrosion resistance in wet and outdoor environments
• Bright finish on pin surface
• 5/16-inch pin diameter with 1 inch usable length and 2.25-inch overall length
• Inch-system measurement; sold individually

Compatibility

Designed as a standard inch-system quick-release pin for equipment panels, guards, hinged assemblies, and mechanical linkages requiring a 5/16-inch pin diameter hole pattern.

Installation Notes

Installation requires no special tools; the pin inserts into a matching 5/16-inch diameter hole and the spring-loaded ball detent locks it in place until the ring is pulled. Verify the hole diameter and material thickness are compatible with the 1-inch usable length before installation. In corrosive or high-vibration environments, inspect the detent mechanism periodically for wear or debris. Always depressurize or de-energize connected equipment before removing or installing pins on live assemblies.
