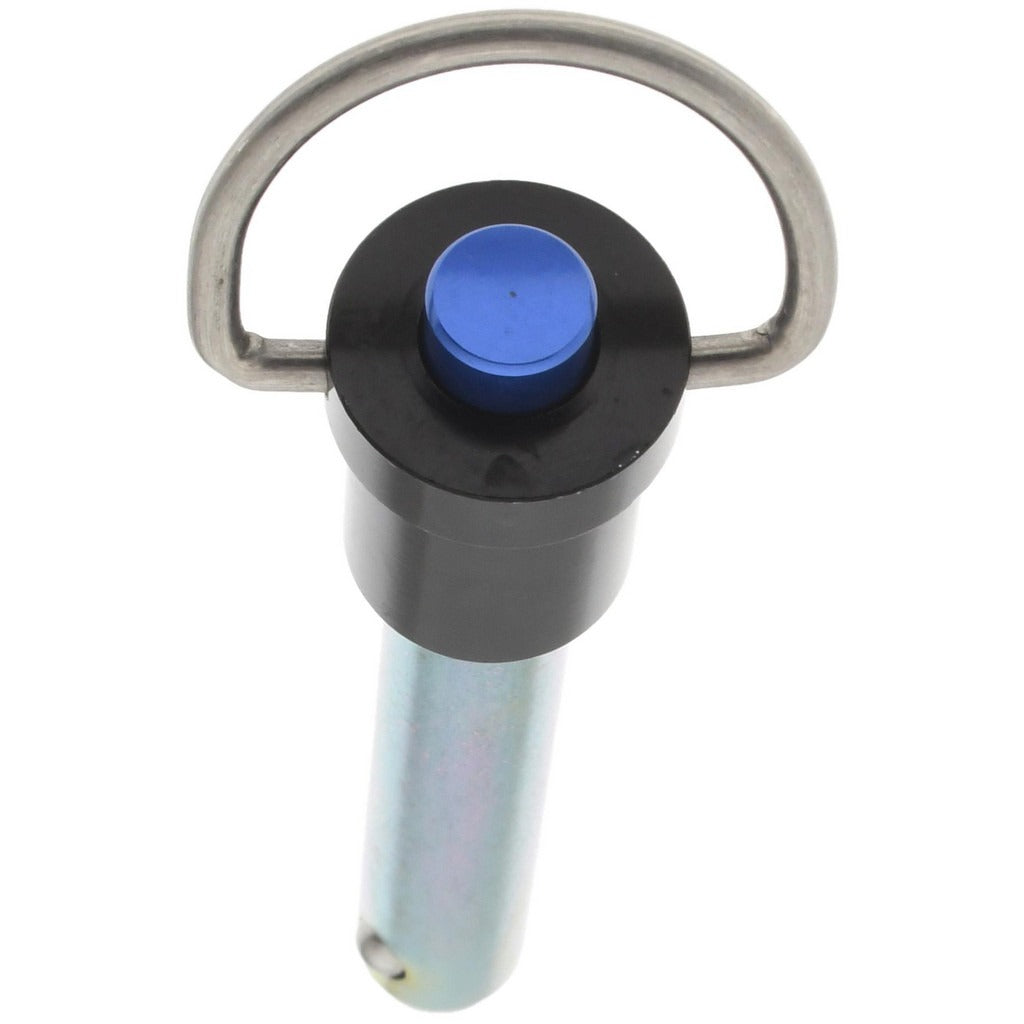

Gibraltar LBH-135 Quick-release Pin Ring Handle 3/8 in

Product Description

The GIBRALTAR LBH-135 is a ring-handle quick-release pin designed for fast, tool-free insertion and removal in mechanical assemblies, jigs, fixtures, and equipment linkages. Machined from 4130 alloy steel with a zinc-plated finish for corrosion resistance, this pin measures 3/8 inches in diameter with a usable length of 1.75 inches. The ring handle allows single-hand operation, making it well suited for applications where frequent pin removal is required. It is a standard inch-measurement fastener used across manufacturing, maintenance, and general industrial settings.

This quick-release pin fits applications where a positive, removable connection is needed without threading or tooling. Typical uses include hinged panels, safety guards, clevis linkages, agricultural equipment, and maintenance access points. The ring-handle design is particularly useful in confined spaces or high-cycle operations where speed of assembly and disassembly matters. This is a single-piece fastener sold in a package quantity of one.

Key Features

• Ring handle enables tool-free, single-hand pin removal
• 4130 alloy steel construction for strength and durability
• Zinc-plated finish provides corrosion resistance
• 3/8 inches pin diameter with 1.75 inches usable length
• Inch-measurement standard sizing for broad hardware compatibility
• Lightweight at 0.1 pounds — minimal added weight to assemblies

Compatibility

Designed as a standard inch-series quick-release pin for use in mechanical assemblies, fixtures, and equipment that accept a 3/8 inches diameter ring-handle retaining pin.

Installation Notes

Installation requires no special tools — align the pin with the mating hole and push through until the spring-loaded detent engages. Before removal in load-bearing or safety-critical applications, ensure the assembly is in a stable, unloaded position. Inspect the detent ball and spring for wear during routine maintenance. Follow applicable equipment manufacturer guidelines and relevant ANSI or ASME machinery safety standards when using quick-release pins in structural or safety-guard applications.
