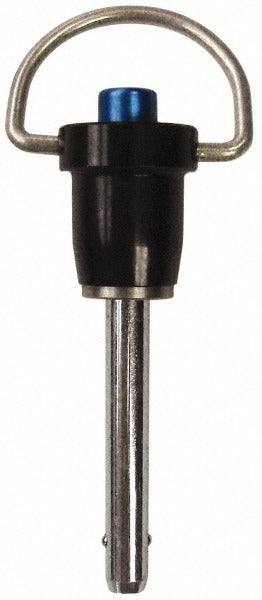

Gibraltar LBH-129 Quick-release Pin 5/16 in 4130 Steel

Product Description

The GIBRALTAR LBH-129 is a quick-release pin with a ring handle, designed for fast, tool-free engagement and disengagement in mechanical assemblies, jigs, fixtures, and industrial equipment. The pin measures 5/16 inches in diameter with a 4-inch usable length and a 5.25-inch overall length. Constructed from 4130 alloy steel with a zinc-plated finish, it delivers solid corrosion resistance and strength suited to light industrial and maintenance applications. The ring handle allows for rapid single-hand operation without additional tooling, making it a reliable component for recurring adjustment points or removable subassemblies.

This quick-release pin is commonly used in fabrication shops, maintenance environments, and mechanical assembly applications where components need to be frequently removed or repositioned. It is appropriate for use in fixtures, carts, frames, guards, and other assemblies requiring a positive-locking removable pin. The inch-system dimensions make it a direct fit for standard inch-series bored holes and clevis-style connections found throughout general industrial and trade settings.

Key Features

• Ring handle design allows fast, tool-free pin removal and insertion
• 4130 alloy steel construction for reliable strength in light industrial use
• Zinc-plated finish provides corrosion resistance in typical shop environments
• 5/16 inch pin diameter fits standard inch-series bored holes and clevis connections
• 4-inch usable length accommodates a range of fixture and assembly thicknesses
• Single-unit packaging with no minimum order requirement beyond one piece

Compatibility

Designed as a standard inch-series quick-release pin suitable for fixtures, mechanical assemblies, and removable subassemblies requiring a 5/16 inch diameter pin with 4 inches of usable engagement length.

Installation Notes

Installation is performed by hand with no specialized tools required. Confirm the receiving hole diameter is properly sized for a 5/16 inch pin before insertion to ensure proper engagement of the locking mechanism. De-tension or remove any load bearing on the pin before pulling the ring handle to release. Follow applicable facility safety procedures when working on machinery or powered equipment.
