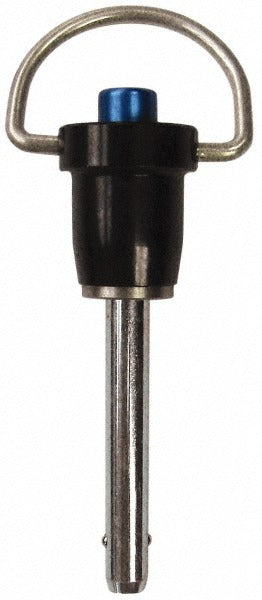

Gibraltar LBH-126 Quick-release Pin 5/16 in 4130 Steel

Product Description

The GIBRALTAR LBH-126 is a ring-handle quick-release pin designed for fast, tool-free pin retention in mechanical assemblies, fixtures, and fabricated components. The pin measures 5/16 inch in diameter with a 2.5-inch usable length and a 3.75-inch overall length. Constructed from 4130 alloy steel with a zinc-plated finish, this pin delivers solid corrosion resistance and the structural integrity required for repetitive connect-and-release applications. The ring handle allows single-hand operation, making it a reliable choice for applications where frequent disassembly is part of normal workflow.

The LBH-126 is suited for use in industrial fabrication, maintenance fixtures, agricultural equipment, and general mechanical assemblies where a positive-locking pin with quick removal capability is needed. It is commonly installed by millwrights, maintenance technicians, welders, and fabricators working on jigs, clevis connections, linkage assemblies, and hinged panels. The inch-based dimensions make it a direct fit for standard imperial hardware applications.

Key Features

• 5/16 inch pin diameter with 2.5-inch usable length for common imperial hardware applications
• 3.75-inch overall length accommodates standard clevis and bracket thicknesses
• 4130 alloy steel construction for high strength and durability under cyclic loading
• Zinc-plated finish provides corrosion resistance in light-duty wet or outdoor exposure
• Ring handle enables fast, tool-free installation and removal with one hand
• Ships as single-piece unit, sold individually

Compatibility

Designed as an OEM-style replacement or direct-fit option for standard imperial quick-release pin applications requiring a 5/16 inch diameter pin with a 2.5-inch usable length in inch-system assemblies.

Installation Notes

Installation requires no special tools. Verify that the receiving hole diameter and grip range match the pin diameter and usable length before installation. Inspect the locking detent mechanism and ring handle for wear or deformation before each use in load-bearing or safety-critical applications. Depressurize or de-energize any associated system before removing or replacing pins in live mechanical assemblies.
