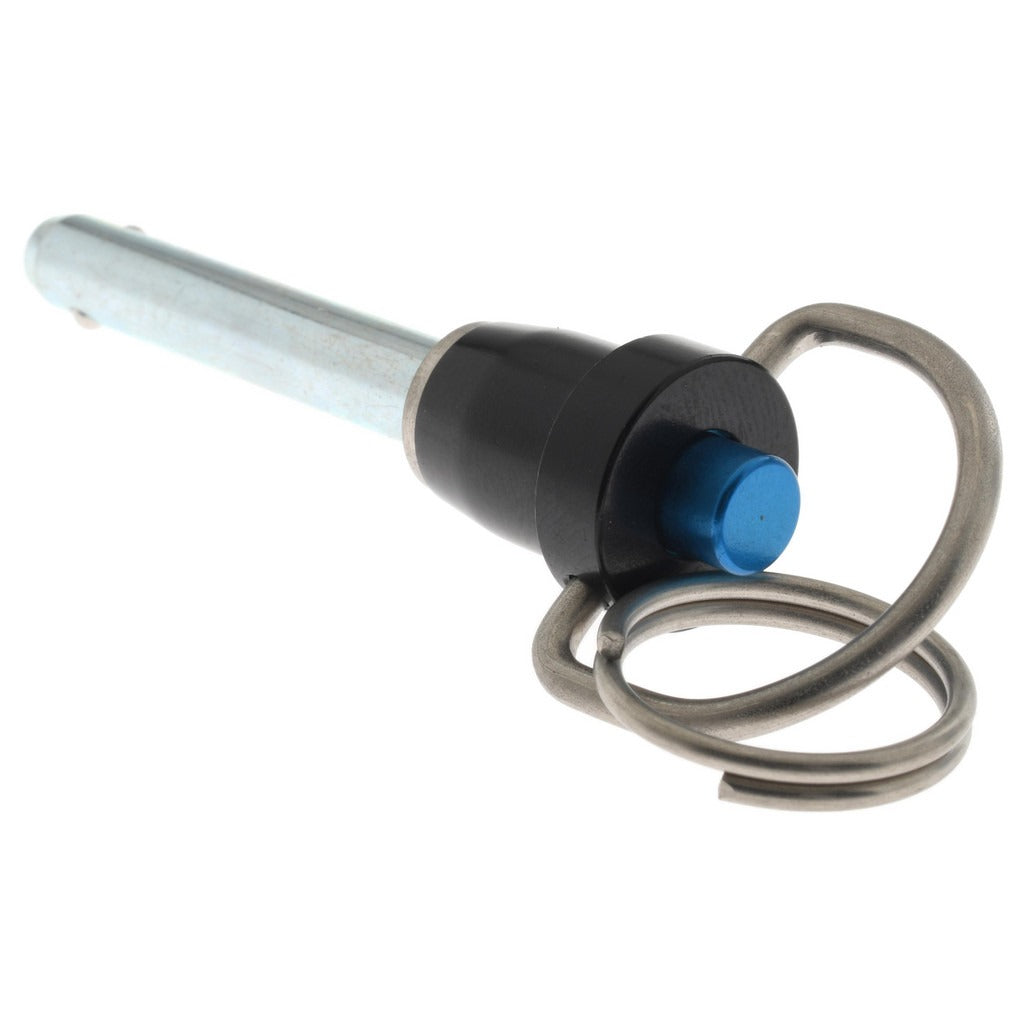

Gibraltar LBH-113 Quick-release Pin Ring Handle 1/4 in

Product Description

The GIBRALTAR LBH-113 is a ring-handle quick-release pin manufactured from 4130 grade steel with a zinc-plated finish for corrosion resistance. The pin measures 0.25 inches in diameter with a usable length of 1.25 inches. Quick-release pins of this type allow for fast, tool-free removal of components in mechanical assemblies, jigs, fixtures, and industrial equipment. The ring handle provides a secure grip for hand operation, and the zinc plating adds a layer of surface protection in light-duty environments. This pin is sold individually.

This quick-release pin is suited for use in light fabrication, machine tool setups, maintenance fixtures, and general industrial assembly applications. It is commonly used where components must be frequently removed and reinstalled without tools — such as safety guards, removable panels, linkages, and alignment fixtures. The 0.25-inch diameter and 1.25-inch usable length make it appropriate for medium-duty fastening points in compact assemblies. Machinists, maintenance technicians, and fabricators are the typical end users.

Key Features

• 0.25-inch pin diameter for use in standard 1/4-inch bored holes
• 1.25-inch usable length for through-hole fastening in moderate material thickness
• 4130 alloy steel construction for strength and wear resistance
• Zinc-plated finish provides basic corrosion protection
• Ring handle allows fast, tool-free installation and removal
• Sold individually, no minimum order quantity beyond single unit

Compatibility

Designed as a direct-fit replacement or supplemental quick-release pin for fixtures, jigs, and mechanical assemblies requiring a 0.25-inch diameter ring-handle detent pin in inch-measurement applications.

Installation Notes

Installation requires a through-hole or receiver bored to accept a 0.25-inch diameter pin. Ensure the mating hole is clean and free of burrs before insertion. Depress the detent ball to insert or remove the pin; never force the pin into an undersized hole. No special tools are required for normal use, though proper hole sizing should be confirmed with calibrated gauges during fixture setup.
