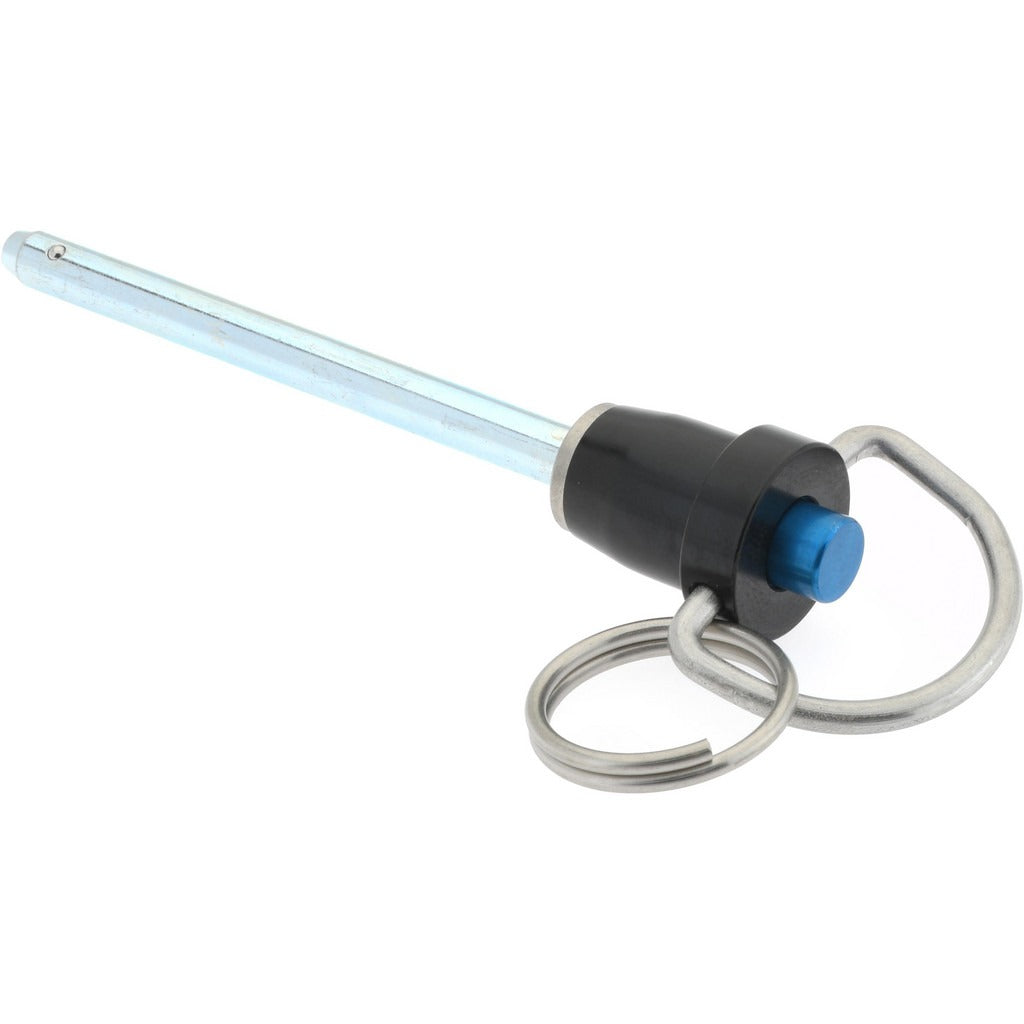

Gibraltar LBH-105 Quick-release Pin 3/16 in Ring Handle

Product Description

The GIBRALTAR LBH-105 is a quick-release pin with a ring handle, designed for fast, tool-free fastening and release in mechanical assemblies, jigs, fixtures, and industrial equipment. The pin measures 3/16 inch in diameter with a 2-inch usable length and is manufactured from 4130 alloy steel with a zinc-plated finish for corrosion resistance. The ring handle allows single-hand operation, making it practical in tight spaces or during frequent adjustment cycles. This type of fastener is commonly installed by millwrights, machine technicians, and maintenance personnel across a range of industrial and commercial applications.

The LBH-105 is suited for use in fixtures, machine guards, tooling setups, and assemblies where components need to be removed and reinstalled repeatedly without tools. The compact diameter and 2-inch usable length make it a practical choice for light-duty to medium-duty mechanical connections where a permanent threaded fastener would slow down workflow. Its inch-system sizing is standard across most North American fabrication and maintenance environments.

Key Features

• 3/16 inch pin diameter with 2 inch usable length for light to medium fastening applications
• 4130 alloy steel construction for strength and durability
• Zinc-plated finish provides corrosion resistance in typical shop and industrial environments
• Ring handle enables fast, tool-free installation and removal
• Inch-system sizing for compatibility with standard North American hardware

Compatibility

Designed as an OEM-style replacement or direct-fit quick-release pin for fixtures, jigs, machine guards, and mechanical assemblies requiring a 3/16 inch diameter pin with a 2-inch usable length.

Installation Notes

Installation requires no special tools — align the pin with the mating hole and push through until the locking detent engages. Before servicing any machine or assembly, de-energize and lock out the equipment per applicable OSHA lockout/tagout procedures. Ensure the hole diameter in the mating components is sized to accept a 3/16 inch pin with proper clearance. Do not exceed the load rating of the pin in shear or tension applications without consulting manufacturer load data.
