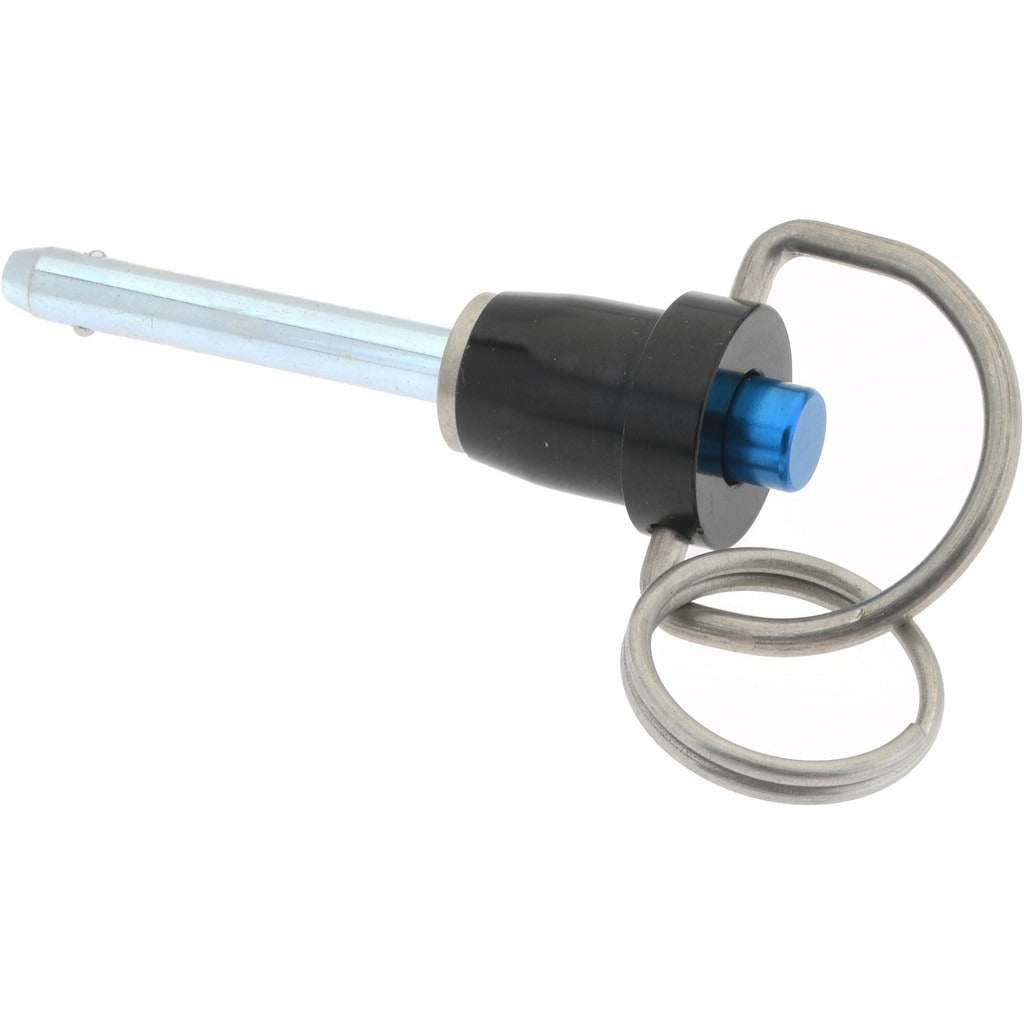

Gibraltar LBH-102 Quick-release Pin Ring Handle 3/16 in

Product Description

The GIBRALTAR LBH-102 is a quick-release pin with a ring handle, designed for fast, tool-free insertion and removal in mechanical assemblies and structural connections. The pin body is machined from 4130 alloy steel and finished with a zinc plating for corrosion resistance. It measures 3/16 inches in diameter with 1 inch of usable length. The compact ring handle allows single-hand operation, making it practical in tight or repetitive-access applications. Machinists, fabricators, millwrights, and maintenance technicians commonly specify this pin where secure but removable connections are required.

This pin is suited for light-duty mechanical and structural applications requiring frequent disassembly. Typical uses include pin-retained linkages, fixtures, jigs, cotter pin substitutes, and equipment access panels. Its inch-system dimensions make it compatible with standard imperial hardware configurations. The small diameter and short usable length fit applications where space is limited and a full-size clevis or bolt assembly is not practical.

Key Features

• 4130 alloy steel construction for strength in mechanical pin applications
• Zinc-plated finish provides corrosion resistance in general shop and field environments
• Ring handle design enables tool-free, single-hand operation
• 3/16 inch pin diameter fits standard imperial hardware configurations
• 1 inch usable length for compact, space-restricted installations
• Sold individually — package quantity of 1

Compatibility

Designed as an OEM-style or aftermarket quick-release pin for inch-system mechanical assemblies requiring a 3/16 inch diameter pin with 1 inch of usable engagement length.

Installation Notes

Installation requires no special tools — align the pin hole in the assembly and push the pin through by hand until the retaining detent engages. To remove, pull the ring handle to retract the locking ball or detent and withdraw the pin. Verify hole diameter and usable length requirements match the assembly before installation. Inspect the retaining detent mechanism for wear or deformation before each use in load-bearing or safety-critical connections.
