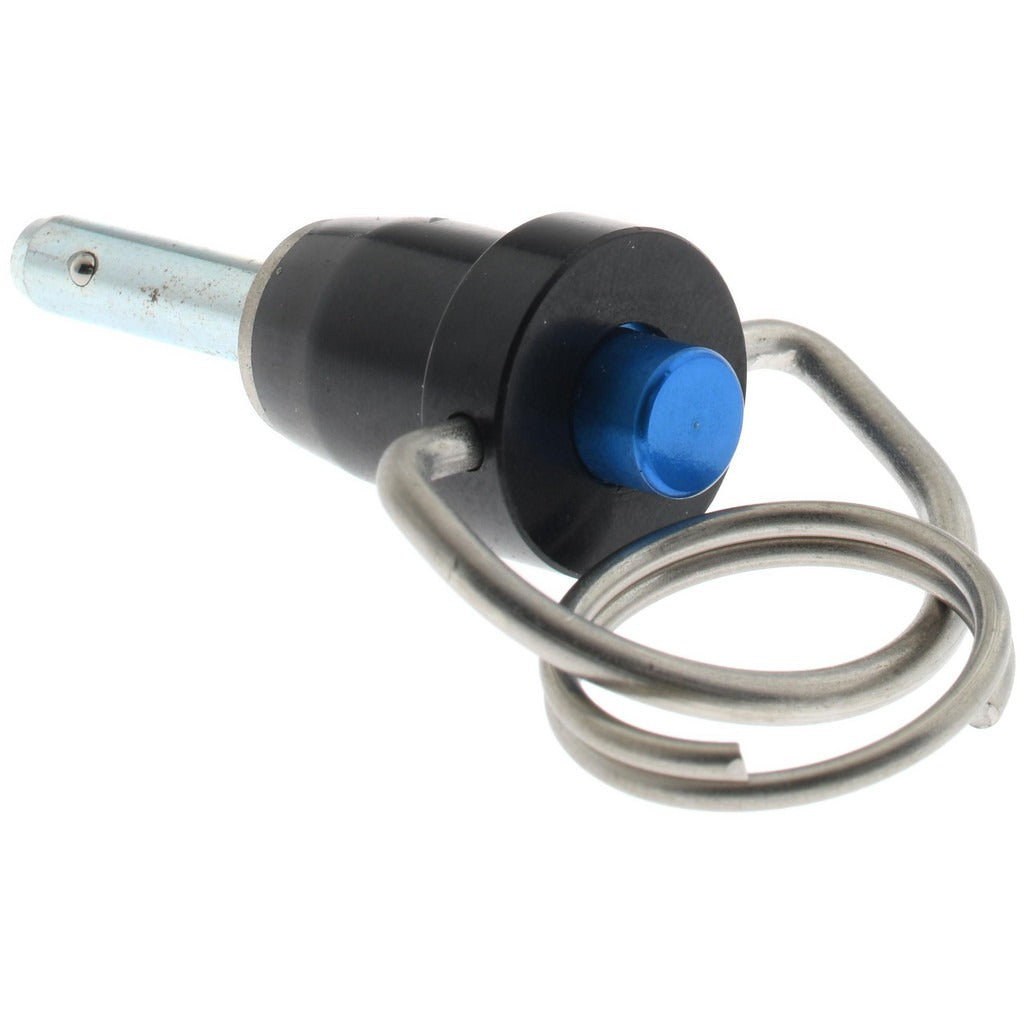

Gibraltar LBH-100 Quick-release Pin 3/16 in Ring Handle

Product Description

The GIBRALTAR LBH-100 is a ring-handle quick-release pin designed for fast, tool-free removal in mechanical assembly and maintenance applications. Machined from 4130 alloy steel with a zinc-plated finish for corrosion resistance, this pin measures 3/16 inches in diameter with 1/2 inch of usable length. The ring handle allows single-handed operation, making it well suited for equipment panels, guards, fixtures, and other components that require frequent access. Tradespeople and maintenance technicians use quick-release pins like this one to speed up routine service without sacrificing secure retention during operation.

This pin fits light-duty to medium-duty applications where a compact, removable fastener is needed. Common uses include securing access panels, safety guards, jigs, fixtures, and mechanical linkages in industrial, HVAC, and general maintenance settings. The short 1/2 inch usable length makes it appropriate for thin-stock applications where a longer pin would not seat properly. It is sold individually and is well suited for replacement or low-quantity procurement.

Key Features

• Ring handle allows fast, tool-free pin removal with one hand
• 4130 alloy steel construction provides strength for mechanical fastening applications
• Zinc-plated finish adds corrosion resistance for light indoor and outdoor exposure
• 3/16 inches pin diameter suits compact fastening points and thin-wall components
• 1/2 inch usable length designed for thin-stock and close-tolerance installations

Compatibility

Designed as an OEM-style replacement or service pin for light-duty mechanical assemblies requiring a 3/16 inch diameter quick-release ring-handle pin with 1/2 inch usable length.

Installation Notes

Installation requires no special tools — align the pin through the mating holes and seat fully until the detent engages. Verify that the usable length matches the grip thickness of the assembly before installation. Ensure all energy sources are isolated and moving parts are stopped before removing or replacing quick-release pins in live equipment. Follow applicable OSHA lockout/tagout procedures when servicing machinery.
