Gibraltar KNL-2-PT-G Knob Handle Plunger 5/16-18

Product Description

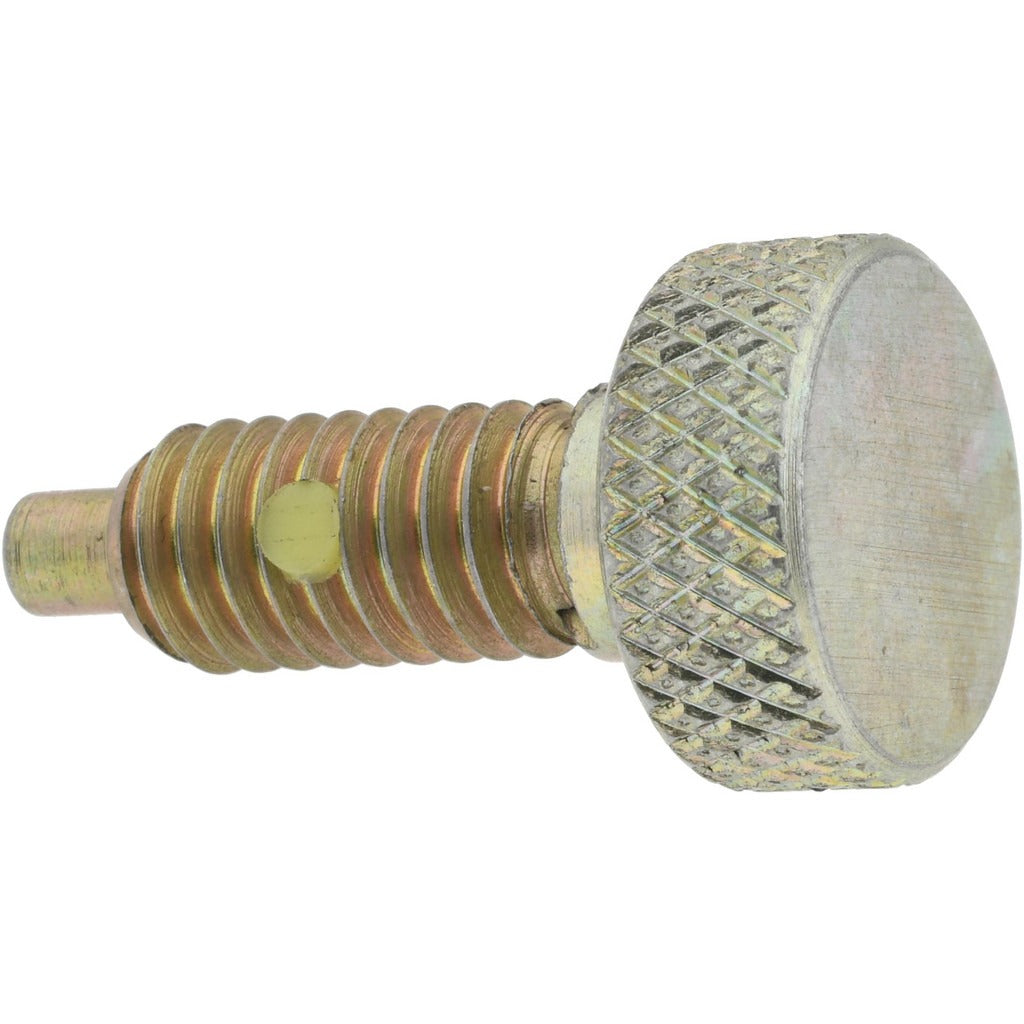

The GIBRALTAR KNL-2-PT-G is a non-locking knob handle plunger designed for indexing, positioning, and light clamping applications in industrial and mechanical assemblies. It features a 5/16-18 threaded shank with a 0.625-inch thread length and a knurled knob head for manual actuation without tools. The spring-loaded steel plunger delivers an initial end force of 1 pound and a final end force of 6 pounds, making it suitable for applications requiring repeatable, low-force positioning. The body measures 0.76 inches in length with a maximum plunger diameter of 0.154 inches. A zinc gold chromate finish provides corrosion resistance. Installed by machinists, maintenance technicians, and assembly professionals.

This plunger is used in fixtures, jigs, machine tool components, and industrial equipment where a manually retractable locating pin is needed. The knurled knob allows hand operation in confined spaces without a wrench. With a plunger projection of 0.188 inches and a plunger length of 1 inch, it fits standard threaded bosses in light-duty positioning and detent applications. The locking element engages the threaded bore to secure the assembly in place once installed.

Key Features

• Non-locking spring plunger with 1 pound initial and 6 pound final end force
• Knurled knob head allows tool-free manual operation
• 5/16-18 thread size with 0.625-inch thread length for standard threaded bores
• Steel construction with zinc gold chromate finish for corrosion resistance
• Plunger projection of 0.188 inches for precise, repeatable indexing
• Compact body length of 0.76 inches suits tight installation envelopes

Compatibility

Designed as an OEM-style replacement or direct-fit component for industrial fixtures, jigs, and machine assemblies using a 5/16-18 threaded bore and requiring a non-locking spring plunger with a knob handle.

Installation Notes

Installation is performed by threading the plunger body into a tapped 5/16-18 bore by hand or with a wrench on the knob flats until the shoulder seats. De-energize or lock out any machinery before installing or replacing plungers in live equipment. Verify bore thread condition and depth before installation to prevent cross-threading. Do not exceed the rated end force range by substituting springs or modifying the plunger body.
