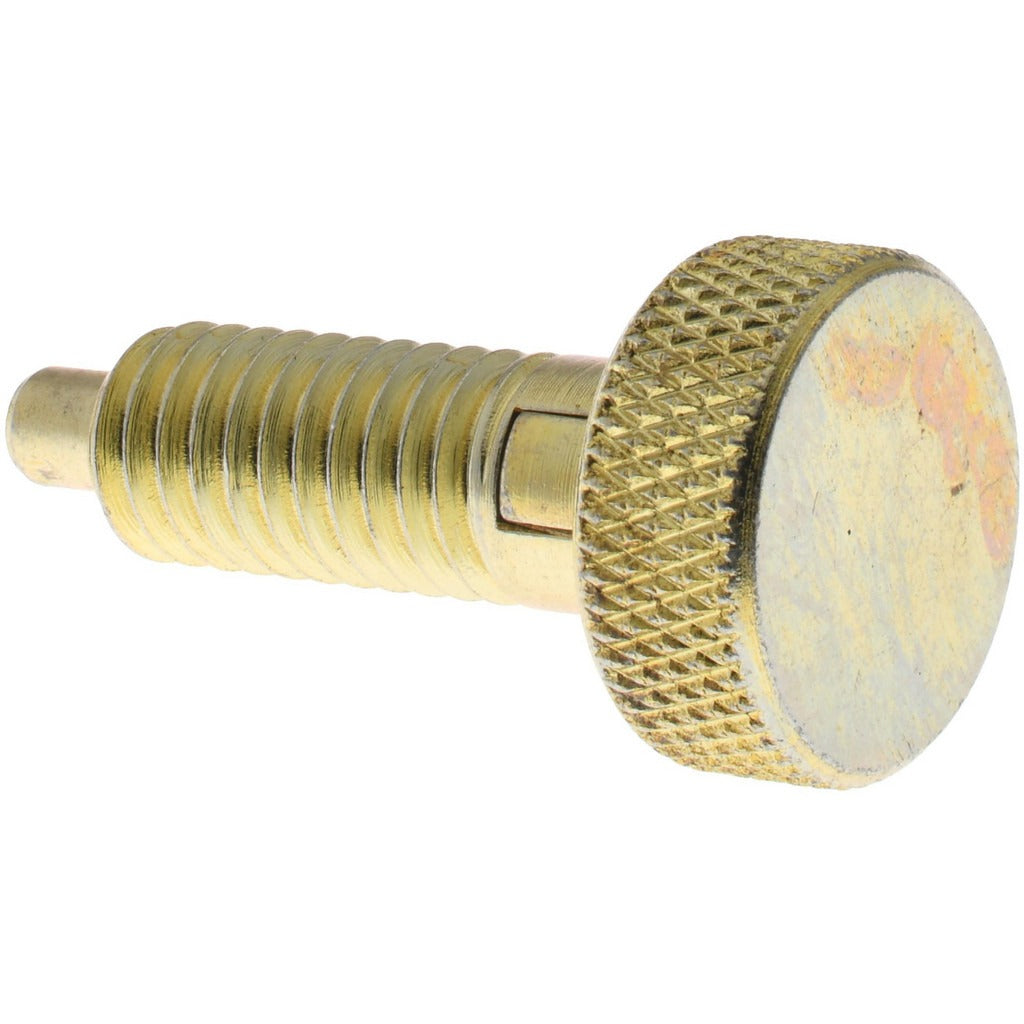

Gibraltar KLS-3-G Locking Knob Plunger 3/8-16 Thread

Product Description

The GIBRALTAR KLS-3-G is a locking knob handle plunger designed for indexing, positioning, and holding applications in industrial and mechanical assemblies. It features a 3/8-16 threaded shank with a 0.75-inch thread length and a knurled locking knob that allows controlled engagement and release of the spring-loaded plunger. The plunger delivers an initial end force of 0.5 pounds and a final end force of 3 pounds, making it suited for light-duty locking and locating tasks. Constructed from steel with a gold zinc chromate finish, this plunger is installed by machinists, millwrights, and mechanical assemblers in equipment panels, fixtures, and jigs.

The KLS-3-G is used in industrial machinery, fabrication fixtures, and mechanical assemblies where a repeatable, hand-operated locking plunger is required. The knurled knob provides a secure grip for tool-free operation in both production and maintenance environments. This style of plunger is commonly found in sheet metal enclosures, machine guards, and adjustable positioning fixtures across light manufacturing and general industrial settings.

Key Features

• Locking knob plunger design allows controlled plunger engagement and release by hand
• Knurled knob style provides positive grip without tools
• 3/8-16 threaded shank with 0.75-inch thread length for standard installation
• Initial end force of 0.5 pounds rising to final end force of 3 pounds
• Steel construction with gold zinc chromate finish for corrosion resistance
• Compact plunger length of 1.26 inches suits space-constrained assemblies

Compatibility

Designed as an OEM-style replacement or new-installation locking knob plunger for industrial fixtures, equipment panels, and mechanical assemblies requiring a 3/8-16 threaded plunger mount.

Installation Notes

Installation is typically performed by machinists or mechanical assemblers using standard hand tools. Thread the shank into a tapped 3/8-16 hole and torque to the assembly specification for the host fixture. Ensure the mounting surface is clean and free of debris before installation. De-energize or lock out any powered equipment before servicing assemblies containing this plunger.
