Gibraltar IPG-112-G Indexing Plunger M10x1 Knob Handle Style a

Product Description

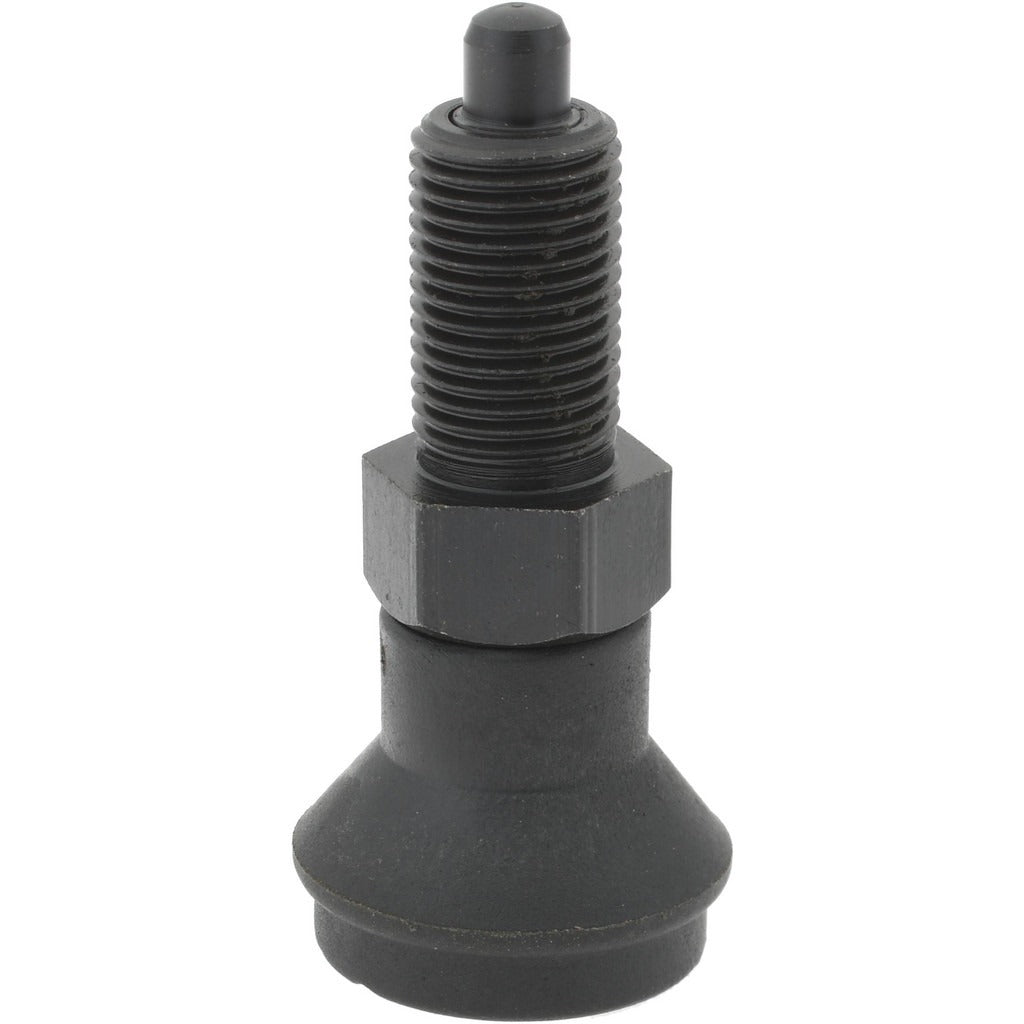

The GIBRALTAR IPG-112-G is a Style A knob-handle indexing plunger designed for positioning, locating, and locking applications in industrial and mechanical assemblies. The plunger features an M10x1 threaded body with a 15mm thread length, a 5mm diameter non-locking plunger tip, and a 17mm body length for a 47mm overall assembly length. Constructed from steel with a black finish, this unit delivers an initial end force of 5 newtons and a final end force of 12 newtons. The 21mm knob diameter provides a secure hand grip for repeated engagement and release without tools. Licensed HVAC, plumbing, and mechanical trades as well as industrial maintenance technicians install components of this type.

This indexing plunger is suited for use in equipment panels, jigs, fixtures, machine guards, and adjustable assemblies where repeatable manual positioning is required. The non-locking, spring-loaded plunger retracts on pull and seats under spring pressure, making it appropriate for applications requiring frequent repositioning. The 13mm distance across nut flats and 7mm nut height allow for standard wrench installation into threaded receiver holes. No lock nut is included with this unit.

Key Features

• M10x1 thread with 15mm thread length for direct installation into tapped holes
• Non-locking Style A plunger with 5mm diameter tip and 5mm projection
• Initial end force of 5 newtons, final end force of 12 newtons for consistent spring resistance
• 21mm knob diameter for tool-free manual operation
• Steel construction with black finish for durability in industrial environments
• 47mm overall length with 17mm body length for compact installation clearance

Compatibility

Designed as a standard M10x1 threaded indexing plunger for use in any assembly or fixture with a compatible tapped receiver hole accepting M10x1 thread pitch.

Installation Notes

Installation is performed by threading the plunger body into a pre-tapped M10x1 receiver hole using a wrench on the 13mm nut flats. Ensure the mating hole depth and plunger projection are compatible before final assembly. De-energize and lock out any powered equipment before servicing or replacing indexing hardware. No lock nut is included; use thread-locking compound or an external nut if vibration resistance is required.
