Gibraltar HJS-575-G Adjustable Locating Screw 10-32

Product Description

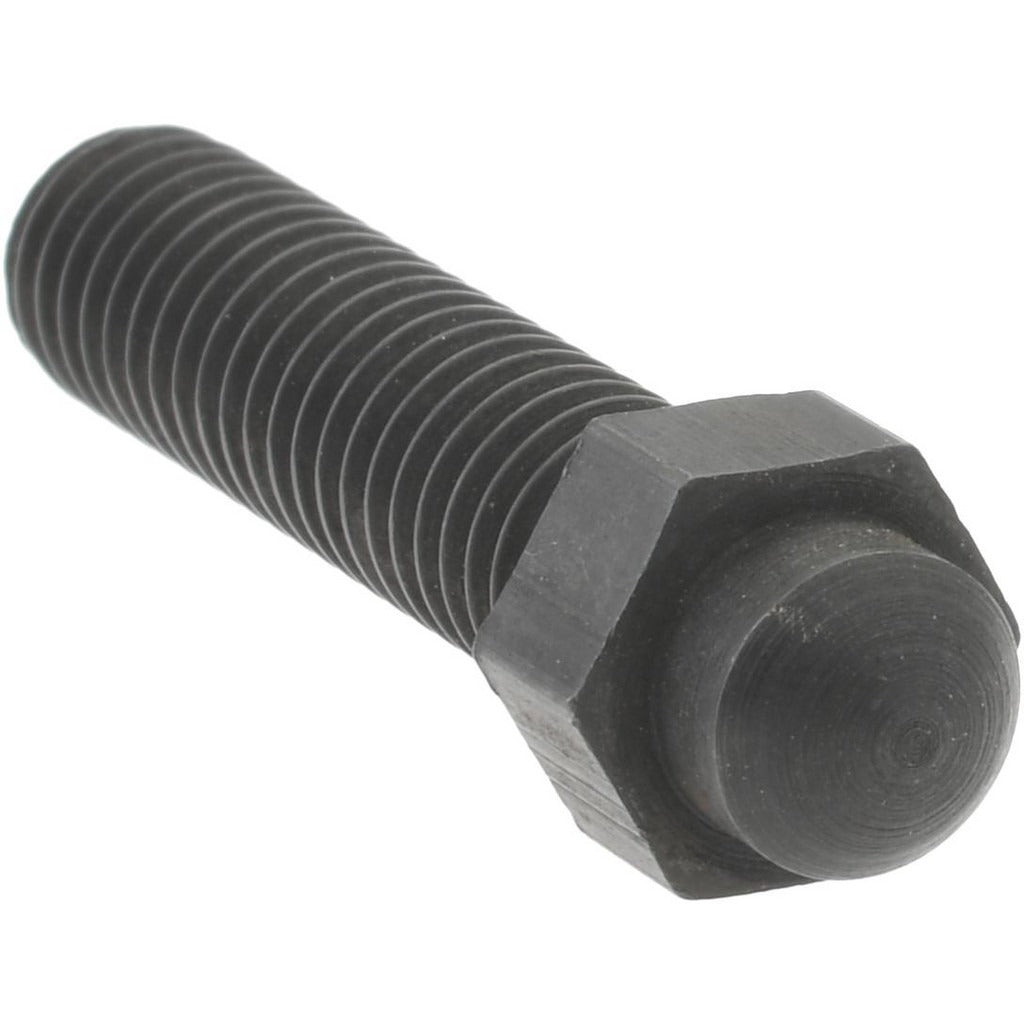

The GIBRALTAR HJS-575-G is an adjustable locating screw designed to provide precise, repeatable part positioning in workholding and fixture applications. Threaded 10-32 with a 1 inch overall length, this screw features a 1/4 inch width across flats and a 1/8 inch hex height for easy adjustment with standard hex tooling. Constructed from steel with a black oxide finish, it delivers corrosion resistance suitable for shop and production environments. Machinists, toolmakers, and fixture builders install this type of locating hardware during setup and workholding assembly operations.

This locating screw is suited for use in jigs, fixtures, and precision workholding setups found in machine shops, manufacturing facilities, and toolroom environments. Its compact 10-32 thread size makes it a practical choice for lighter-duty locating applications where fine adjustment and a secure holding position are required. The black oxide finish reduces surface reflectivity and provides mild protection against shop-environment moisture exposure.

Key Features

• 10-32 thread size for compatibility with standard tapped locating screw holes in fixtures
• 1 inch overall length suitable for low-profile workholding setups
• 1/4 inch width across flats allows adjustment with common hex wrenches
• 1/8 inch hex height keeps the fastener low-profile within the fixture body
• Steel construction provides strength and durability under repeated adjustment cycles
• Black oxide finish offers mild corrosion resistance and reduced glare in precision work environments

Compatibility

Designed as an OEM-style replacement or direct-use locating screw for jigs, fixtures, and workholding assemblies that accept a 10-32 threaded adjustable locating screw.

Installation Notes

Installation is typically performed by machinists or toolmakers during fixture build or setup. Ensure the receiving threaded hole is clean and free of debris before threading the screw into position. Use an appropriately sized hex wrench sized to the 1/4 inch flats to adjust and lock the screw to the desired locating depth. Power down and secure any associated machinery before servicing or adjusting workholding fixtures.
