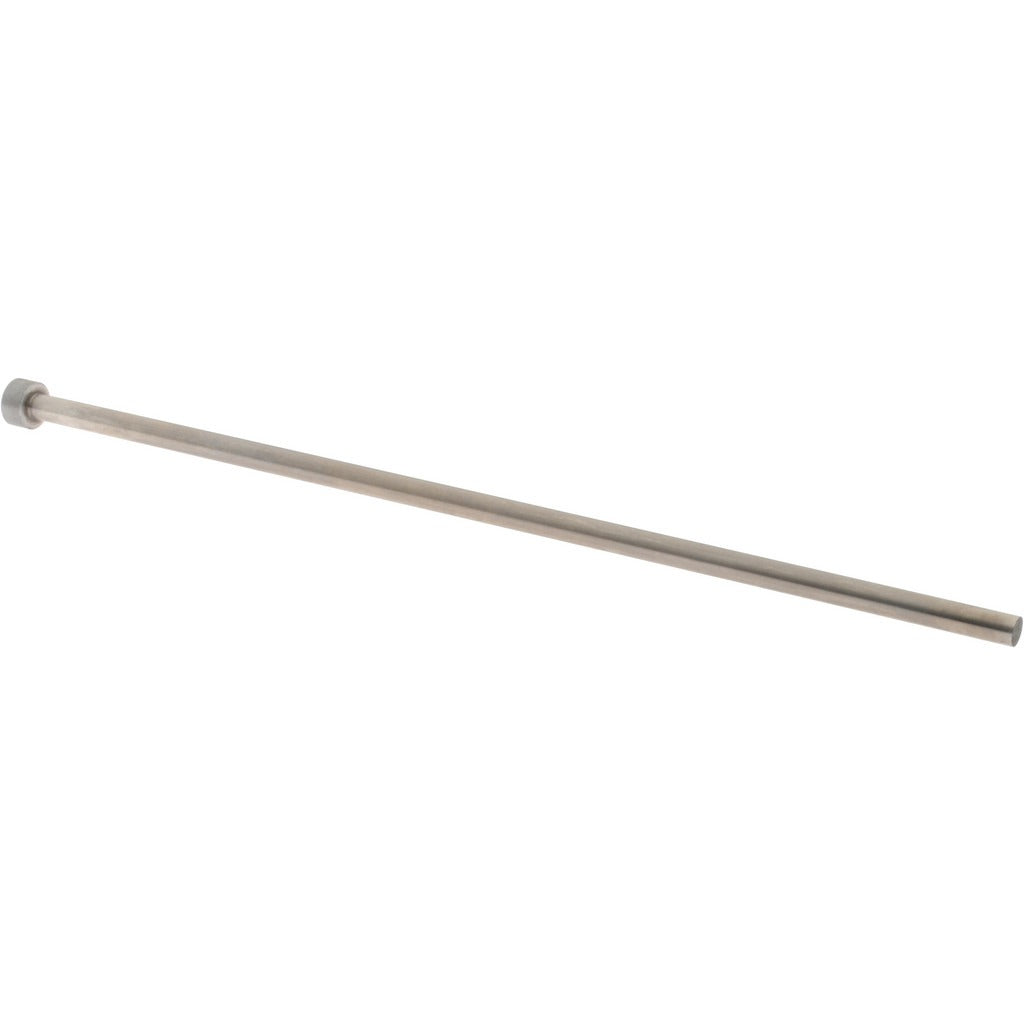

Gibraltar HEP3565-G Straight Ejector Pin 5/32 in Steel

Product Description

The GIBRALTAR HEP3565-G is a straight ejector pin used in injection mold tooling to push finished parts out of the mold cavity at the end of each cycle. Machined from steel with a nitride finish for surface hardness and wear resistance, this pin measures 5/32 inch in diameter with an overall length of 6 inches and a usable pin length of 5.844 inches. The head diameter is 9/32 inch with a head height of 5/32 inch. It is installed by toolmakers and mold technicians during mold builds and maintenance operations.

This ejector pin is suited for use in plastic injection molds and die-cast tooling where straight ejector pin configurations are required. Its dimensions make it appropriate for medium-scale mold applications where a 5/32-inch pin diameter is specified by the mold design. The nitride finish provides added durability in repetitive-cycle production environments.

Key Features

• Straight ejector pin geometry for standard mold ejection applications
• 5/32 inch pin diameter with 6 inch overall length
• Pin length of 5.844 inches provides usable ejection stroke clearance
• 9/32 inch head diameter and 5/32 inch head height for proper ejector plate seating
• Steel construction with nitride finish for surface hardness and extended service life

Compatibility

Designed as an OEM-style replacement or direct-fit component for injection mold and die-cast tooling that specifies a straight ejector pin with a 5/32 inch pin diameter and 6 inch overall length.

Installation Notes

Installation is performed by qualified toolmakers or mold technicians. The mold should be fully de-energized, cooled, and secured in a mold press or on a safe work surface before ejector pin service. Pins should be seated flush in the ejector plate retainer without forcing; verify pin diameter and length against mold drawings before installation. Follow applicable shop safety and tooling maintenance procedures throughout.
