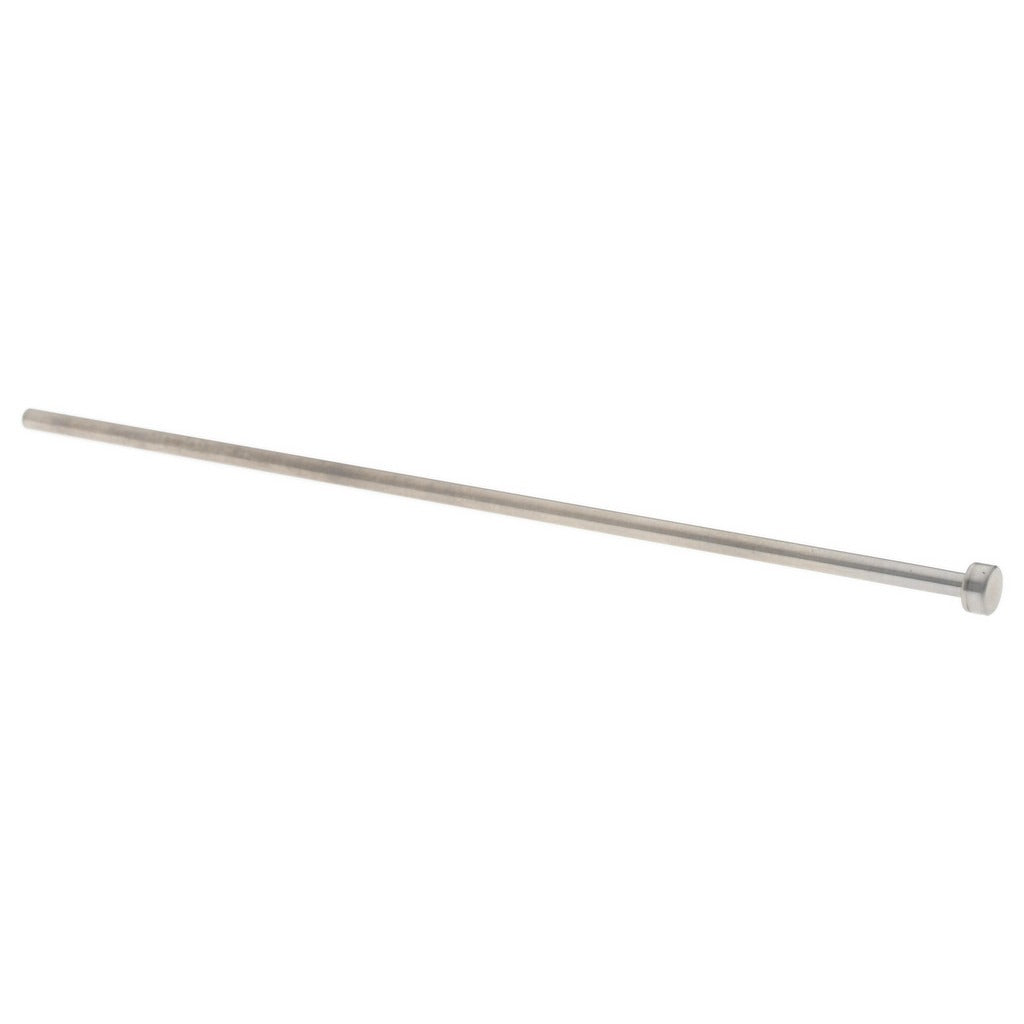

Gibraltar HEP3560-G Straight Ejector Pin Steel Nitride

Product Description

The GIBRALTAR HEP3560-G is a straight ejector pin designed for use in injection molds and die casting tooling. It functions to push finished parts out of the mold cavity at the end of each cycle. The pin measures 0.125 inches in diameter with a 6-inch overall length and a 5.875-inch pin length. The head measures 0.25 inches in diameter and 0.125 inches in height. Constructed from steel with a nitride finish, it provides hardness and wear resistance suited to repetitive high-cycle molding operations. This pin is installed and maintained by toolmakers, mold technicians, and die shop professionals.

This ejector pin is used in plastic injection molds, die casting dies, and similar tooling applications in both production shop and job shop environments. It fits standard ejector plate assemblies where a 0.125-inch pin diameter is specified. The nitride surface treatment helps resist galling and extends service life in abrasive molding conditions. Toolroom technicians select this pin when replacing worn or broken ejectors during scheduled mold maintenance or emergency repair.

Key Features

• Straight ejector pin design for standard injection mold and die casting applications
• 0.125-inch pin diameter with 5.875-inch usable pin length
• 0.25-inch head diameter and 0.125-inch head height for positive seating in ejector plates
• Steel construction with nitride finish for hardness and wear resistance
• 6-inch overall length for compatibility with standard ejector assemblies

Compatibility

Designed as a standard-dimension straight ejector pin for injection mold and die casting tooling requiring a 0.125-inch pin diameter and 6-inch overall length.

Installation Notes

Installation is performed by qualified toolmakers or mold technicians with the mold fully de-energized, cooled, and safely staged on a mold bench or press platen. Verify ejector plate bore diameter and pin length against mold drawings before installation. Pins should be inspected for straightness and finish integrity prior to insertion. Follow shop safety protocols and mold manufacturer guidelines when disassembling and reassembling ejector assemblies.
