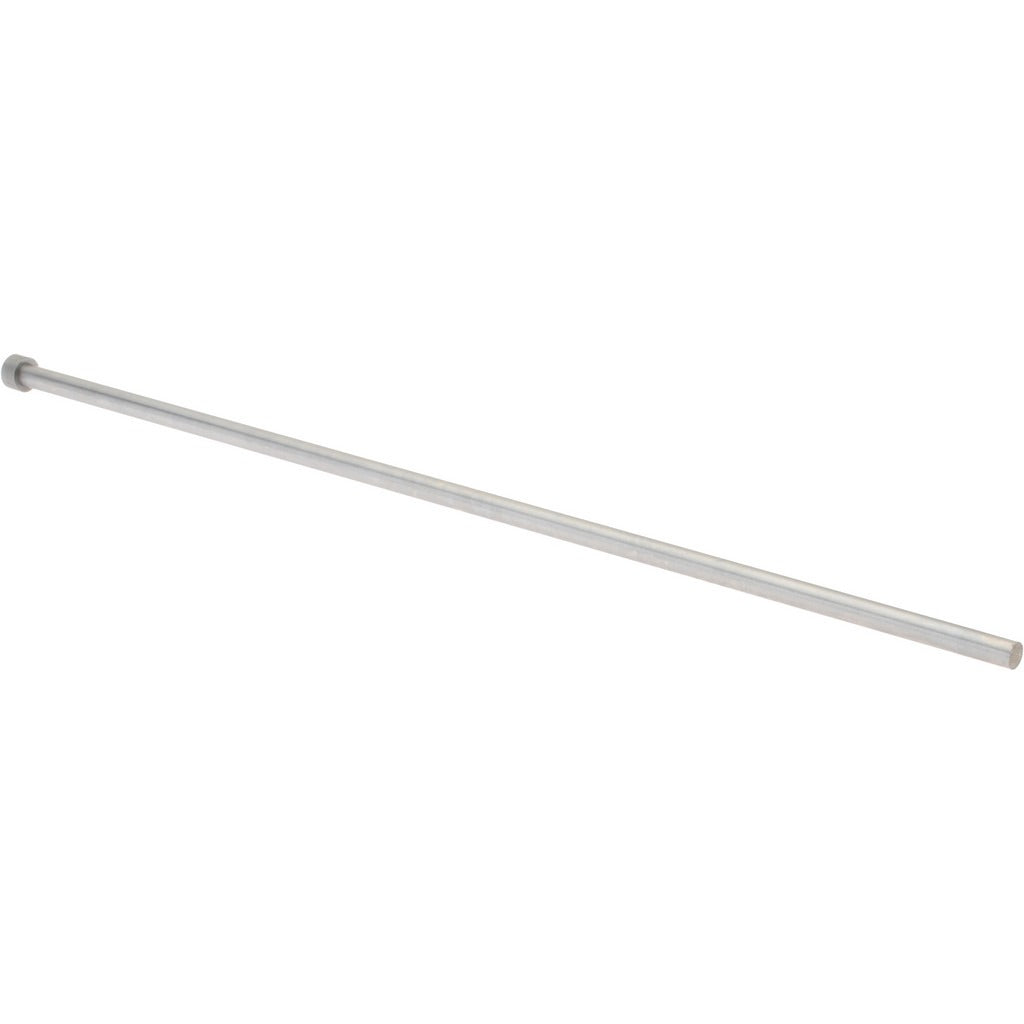

Gibraltar HCP5713 Hard Core Pin 9/32 in 14 in Steel

Product Description

The GIBRALTAR HCP5713 is a steel hard core pin designed for secure fastening and positioning applications across a range of trade and industrial uses. With a pin diameter of 9/32 inches and an overall length of 14 inches, this pin provides reliable engagement in deep or through-hole applications. The 7/16-inch head diameter and 1/4-inch head height give the head a low-profile bearing surface that seats flush or near-flush against mating components. Constructed from steel, the HCP5713 offers the strength and durability required in mechanical assembly, rigging, and structural fastening tasks.

This hard core pin is suited for use in mechanical, industrial, and construction trade applications where a robust through-pin or cotter-style retaining pin is required. It is appropriate for use in equipment assemblies, hinge points, clevis connections, and similar configurations where a removable or permanent pin fastener is specified. Installers in the mechanical, millwright, and general construction trades will encounter this type of pin in both new assembly and maintenance or replacement scenarios.

Key Features

• 9/32-inch pin diameter for precise fit in standard-spec pin holes
• 14-inch overall length accommodates deep or wide through-hole applications
• 7/16-inch head diameter provides positive seating and load-bearing surface
• 1/4-inch head height delivers a low-profile head for tight clearance installations
• Steel construction for high strength and durability in demanding applications
• Sold individually, allowing single-unit replacement without excess stock

Compatibility

Designed as a standard hard core pin replacement or new-installation fastener for mechanical assemblies, equipment linkages, and structural connections requiring a 9/32-inch pin diameter and 14-inch overall length.

Installation Notes

Installation is typically performed by mechanical, millwright, or general construction trades using standard hand tools. Ensure the mating bore is clean, properly sized, and free of burrs before driving or inserting the pin. Secure all connected components and relieve any load or tension from the assembly before removing an existing pin or installing this replacement. Follow applicable local codes and equipment manufacturer guidelines for pin retention and fastener security.
