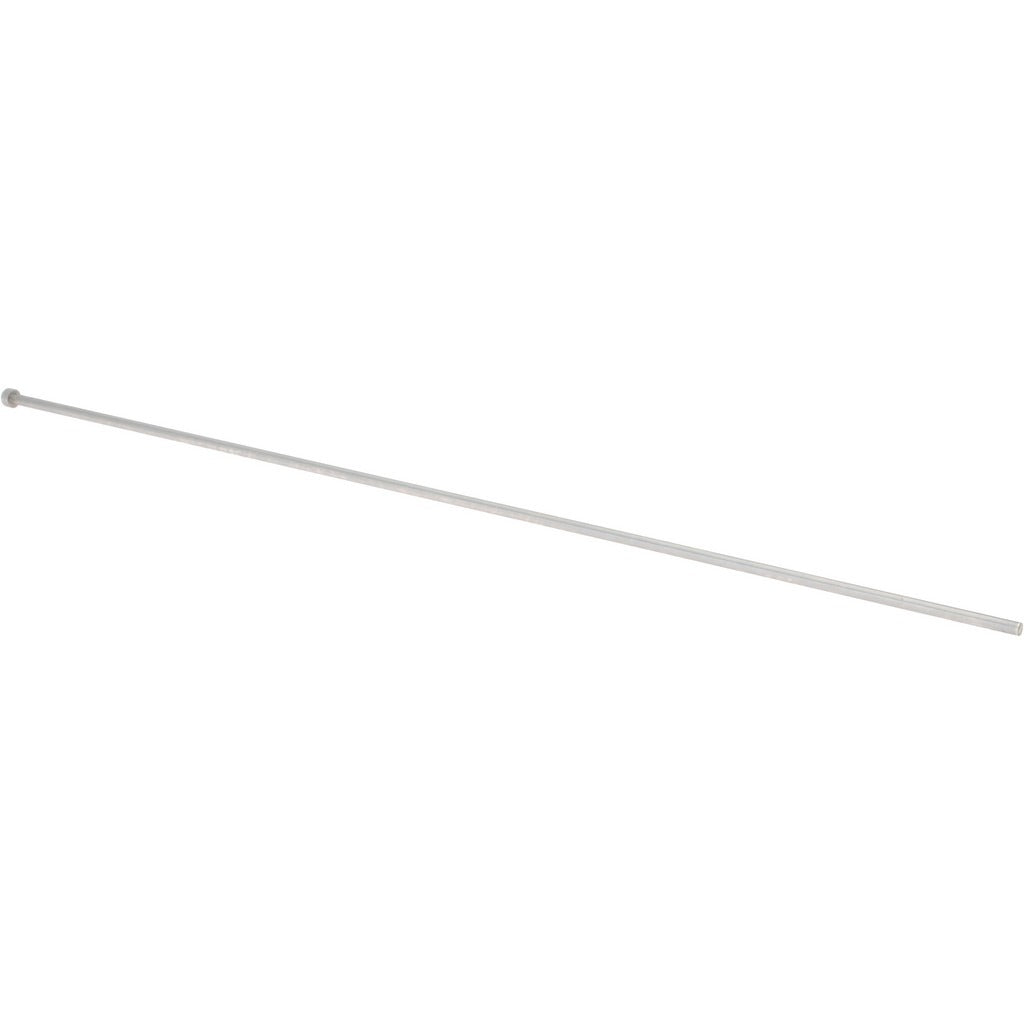

Gibraltar HCP5703 Hard Core Pin 9/64 in 14 in Steel

Product Description

The GIBRALTAR HCP5703 is a hard core pin used in mechanical assembly, maintenance, and repair applications across industrial and trade environments. This pin features a 9/64 inch pin diameter and a 14 inch overall length, making it suited for alignment, retention, and fastening tasks where a headed pin with precise dimensions is required. The steel construction provides durability under load and resistance to deformation during installation and service. Licensed mechanics, millwrights, and maintenance technicians typically work with pins of this type when assembling or servicing machinery, jigs, fixtures, and structural components.

This hard core pin is appropriate for use in general mechanical and industrial maintenance contexts where a headed steel pin of this diameter and length is specified. The 1/4 inch head diameter and 1/8 inch head height provide a positive seating surface to prevent the pin from passing through a mating hole. It is sold individually and suits both shop and field service use in residential, commercial, and light industrial settings.

Key Features

• 9/64 inch pin diameter for precise fitment in correspondingly sized holes
• 14 inch overall length accommodates deep assemblies and extended reach applications
• 1/4 inch head diameter provides a positive stop surface
• 1/8 inch head height keeps the head profile low while retaining the pin
• Steel construction delivers strength and resistance to bending under normal service loads
• Sold as a single unit for targeted replacement or spot stocking

Compatibility

Designed as an OEM-style replacement or service pin for mechanical assemblies, jigs, fixtures, and equipment requiring a hard core pin with a 9/64 inch diameter and 14 inch overall length.

Installation Notes

Hard core pins are typically installed by mechanics, millwrights, or maintenance technicians using standard hand tools. Before installing or removing a pin, ensure the assembly is de-energized, depressurized, and properly supported to prevent unintended movement. Drive pins only with an appropriate pin punch and hammer to avoid deforming the head or shank. Verify hole alignment and clearance before driving to full depth.
