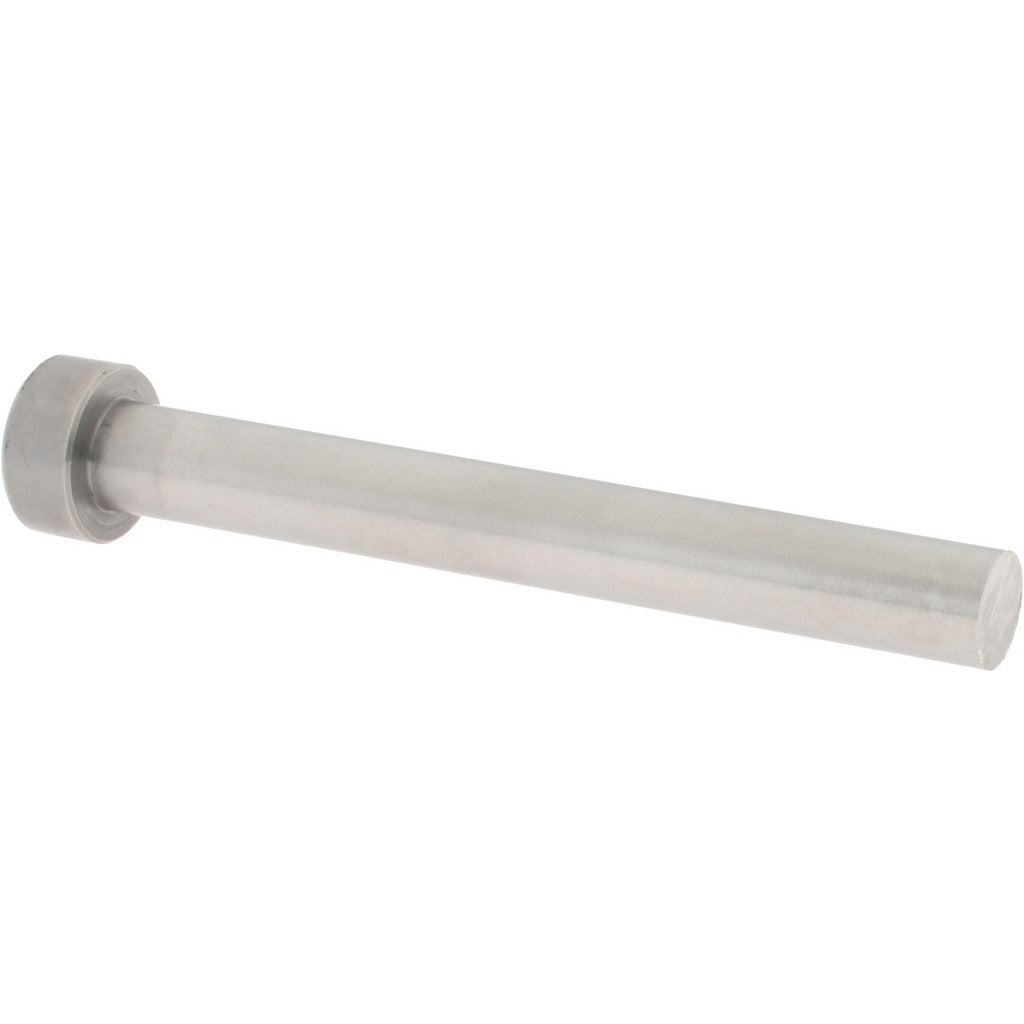

Gibraltar HCP5655-G Hard Core Pin 11/32 in Steel

Product Description

The GIBRALTAR HCP5655-G is a hard core steel pin designed for secure fastening and alignment applications in industrial and trade settings. With an 11/32 inch pin diameter and an overall length of 3 inches, this pin delivers reliable holding strength in demanding conditions. The head diameter measures 9/16 inch with a 1/4 inch head height, and the usable pin length is 2.75 inches. Its hardened steel construction resists deformation under load, making it suitable for repetitive use in high-cycle assemblies. Machinists, millwrights, and maintenance technicians are the primary installers of this type of fastener.

This hard core pin is used in industrial machinery, jigs, fixtures, and assembly tooling where precise alignment and positive retention are required. It is suited for both light and heavy manufacturing environments, tool rooms, and maintenance repair operations. The hard pin construction handles shear and alignment loads that standard soft pins cannot. Typical applications include hinge points, pivot connections, locking mechanisms, and component registration in fabricated assemblies.

Key Features

• Hardened steel construction for resistance to deformation and wear
• 11/32 inch pin diameter for consistent fit in matched bores
• Overall length of 3 inches with a usable pin length of 2.75 inches
• 9/16 inch head diameter with 1/4 inch head height for positive seating
• Sold individually, no minimum pack requirement

Compatibility

Designed as an OEM-style replacement or direct-use hard core pin for industrial fixtures, jigs, and machinery requiring an 11/32 inch diameter hardened steel pin with a 3 inch overall length.

Installation Notes

Installation is typically performed by machinists or maintenance technicians using standard hand tools or a pin press. Ensure the receiving bore is clean, properly sized, and free of burrs before driving the pin to avoid damage to the bore or the pin head. Power down and de-energize any associated machinery before servicing components that use this pin. Follow applicable facility lockout/tagout procedures during installation and removal.
