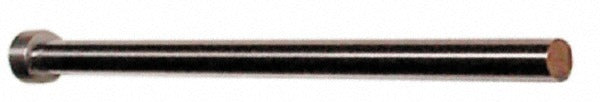

Gibraltar HCP5625-G Hard Core Pin 7/64 in Steel

Product Description

The GIBRALTAR HCP5625-G is a steel hard core pin used in mechanical fastening and assembly applications. It features a 7/64 inch pin diameter, a 10 inch overall length, and a hardened steel construction designed to withstand driven or pressed installations. The 1/4 inch head diameter and 1/8 inch head height provide a low-profile seating surface, while the 9-7/8 inch pin length gives adequate engagement depth in the workpiece. This pin is well suited for machinists, tool and die technicians, and maintenance professionals working with precision assemblies.

Hard core pins of this type are used in manufacturing, fabrication, and maintenance environments where a solid, hardened pin is required for locating, locking, or retaining components. The hardened steel construction makes this pin appropriate for metal-to-metal assemblies in both light industrial and heavy mechanical settings. It is sold in a single-piece package and is a standard catalog item for tooling and fixture builds.

Key Features

• Hard core pin construction with hardened steel for driven or pressed-in applications
• 7/64 inch pin diameter for precision fit in matching bored holes
• 10 inch overall length with 9-7/8 inch usable pin length
• 1/4 inch head diameter provides a positive seating surface
• 1/8 inch head height keeps the head profile low in the assembly
• Steel material offers durability in metal-to-metal contact environments

Compatibility

Designed as a standard hard core pin for use in tooling, fixture, and mechanical assembly applications requiring a 7/64 inch diameter hardened pin with a 10 inch overall length.

Installation Notes

Hard core pins are typically installed by machinists or maintenance technicians using a pin press or mallet. Ensure the receiving bore is properly sized and deburred before driving the pin to avoid damage to the workpiece or pin. Power down and de-energize any associated machinery before servicing assemblies that include locating or retaining pins.
