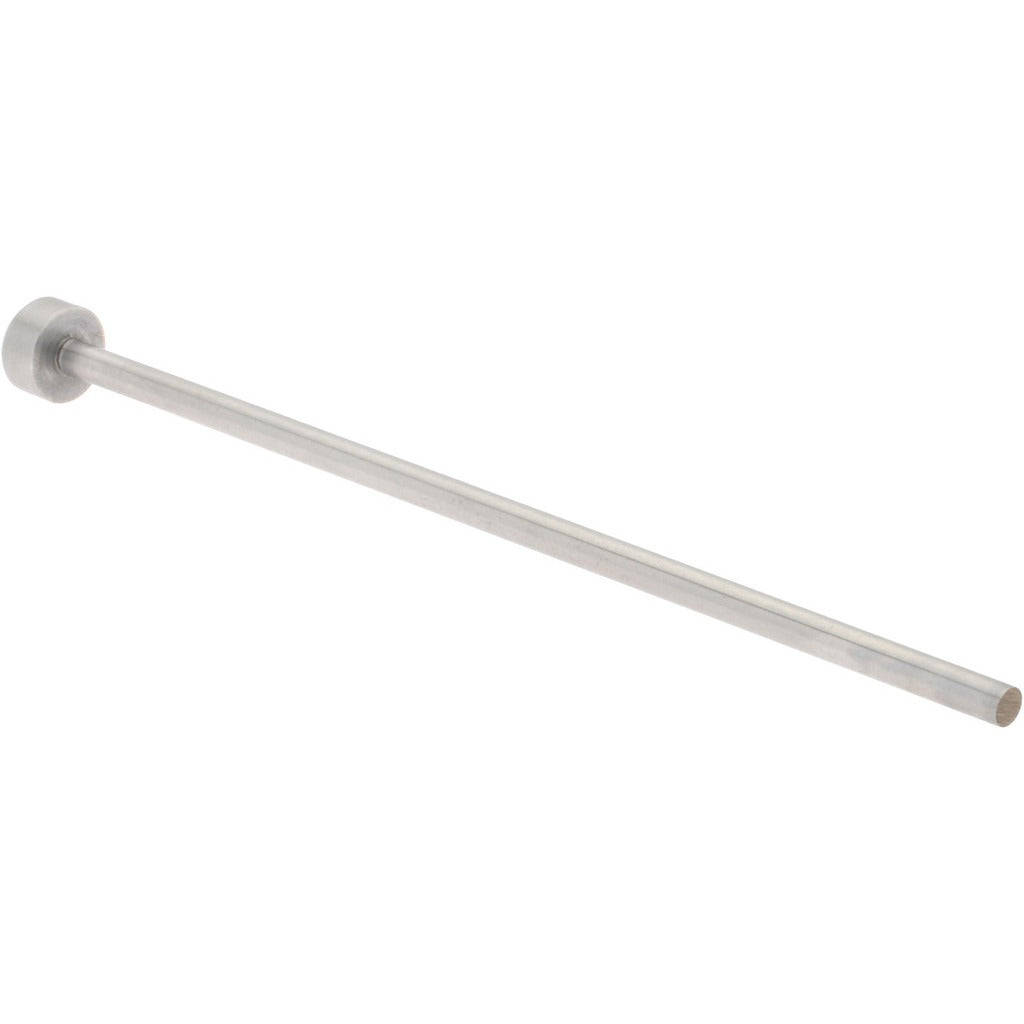

Gibraltar HCP5620-G Hard Core Pin 3/32 in Steel

Product Description

The GIBRALTAR HCP5620-G is a hard core pin used in fastening, assembly, and tooling applications across mechanical and industrial trades. Machined from steel, this pin measures 3/32 inches in diameter with an overall length of 3 inches and a pin length of 2.875 inches. The head diameter is 1/4 inch with a head height of 1/8 inch. Its hard construction provides resistance to deformation under load, making it a reliable choice for precise alignment, retention, and locating tasks where dimensional accuracy matters.

This hard core pin is suited for shop, maintenance, and fabrication environments where a headed steel pin is required to locate, retain, or register components. The compact dimensions make it appropriate for light-duty fixtures, gauges, jigs, and mechanical assemblies. Machinists, tool and die workers, and maintenance technicians are the primary installers of this type of fastener in both bench and field settings.

Key Features

• Hard construction resists deformation during installation and use
• Steel material provides durability in mechanical and industrial applications
• 3/32 inch pin diameter fits precision tooling and fixture applications
• Headed design aids retention and prevents through-migration in assemblies
• Compact 3 inch overall length suits tight-clearance installations

Compatibility

Designed as a standard hard core headed pin for use in mechanical fixtures, jigs, gauges, and general industrial assembly applications requiring a 3/32 inch pin diameter.

Installation Notes

Installation is typically performed by machinists or maintenance technicians using a pin punch and hammer or arbor press. Ensure the receiving bore is clean and dimensionally matched to the pin diameter before seating. Wear appropriate eye protection when driving pins. Follow applicable shop safety procedures and equipment manufacturer guidelines during assembly.
