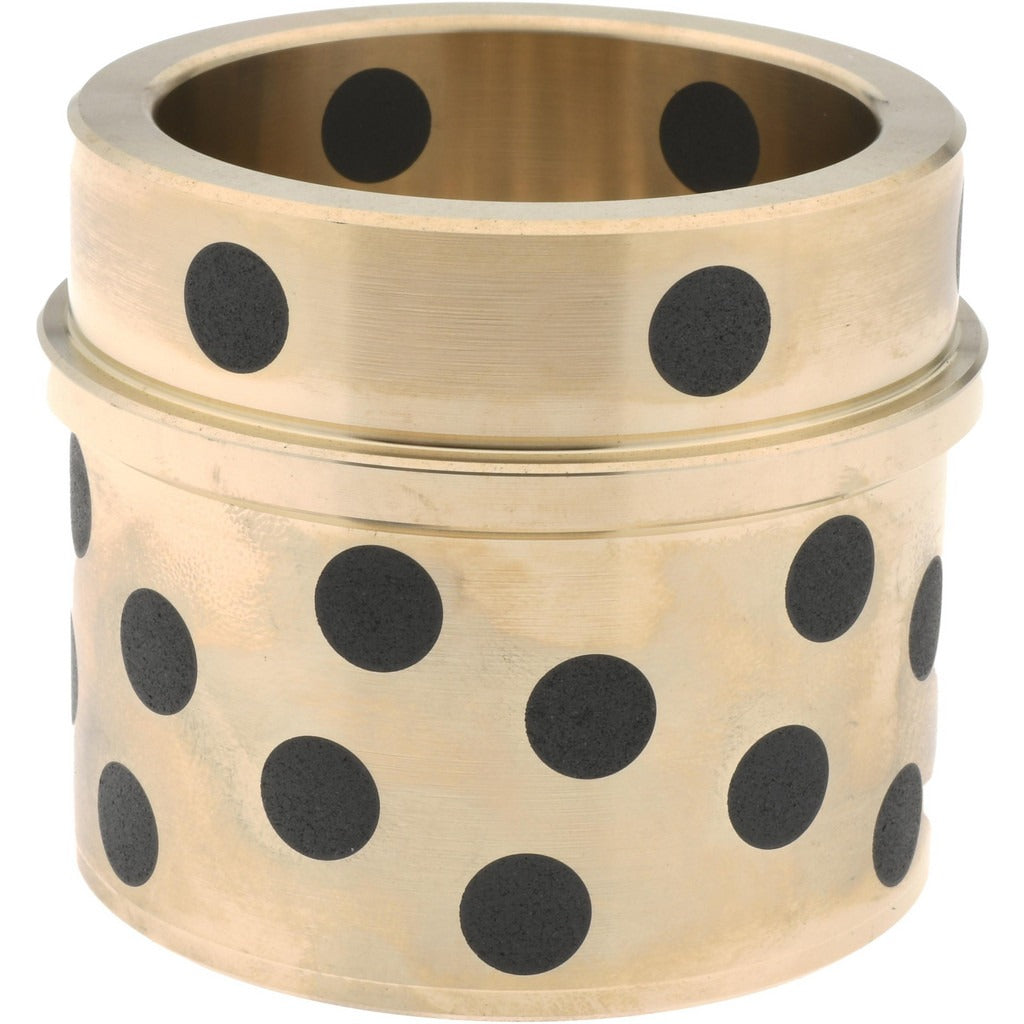

Gibraltar GPGEB-605 Guided Ejector Straight Bushing

Product Description

The GIBRALTAR GPGEB-605 is a guided ejector die mold straight bushing designed for use in injection mold and die tooling applications. Machined from solid bronze, this bushing is self-lubricating, eliminating the need for external grease or oil during normal operation. It features a 2.001-inch inside diameter and a 2.5005-inch body diameter, installed via press-fit into the mold base or die assembly. The GPGEB-605 is sized and toleranced for precision alignment of ejector components, maintaining consistent guidance under repeated cycle loads. Tool and die makers and mold technicians are the typical installers.

This bushing is suited for straight guided ejector systems in injection molding, die casting, and stamping die assemblies. It is appropriate for both production and prototype tooling where repeatable ejector pin alignment is required. The self-lubricating solid bronze construction makes it well-suited for high-cycle environments where regular maintenance access is limited. The press-fit attachment method allows secure seating in standard mold base bores without additional fasteners or adhesives.

Key Features

• Solid bronze construction provides durability and natural lubricity in high-cycle tooling applications
• Self-lubricating material eliminates the need for external lubrication under normal service conditions
• 2.001-inch inside diameter with 2.5005-inch body diameter for precise guided ejector fitment
• Press-fit attachment method ensures secure, fastener-free installation in mold base bores
• Straight bushing profile compatible with standard guided ejector system configurations
• Sold individually, allowing single-unit replacement without minimum quantity constraints

Compatibility

Designed as an OEM-style replacement or direct-fit component for guided ejector systems in standard die mold assemblies requiring a press-fit straight bushing with a 2.001-inch inside diameter.

Installation Notes

Installation is typically performed by tool and die makers or mold technicians during mold assembly or maintenance. The mold should be fully de-energized and cooled before bushing removal or installation. Press-fit installation requires a hydraulic or arbor press and appropriate tooling to seat the bushing squarely without damaging the bore or bushing face. Verify bore tolerances against bushing specifications before pressing to ensure proper interference fit.
