Gibraltar GLH-514-G Gear Lever Arm Ball Knob Type a

Product Description

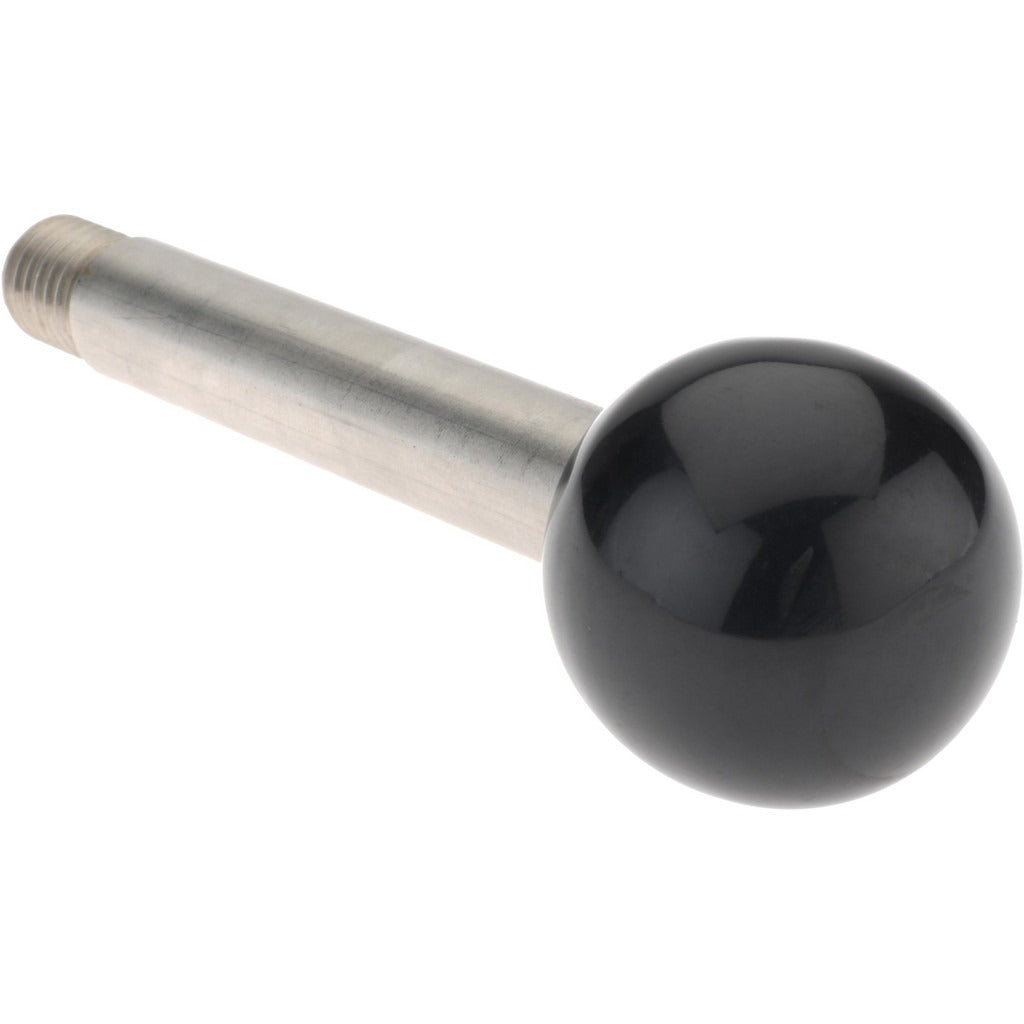

The GIBRALTAR GLH-514-G is a Type A gear lever arm with a ball knob, designed for use in machine tool, industrial equipment, and mechanical assembly applications. The handle features a stainless steel shaft paired with a phenolic ball knob, offering corrosion resistance and a firm grip under repeated use. The shaft measures 0.5 inches in diameter with a 0.5-13 threaded stem and a thread engagement length of 0.63 inches. The knob diameter is 1.38 inches and the knob length is 1.28 inches. Overall handle length is 4.43 inches. Weighing 0.1 pounds, this lever arm is suited for equipment requiring a durable, hand-operable control point. Installation is typically performed by millwrights, machine assemblers, or maintenance technicians.

This lever arm is used in gear shift mechanisms, machine tool controls, and industrial equipment panels where a reliable hand-operated lever is required. The Type A configuration suits standard gear lever mounting arrangements common in light to medium-duty mechanical assemblies. The stainless steel shaft resists corrosion in shop and light industrial environments, while the phenolic knob withstands repeated manual operation without significant wear.

Key Features

• Type A gear lever arm configuration for standard mechanical control applications
• Stainless steel shaft provides corrosion resistance in industrial environments
• Phenolic ball knob offers durability and comfortable hand operation
• 0.5-13 threaded stem for secure fastening into compatible assemblies
• 4.43-inch handle length provides adequate leverage for gear shift applications
• Lightweight at 0.1 pounds for easy handling and installation

Compatibility

Designed as an OEM-style replacement or direct-fit lever arm for industrial machine tool and mechanical assembly applications requiring a Type A gear lever with a 0.5-13 threaded stem and 0.5-inch shaft diameter.

Installation Notes

Installation is typically performed by a qualified millwright or maintenance technician. Ensure all equipment is de-energized and mechanical motion is fully stopped before removing or installing lever arm components. Use appropriate thread-locking methods per equipment manufacturer guidelines. Verify thread engagement depth meets the minimum specified by the receiving assembly to ensure secure attachment.
