Gibraltar GIB07325 Open Wire Turned Eye Bolt 1/4-20 SS304

Product Description

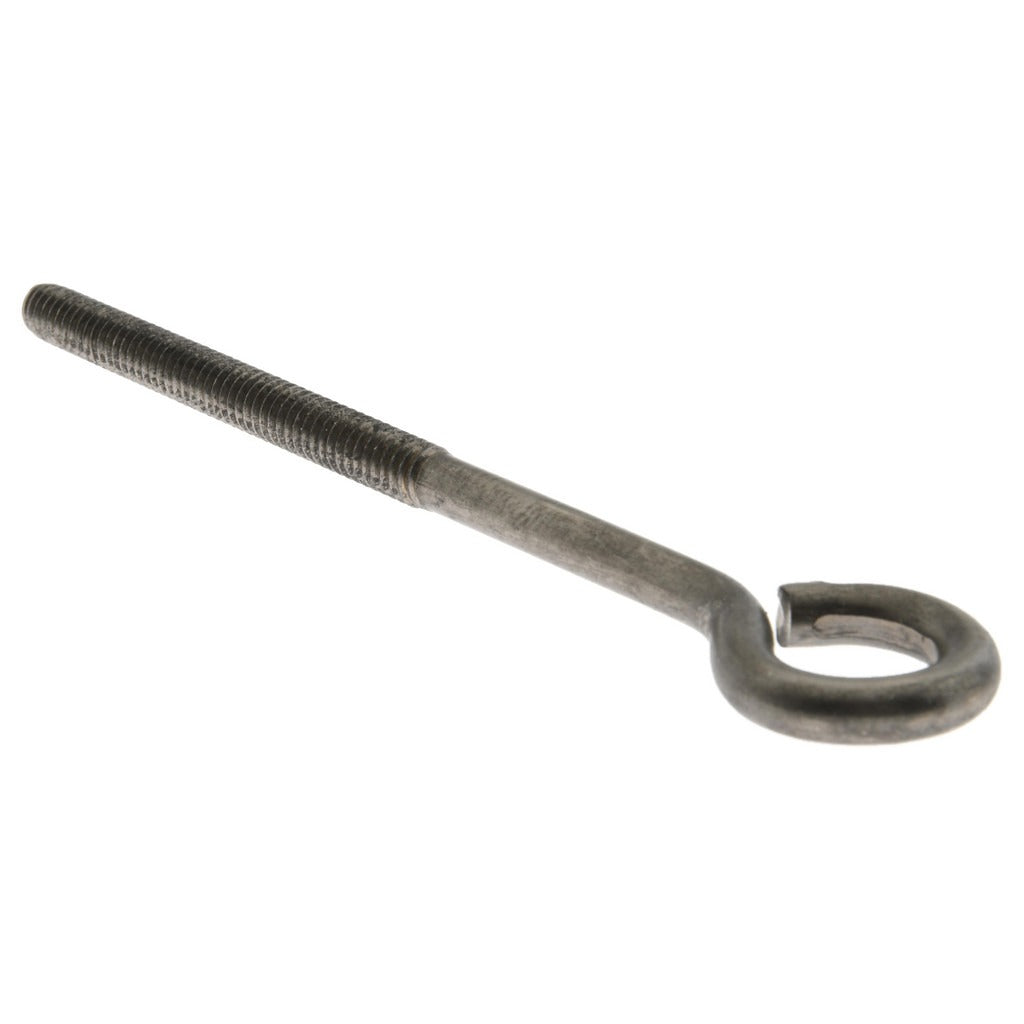

The GIBRALTAR GIB07325 is a 1/4-20 open wire turned eye bolt machined from 304 stainless steel. It features a 4-inch shank length and a 5-inch overall length, with a 2.5-inch thread length. The open wire turned construction allows the eye to accept hooks, cables, or rigging hardware without requiring a secondary fastener. The 1/2-inch inner diameter and 15/16-inch outer diameter eye is sized for standard hardware in light-to-medium load suspension, anchoring, and tie-down applications. This fastener is installed by electricians, HVAC technicians, plumbers, and general contractors wherever a threaded anchor point with a looped eye is needed in corrosive or wet environments.

This eye bolt is suited for indoor and outdoor installations where corrosion resistance is a priority, including marine, coastal, mechanical room, and rooftop applications. The 304 stainless steel construction resists rust and oxidation in humid or salt-air environments. Typical uses include suspending conduit, pipe hangers, equipment supports, and cable runs from structural members. The 1/4-20 thread accepts standard hex nuts and washers, making it compatible with common fastening hardware found on most job sites. Sold in packs of 10.

Key Features

• Open wire turned eye design accepts hooks, shackles, and cables directly
• 304 stainless steel construction for corrosion resistance in wet and coastal environments
• 1/4-20 UNC thread for compatibility with standard nuts and washers
• 4-inch shank length and 5-inch overall length for deeper material penetration
• 2.5-inch thread length provides substantial engagement in wood or metal substrates
• Sold in packs of 10, suitable for multi-point suspension layouts

Compatibility

Designed as an OEM-style replacement or direct installation fastener for any application requiring a 1/4-20 threaded open eye bolt in structural or mechanical hanging systems.

Installation Notes

Installation should be performed by a qualified tradesperson following applicable building and mechanical codes. Power down or de-energize any nearby electrical systems before drilling or threading into structural members. Use a correctly sized tap or pre-drilled clearance hole to avoid cross-threading the 1/4-20 shank. Verify the substrate material and load rating before use in overhead or tension-bearing applications.
