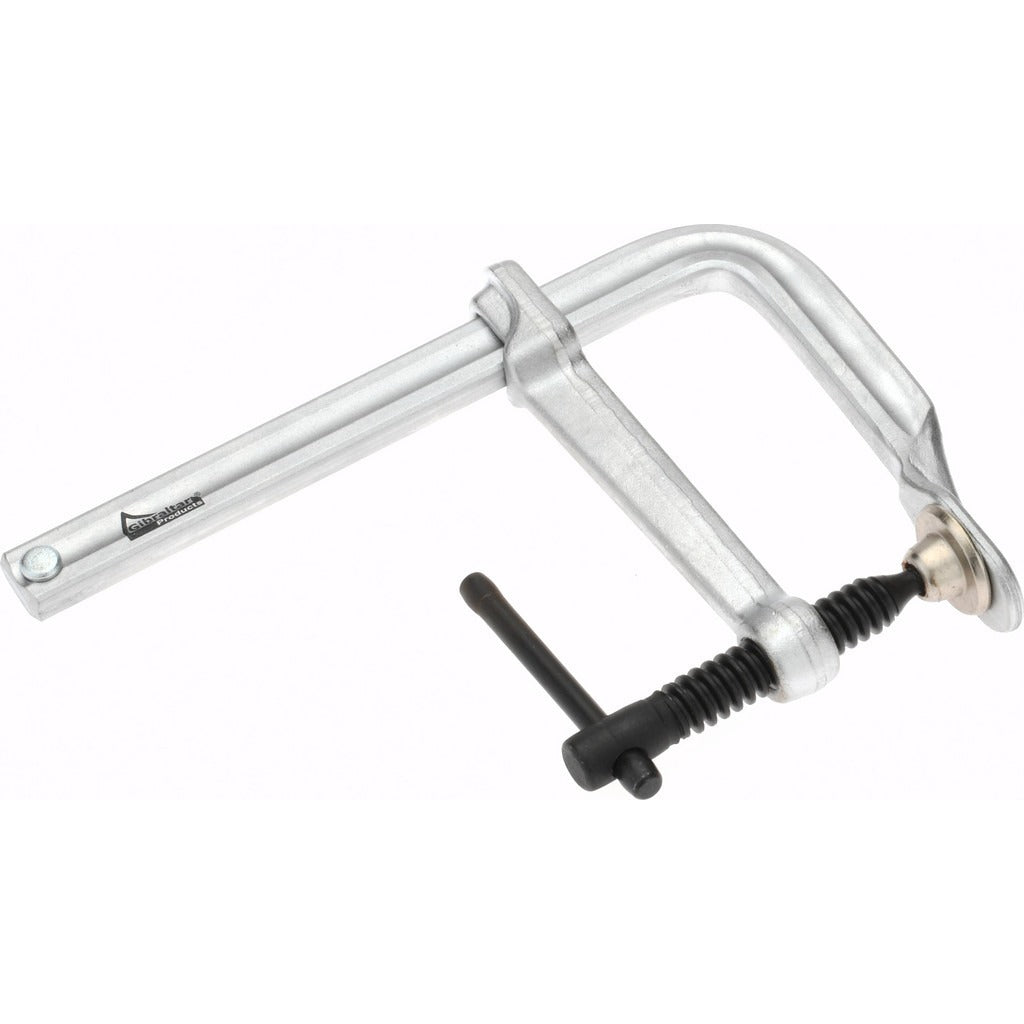

Gibraltar G15CS12 Sliding Arm Bar Clamp 4 in 1200 Lb

Product Description

The GIBRALTAR G15CS12 is a Series G sliding arm bar clamp rated for 1,200 pounds of clamping pressure and featuring a 4-inch throat depth. The frame and pad are constructed from forged steel, while the spindle is alloy steel, providing a rigid and durable clamping assembly suited for demanding workholding applications. A T-handle provides controlled spindle actuation, and the nickel finish helps resist corrosion. This clamp is intended for use by machinists, fabricators, and trade professionals who require repeatable, high-force clamping in production or bench-work environments.

The G15CS12 is well suited for fixture setups, metalworking operations, and general industrial clamping tasks where a sliding arm bar clamp with a 4-inch throat depth is required. The 19.50 x 9.50 mm rail size provides a stable guide for the sliding arm. Its compact footprint makes it practical for benchtop use as well as in-fixture applications across light manufacturing and fabrication shops.

Key Features

• 1,200 lb clamping pressure rating for high-force workholding
• 4-inch throat depth accommodates a wide range of workpiece thicknesses
• Forged steel frame and pad for structural rigidity under load
• Alloy steel spindle for durability and thread wear resistance
• T-handle design for controlled, ergonomic spindle tightening
• Nickel finish for corrosion resistance in shop environments

Compatibility

Designed as a Series G sliding arm bar clamp for general industrial and metalworking clamping applications. No specific compatible model or system information was provided in the product data.

Installation Notes

Installation and setup of this clamp is typically performed by machinists or fabricators during fixture assembly or workpiece setup. Ensure the workpiece and fixture surfaces are clean and free of debris before applying clamping force. Do not exceed the rated 1,200 lb clamping pressure. Regularly inspect the spindle threads and pad faces for wear before use.
