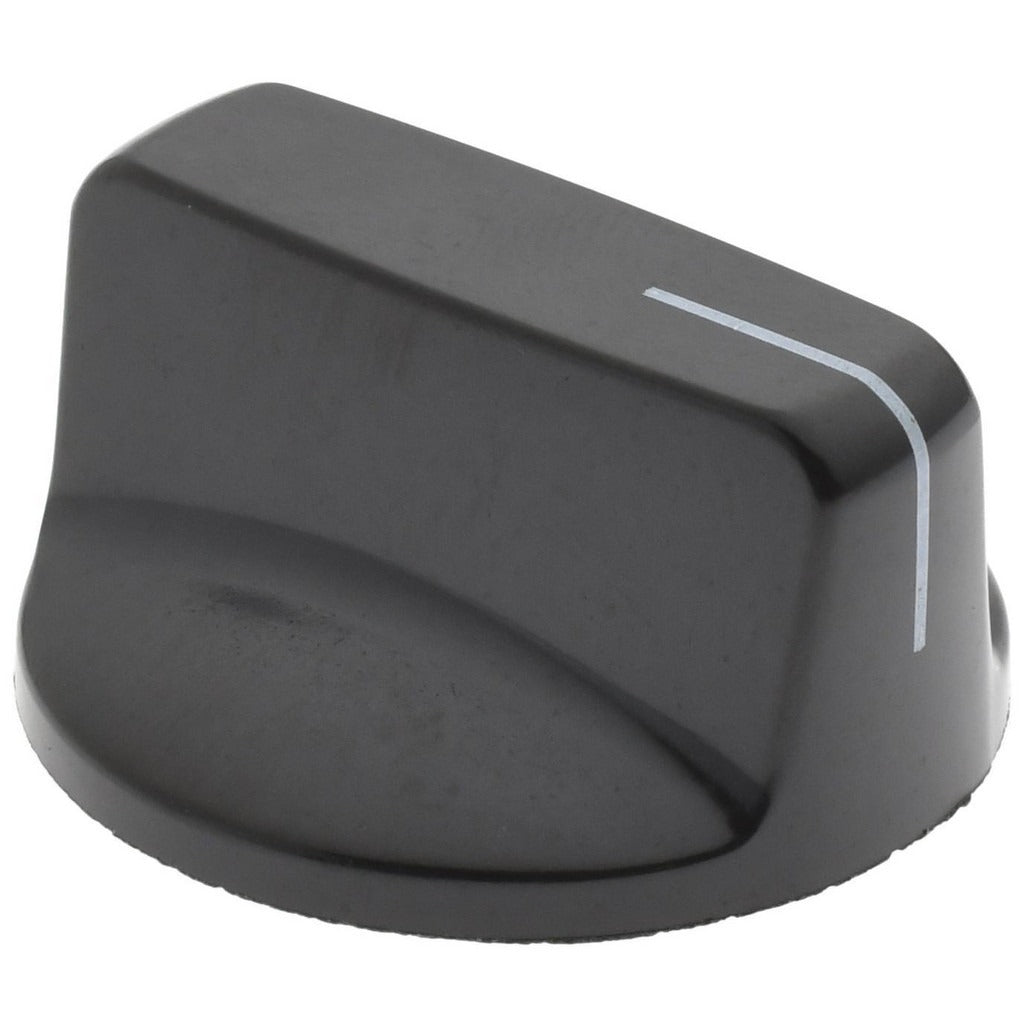

Gibraltar G10-1500AU Pointer Control Knob 1-1/8 in

Product Description

The GIBRALTAR G10-1500AU is a pointer-style control knob designed for use with control shafts requiring a 1/4 x 1/2 inch D-bore hole. It measures 1-1/8 inches in diameter and 9/16 inches in height, with a 1/2 inch hole depth and a center bore of 11/16 inches. Secured by an 8-32 set screw, this knob provides a reliable grip and clear directional indication in panel-mount control applications. The PH-style figure and insert height of 1/2 inch make it suitable for instrumentation and equipment control panels across HVAC, electrical, and industrial service environments.

This knob is used in applications where a pointer indicator is needed to show the position of a rotary control shaft. Typical installations include control panels, thermostats, variable-speed drives, and other equipment requiring clear visual feedback of a shaft position. It is installed by technicians and service professionals working on electrical control assemblies, instrumentation panels, and related mechanical control systems. The compact form factor makes it well suited for both residential and light commercial equipment panels.

Key Features

• Pointer-style (PH) indicator for clear shaft position readout
• 1/4 x 1/2 inch D-bore hole accepts standard control shafts
• 8-32 set screw secures knob firmly to shaft without slippage
• 1-1/8 inch diameter and 9/16 inch height for compact panel installations
• 1/2 inch hole depth and 11/16 inch center bore for proper shaft engagement
• Set screw to bottom measurement of 9/32 inch for precise fit

Compatibility

Designed as an OEM-style replacement pointer control knob for rotary control shafts with a 1/4 x 1/2 inch D-bore profile in residential and commercial equipment control panels.

Installation Notes

Installation is performed by qualified electricians or service technicians. De-energize all equipment and lock out power before removing or installing control knobs. Align the knob bore to the shaft flat and tighten the 8-32 set screw securely to prevent rotation under use. Follow applicable NEC guidelines and equipment manufacturer procedures when servicing control panels.
