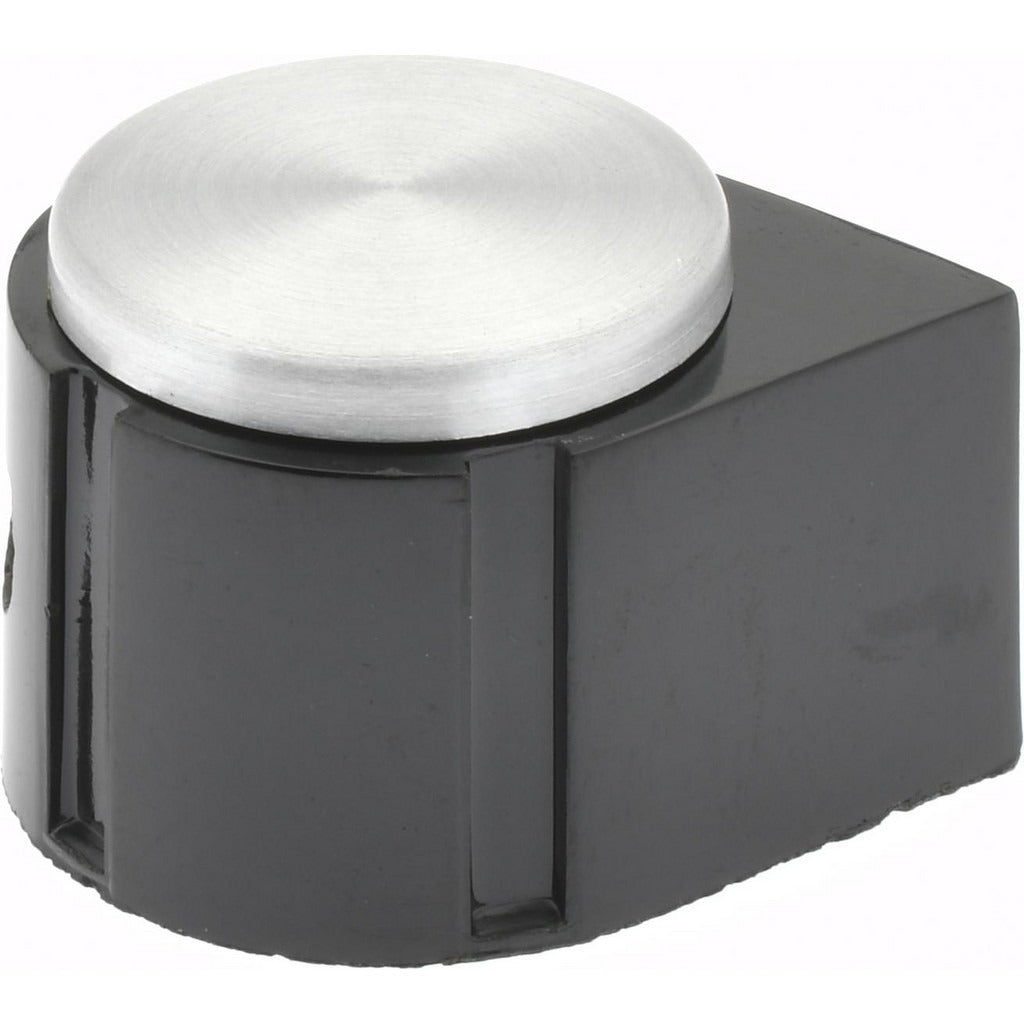

Gibraltar G10-1210AX Skirted Knob 1-1/32 in Diameter

Product Description

The GIBRALTAR G10-1210AX is a skirted control knob designed for use on panel-mounted stems and shafts in industrial, HVAC, and electrical enclosure applications. The knob measures 1-1/32 inches in overall knob diameter with a matching 1-1/32 inch skirt diameter, standing 5/8 inches high. The recess diameter is 21/32 inches and the stem hole depth is 17/32 inches, accommodating a center bore of 9/32 inches. The Phillips-head (PH) style insert is included. Technicians and panel builders use this knob as a functional grip point on equipment controls, selector switches, and potentiometer shafts.

This skirted knob is suited for residential and light commercial HVAC control panels, electrical enclosures, and industrial equipment where a compact, low-profile knob is required. The skirted design provides a clean finished appearance around the stem mounting area, making it appropriate for exposed panel assemblies. It is typically installed by HVAC technicians, electricians, and panel fabricators during equipment assembly or control panel service.

Key Features

• Skirted knob style provides a finished appearance around the stem opening
• Knob diameter of 1-1/32 inches with a matching skirt diameter of 1-1/32 inches
• Stem hole depth of 17/32 inches with a center bore of 9/32 inches for secure shaft engagement
• Recess diameter of 21/32 inches accommodates standard panel-mount stems
• Overall height of 5/8 inches keeps the profile compact on crowded control panels
• Phillips-head insert style for straightforward installation and removal

Compatibility

Designed as an OEM-style replacement or direct-fit skirted knob for panel-mounted control stems with a 9/32 inch center bore in residential and light commercial equipment.

Installation Notes

Installation is performed by electricians, HVAC technicians, or panel builders. Confirm the shaft diameter matches the 9/32 inch center bore before installation. Power down or de-energize the equipment before removing or replacing any panel control knob. Secure the set screw using the appropriate driver to prevent knob rotation during operation.
