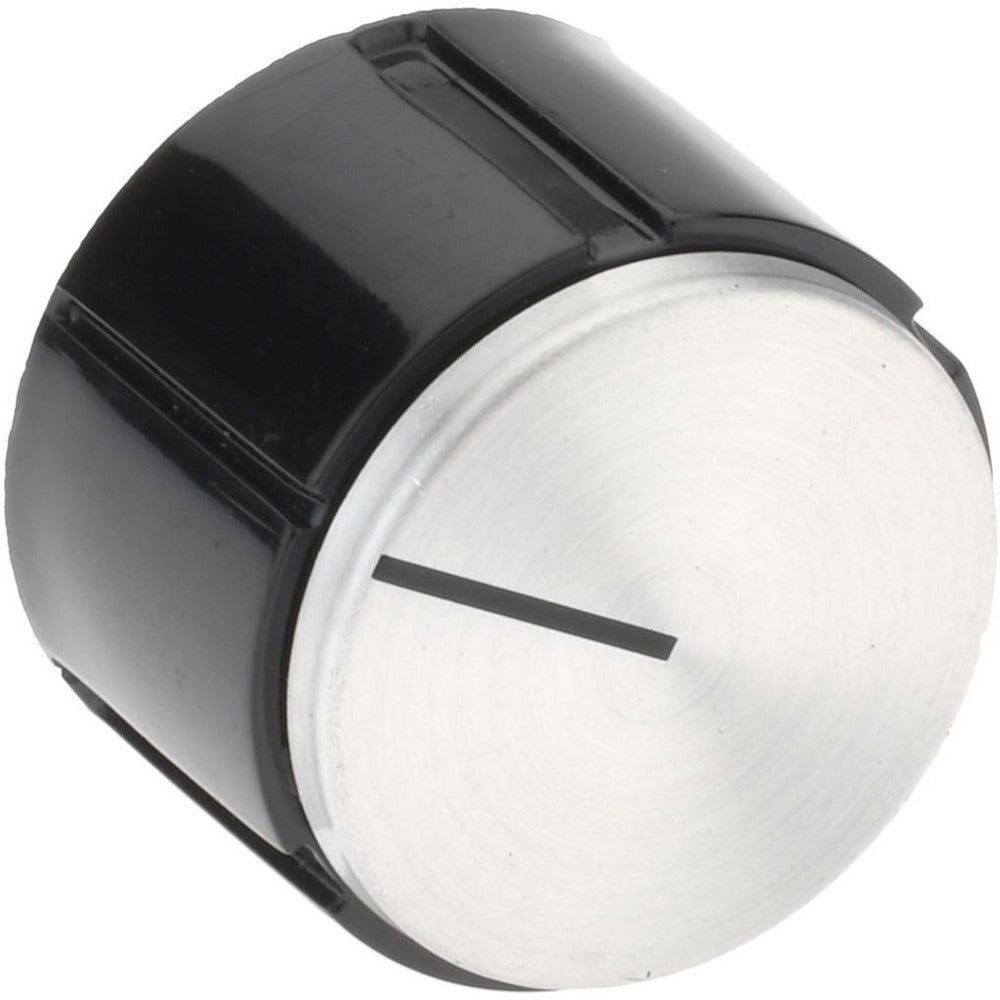

Gibraltar G10-1204AZ Skirted Knob 1 in Diameter

Product Description

The GIBRALTAR G10-1204AZ is a skirted control knob designed for use on shafts and stems in panel-mount applications. With a 1 inch knob diameter and a matching 1 inch skirt diameter, it provides a clean, finished appearance on instrument panels, control boxes, and equipment enclosures. The center bore measures 11/16 inch, the stem hole depth reaches 17/32 inch, and a set screw secures the knob at 9/32 inch from the base to the set screw centerline. At 11/16 inch in total height, the low-profile skirted design suits tight panel layouts. Electricians and control panel technicians are the primary installers for this type of component.

This knob is suited for residential and light commercial control panel assemblies, HVAC equipment interfaces, and instrumentation enclosures where a finished, skirted appearance is required over a shaft or stem. It is appropriate wherever a 11/16 inch center bore and 17/32 inch stem depth matches the shaft specifications of the installed equipment.

Key Features

• 1 inch outer knob diameter with matching 1 inch skirt diameter for a flush, finished look
• 11/16 inch center bore accommodates standard shaft sizes
• 17/32 inch stem hole depth provides secure shaft engagement
• Set screw retention with 9/32 inch set screw to bottom measurement
• 11/16 inch overall height suits compact and low-profile panel layouts
• Lightweight construction at approximately 0.02 pounds per piece

Compatibility

Designed as a panel-mount skirted knob for shafts with an 11/16 inch bore diameter and up to 17/32 inch of shaft engagement depth, suitable for standard control panel and instrumentation shaft configurations.

Installation Notes

Installation requires powering down and de-energizing the associated equipment before fitting the knob onto the shaft. A properly sized hex key or Allen wrench is needed to tighten the set screw and secure the knob in position. Verify the shaft diameter matches the 11/16 inch center bore before installation to avoid damage to the bore or shaft. Minimum order quantity for this part is 10 units.
