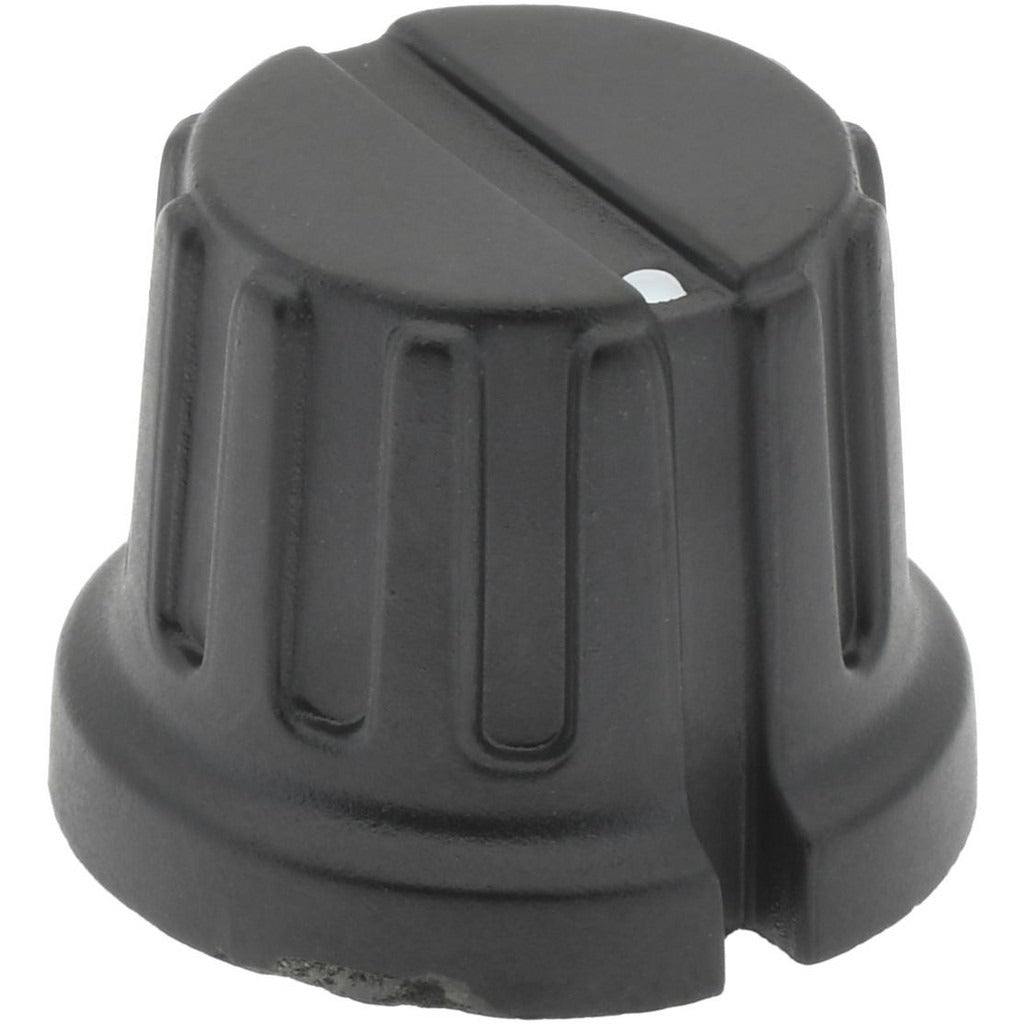

Gibraltar G10-1145 Skirted Control Knob 11/16 in

Product Description

The GIBRALTAR G10-1145 is a skirted control knob designed for use on equipment panels, instruments, and control assemblies requiring a compact, low-profile knob with a defined skirt perimeter. The knob measures 11/16 inches in diameter with a 13/16 inch skirt diameter, providing a clean finished appearance around the mounting surface. The recess diameter is 1/2 inch, the stem hole depth is 7/16 inch, and the overall height is 5/8 inch. The set screw sits 1/4 inch from the bottom, securing the knob firmly to the shaft. HVAC technicians, electricians, and equipment service professionals typically use skirted knobs as OEM-style replacements on control panels and equipment enclosures.

The G10-1145 is suited for use on residential and light commercial equipment where a small-format skirted knob is required. Typical applications include potentiometer shafts, selector switches, and similar control components found on HVAC equipment, fan coil units, panel-mounted controls, and general-purpose instrumentation. The compact dimensions make it appropriate for densely populated control panels where clearance between adjacent components is limited.

Key Features

• Skirted design provides a finished, professional appearance around the shaft mounting point
• 11/16 inch knob diameter with 13/16 inch skirt diameter for secure panel fit
• 1/2 inch recess diameter accommodates standard small-format control shafts
• 7/16 inch stem hole depth ensures positive shaft engagement
• Set screw located 1/4 inch from bottom for reliable shaft retention
• Compact 5/8 inch overall height suits tight panel installations

Compatibility

Designed as an OEM-style replacement skirted knob for use on control panels and instrumentation in residential and light commercial HVAC, electrical, and equipment service applications.

Installation Notes

Installation is typically performed by HVAC technicians or electricians during equipment panel service or control replacement. Power down and de-energize the equipment fully before removing or installing any panel-mounted knobs or controls. Secure the knob to the shaft using the set screw with an appropriate hex key, taking care not to overtighten against the shaft. Verify shaft diameter compatibility before installation to ensure proper fit and retention.
