Gibraltar G10-0073-D Female Insert Lever Knob

Product Description

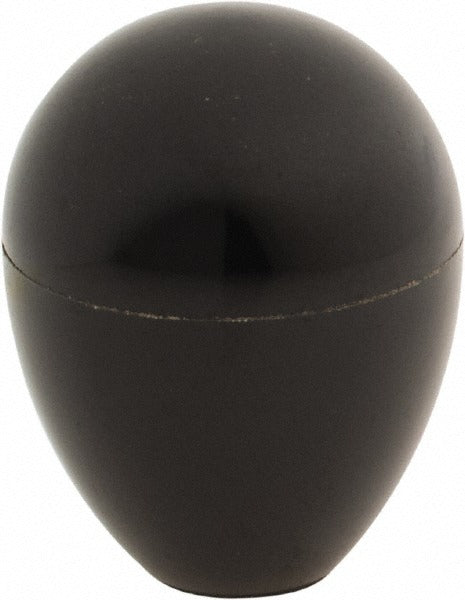

The GIBRALTAR G10-0073-D is a female insert lever knob designed for use in mechanical assemblies where a secure, hand-operable fastening point is required. The knob features a 1-9/64 inch head diameter and a 1/2 inch hub diameter, with a 5/16-24 inch threaded female insert for direct mounting onto a threaded stud or shaft. Overall height is 1-15/32 inches, with a 1/2 inch hole depth. This type of hardware is commonly installed by mechanical technicians and equipment assemblers working on panels, enclosures, and light industrial machinery.

This lever knob is suited for use in control panel assemblies, equipment enclosures, and machinery requiring hand-adjustment without tools. The female insert mount style allows it to thread directly onto an existing stud, making it appropriate for both original equipment builds and field replacements. Typical applications include HVAC equipment panels, electrical enclosures, and general mechanical assemblies where quick manual adjustment or secure hand-tightening is needed.

Key Features

• Female insert mount type threads directly onto a 5/16-24 stud or threaded shaft
• 1-9/64 inch head diameter provides a practical grip surface for hand operation
• 1/2 inch hub diameter and 1/2 inch hole depth for consistent stud engagement
• Overall height of 1-15/32 inches suits standard panel and enclosure clearances
• Tool-free hand operation for panel access and equipment adjustments

Compatibility

Designed as a replacement or original-equipment female insert lever knob for mechanical assemblies, control panels, and enclosures using a 5/16-24 threaded stud mount.

Installation Notes

Installation is typically performed by mechanical technicians or equipment assemblers. Power down or de-energize any associated equipment before servicing panels or enclosures. Thread the knob onto the 5/16-24 stud by hand, ensuring full thread engagement to the hole depth. Do not use power tools to install this knob, as over-torquing can damage the female insert.
