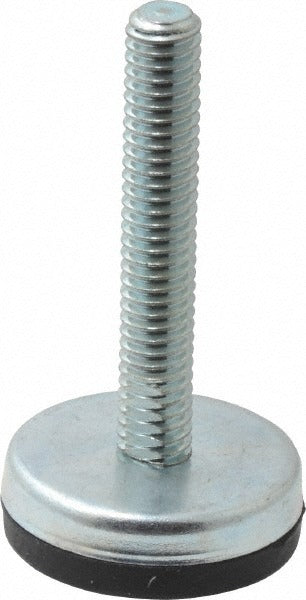

Gibraltar G03-EL-G Leveling Mount 250 Lb

Product Description

The GIBRALTAR G03-EL-G is a threaded leveling mount designed to provide stable, adjustable support for machinery, equipment bases, and workstation frames. The mount features a 5/16-18 bolt thread and a 1.5-inch thread length, allowing for fine height adjustment during installation. With a 250 lb load capacity, it handles typical light-to-medium industrial and commercial leveling applications. The base diameter of 1.2 inches provides a compact footprint while maintaining contact stability on hard floor surfaces. Installers in maintenance, millwright, and light industrial trades use this style of mount to level equipment and eliminate rocking on uneven floors.

This leveling mount is suited for use on machine bases, workbenches, equipment stands, and similar structures in commercial and light industrial environments. It installs in any tapped mounting hole or base plate drilled to accept a 5/16-18 threaded fastener. The compact 1.2-inch base diameter makes it appropriate for applications where space around the mounting footprint is limited. Each unit ships individually, making it straightforward to replace a single damaged or worn mount on an existing installation.

Key Features

• 250 lb load capacity per mount for light-to-medium duty support
• 5/16-18 bolt thread for compatibility with standard tapped base plates
• 1.5-inch thread length allows sufficient height adjustment range
• 1.2-inch base diameter provides stable floor contact in a compact footprint
• Single-piece quantity per package for individual replacement use

Compatibility

Designed as an OEM-style replacement or new-installation leveling mount for machinery bases, equipment stands, and workstation frames with 5/16-18 tapped mounting holes.

Installation Notes

Installation is performed by threading the mount into a pre-tapped hole or base plate and adjusting height until the equipment is level. Use a wrench or pliers on the hex or body of the mount to secure the final position and prevent backing out under load. Power down or de-energize any equipment being serviced before adjusting leveling mounts on live machinery. Do not exceed the rated 250 lb load capacity per mount.
