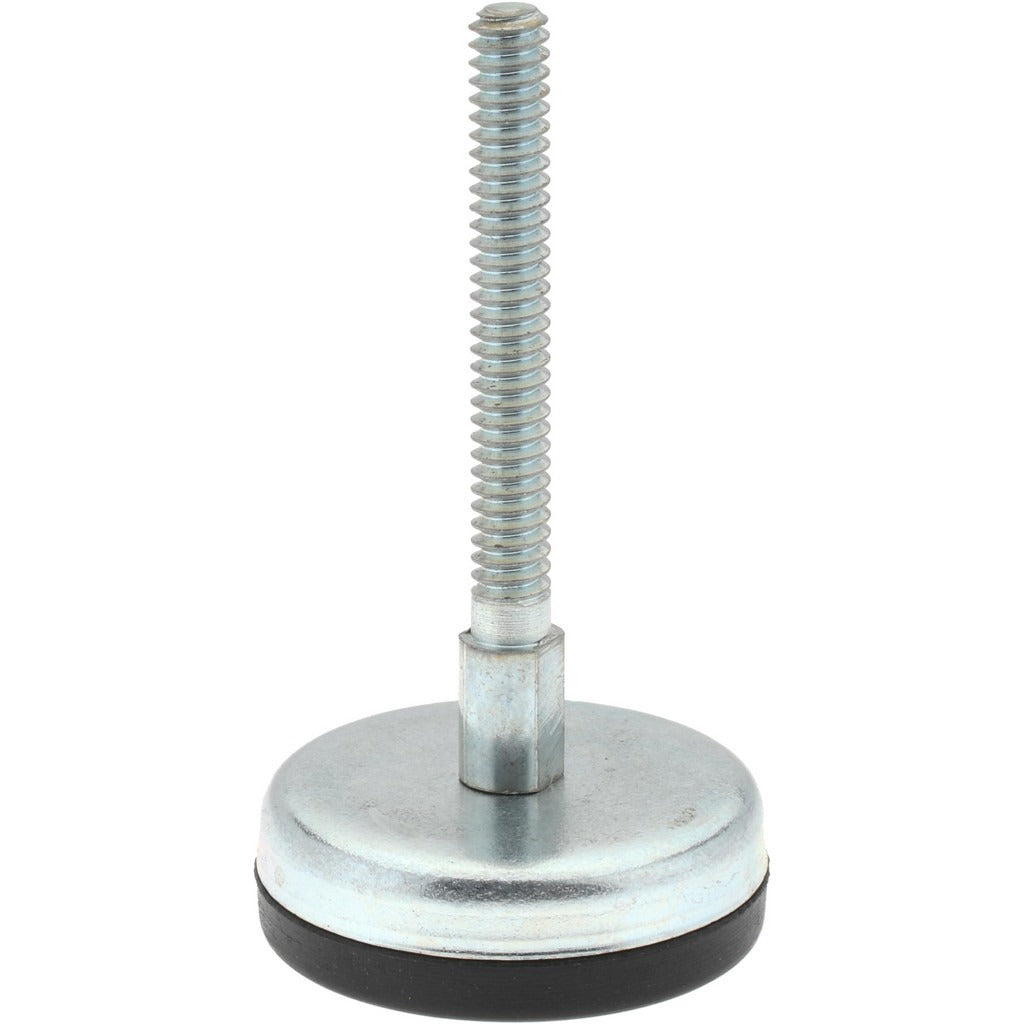

Gibraltar G01-EL-G Leveling Mount 250 Lb

Product Description

The GIBRALTAR G01-EL-G is a leveling mount designed to provide stable, adjustable support for machinery, equipment, enclosures, and fixtures in light industrial and commercial applications. With a 250 lb load capacity and a 10-24 bolt thread size, this mount allows for precise height and angle adjustments to level equipment on uneven surfaces. The 1.2-inch base diameter provides a compact footprint while still distributing load effectively. Licensed trades and maintenance professionals use these mounts during equipment installation to eliminate rocking and ensure proper alignment before final fastening.

This leveling mount is suited for use in industrial, commercial, and light mechanical installation environments. It is commonly installed beneath control panels, electrical enclosures, pumps, compressors, and similar equipment where floor-level adjustment is required. The threaded design allows for fine-tuned leveling without special tooling. Its compact size makes it appropriate for space-constrained installations where larger leveling feet would interfere with adjacent components.

Key Features

• 250 lb load capacity supports a wide range of light industrial equipment
• 10-24 bolt thread size for compatibility with standard threaded mounting holes
• 1.2-inch base diameter provides a compact, low-profile footprint
• 1.5-inch thread length allows for meaningful height adjustment range
• Lightweight at 0.04 pounds for easy handling and installation

Compatibility

Designed as an OEM-style leveling mount for use with equipment and enclosures that accept 10-24 threaded leveling feet in light industrial and commercial applications.

Installation Notes

Installation is typically performed by millwrights, electricians, or general maintenance technicians depending on the equipment type. Before installing, ensure the equipment is de-energized and, where applicable, isolated from any fluid or gas supply. Thread the mount into the designated receiver hole and adjust to achieve level using a spirit level or digital level; tighten a jam nut if present to lock the adjusted height. Do not exceed the rated 250 lb load capacity per mount point.
