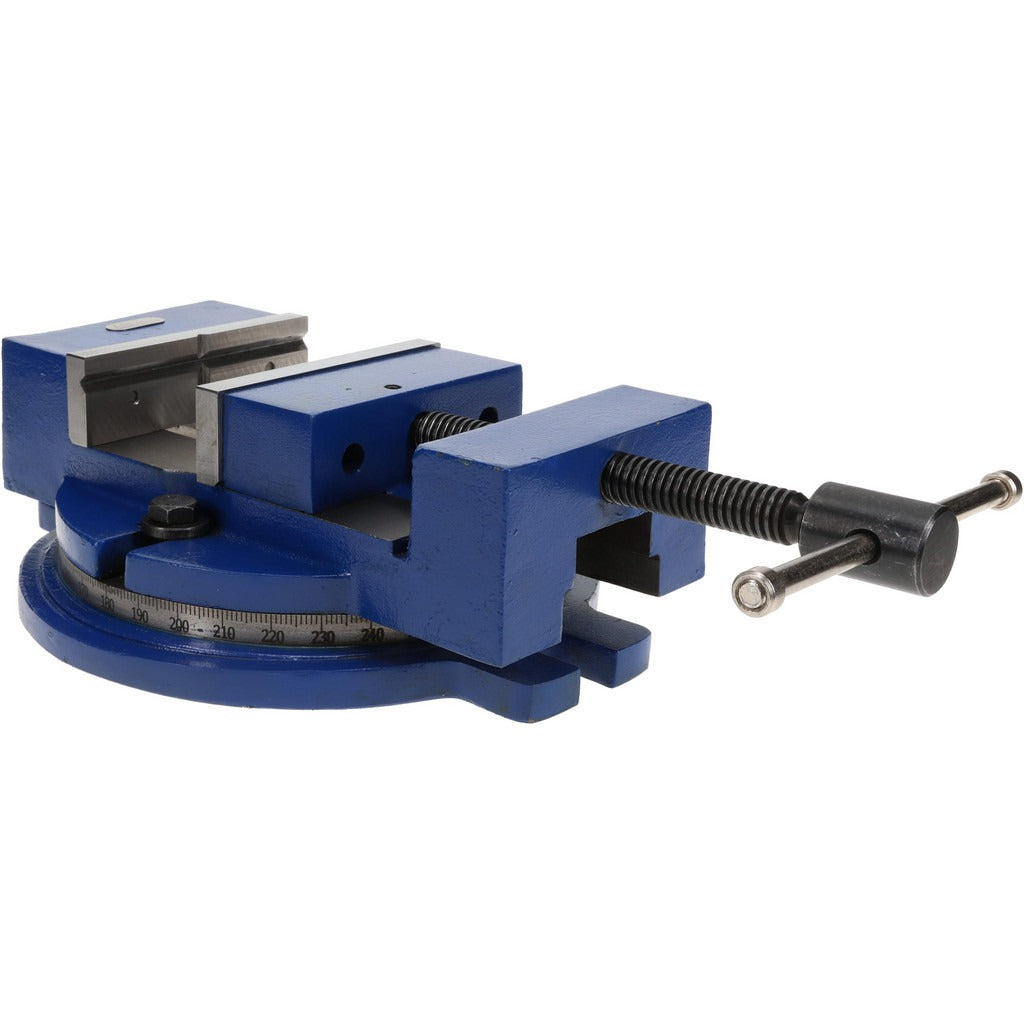

Gibraltar G-110905 Machine Vise 4 in Swivel Base

Product Description

The GIBRALTAR G-110905 is a horizontal machine vise designed for workholding applications on milling machines, drill presses, and similar machine tools. It features a maximum jaw opening of 4 inches and a jaw height of 1.25 inches, providing a secure, stable grip on a wide range of workpiece sizes. The swivel base allows the vise to rotate for angled setups without repositioning the workpiece. Operation is fully manual. At 23.54 pounds, it offers solid mass for vibration resistance during cutting operations. This vise is installed and used by machinists and tool-and-die professionals in job shop and production environments.

The G-110905 is suited for horizontal workholding in light to medium machining operations. Its single-station configuration makes it appropriate for individual setups on knee mills, benchtop drill presses, and similar equipment. The swivel base adds versatility for angular cuts and compound setups without requiring a separate sine vise or additional fixturing. The overall height of 3.5 inches keeps the workpiece at a manageable elevation above the table surface.

Key Features

• 4 inch maximum jaw opening accommodates a wide range of workpiece widths
• Swivel base enables angular positioning without repositioning the vise on the table
• Horizontal orientation for standard milling and drilling workholding
• 1.25 inch jaw height provides consistent grip depth on flat stock and block workpieces
• Manual operation with no pneumatic or hydraulic components to service
• Single-station design for dedicated individual machine setups

Compatibility

Designed as an OEM-style replacement and direct-fit machine vise for horizontal workholding applications on standard T-slot milling machine tables and drill press tables accepting a vise with a 9.84 inch base length.

Installation Notes

Machine vises of this type are mounted and aligned by machinists using T-bolts, strap clamps, or dedicated vise stops fitted to the machine table T-slots. Always power down and lock out the machine before mounting or repositioning the vise. Use a dial indicator to indicate the fixed jaw parallel to the machine axis before tightening the mounting hardware. The swivel base lock should be fully secured before any cutting operation begins.
