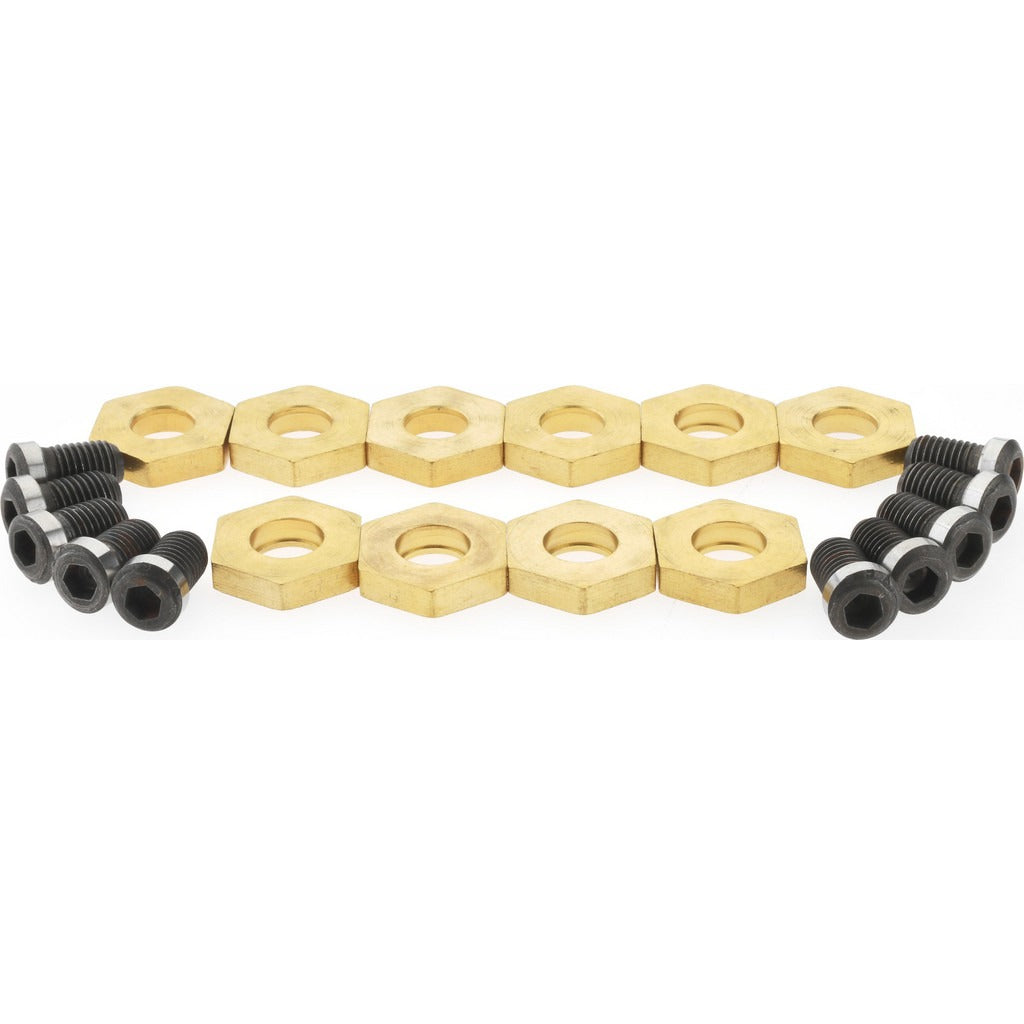

Gibraltar G-02FC42024 Symmetrical Hex Clamp 10-pack

Product Description

The GIBRALTAR G-02FC42024 is a symmetrical hex clamp designed for secure fastening applications requiring a 5/16-24 stud thread. The clamp features a 13/16-inch hex size and a thread length of 0.4688 inches, making it suited for use in panel, electrical, and mechanical assembly work where consistent clamping force and precise thread engagement are critical. This style of hex clamp is typically installed by electricians, panel fabricators, and mechanical assembly technicians working on control enclosures, junction boxes, and related hardware. Each package contains 10 clamps. The symmetrical hex design allows for consistent installation orientation and uniform load distribution across the clamping surface.

These hex clamps are used in light industrial and commercial applications where threaded studs require a reliable mechanical connection point. Common installation scenarios include control panel assembly, electrical enclosure hardware, and mechanical fastening in tight-clearance environments where a standard hex tool is required. The 5/16-24 thread specification makes this clamp compatible with fine-thread stud hardware used across a range of panel and enclosure mounting applications. Sold in a package of 10 units, this product suits technicians who need consistent quantities for production or service work.

Key Features

• Symmetrical hex body design for consistent installation orientation and balanced clamping force
• 13/16-inch hex size compatible with standard hex tooling
• 5/16-24 stud thread for fine-thread engagement and secure fastening
• Thread length of 0.4688 inches for adequate thread engagement depth
• Packaged in quantities of 10 clamps for production and service efficiency

Compatibility

Designed as an OEM-style replacement or direct-use hex clamp for applications requiring a 5/16-24 threaded stud connection with a 13/16-inch symmetrical hex body, typical of control panel and electrical enclosure hardware.

Installation Notes

Installation is performed by electricians or mechanical assembly technicians using standard hex tooling matched to the 13/16-inch hex size. Ensure the mating stud thread is clean and free of debris before engagement to avoid cross-threading the 5/16-24 fine thread. De-energize any panel or enclosure before installing or removing clamp hardware in live electrical environments. Follow applicable NEC guidelines when installing hardware within electrical enclosures.
