Gibraltar EY6420-G Die Mold Ejector Sleeve 3/16 in Od

Product Description

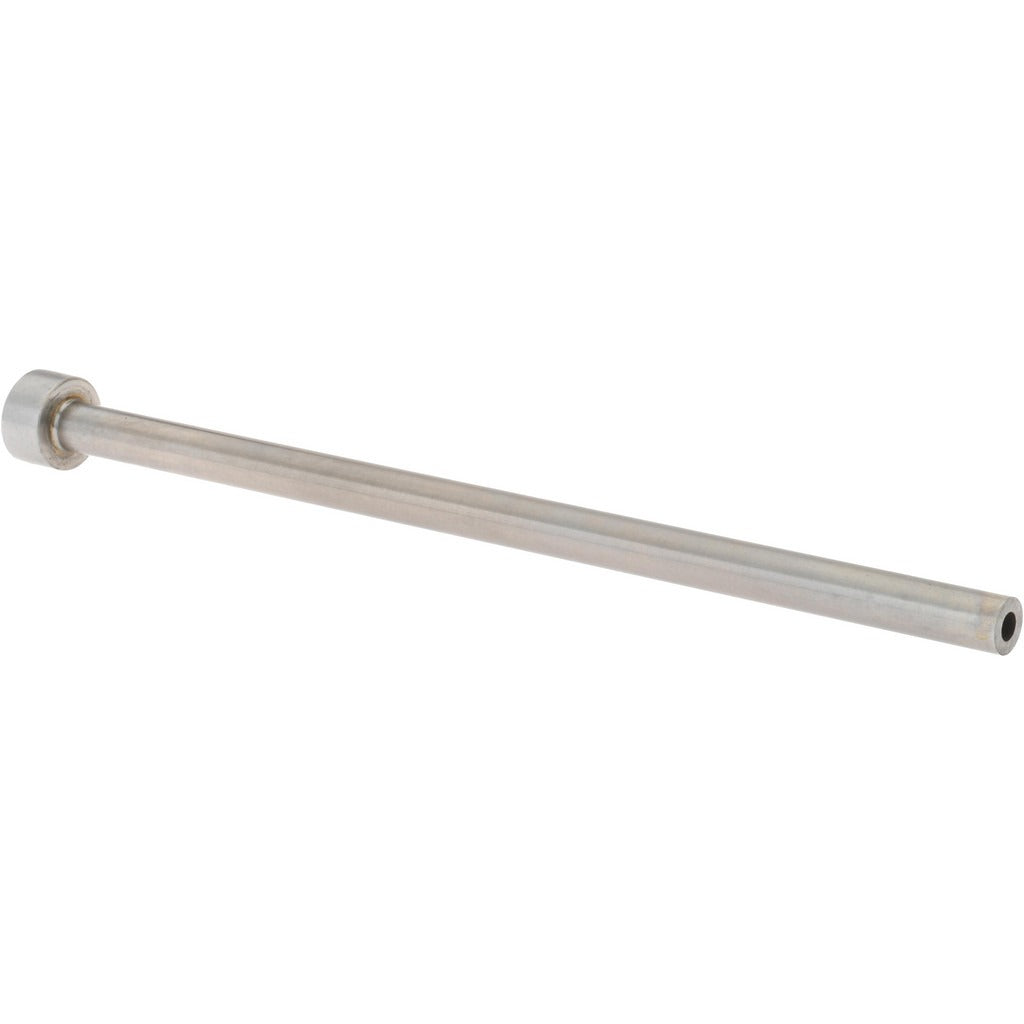

The GIBRALTAR EY6420-G is a die mold ejector sleeve designed for use in injection mold and die casting tooling assemblies. Manufactured from die steel with a nitride coating, it provides a hardened wear surface that extends service life in high-cycle ejection applications. The sleeve measures 3/32 inches inside diameter, 3/16 inches outside diameter, and 4 inches overall length, with a 45-degree chamfer angle. It is installed by toolmakers and mold maintenance technicians working on precision mold bases and ejector systems.

This ejector sleeve is suited for use in plastic injection molds and die cast tooling where a sleeved ejector pin configuration is required. The nitride-coated die steel construction is appropriate for production environments with elevated cycle counts and demanding ejection force requirements. It is sold and used individually as a direct component in mold assemblies.

Key Features

• Nitride-coated die steel body for improved surface hardness and wear resistance
• 3/32 inches inside diameter accommodates standard ejector pin sizing
• 3/16 inches outside diameter fits standard ejector sleeve bores
• 45-degree chamfer angle for guided installation and reduced galling
• 4 inches overall length suits standard mold base ejector plate configurations

Compatibility

Designed as a standard ejector sleeve for use in die mold and injection mold tooling assemblies requiring a 3/32 inches inside diameter by 3/16 inches outside diameter sleeve.

Installation Notes

Ejector sleeves are installed and serviced by toolmakers or mold technicians. The mold or die assembly must be fully de-energized, cooled, and depressurized before any ejector system service. Proper alignment of the sleeve with the ejector pin and retainer plate is critical to prevent premature wear or binding. Follow applicable shop safety procedures and equipment manufacturer guidelines during installation.
