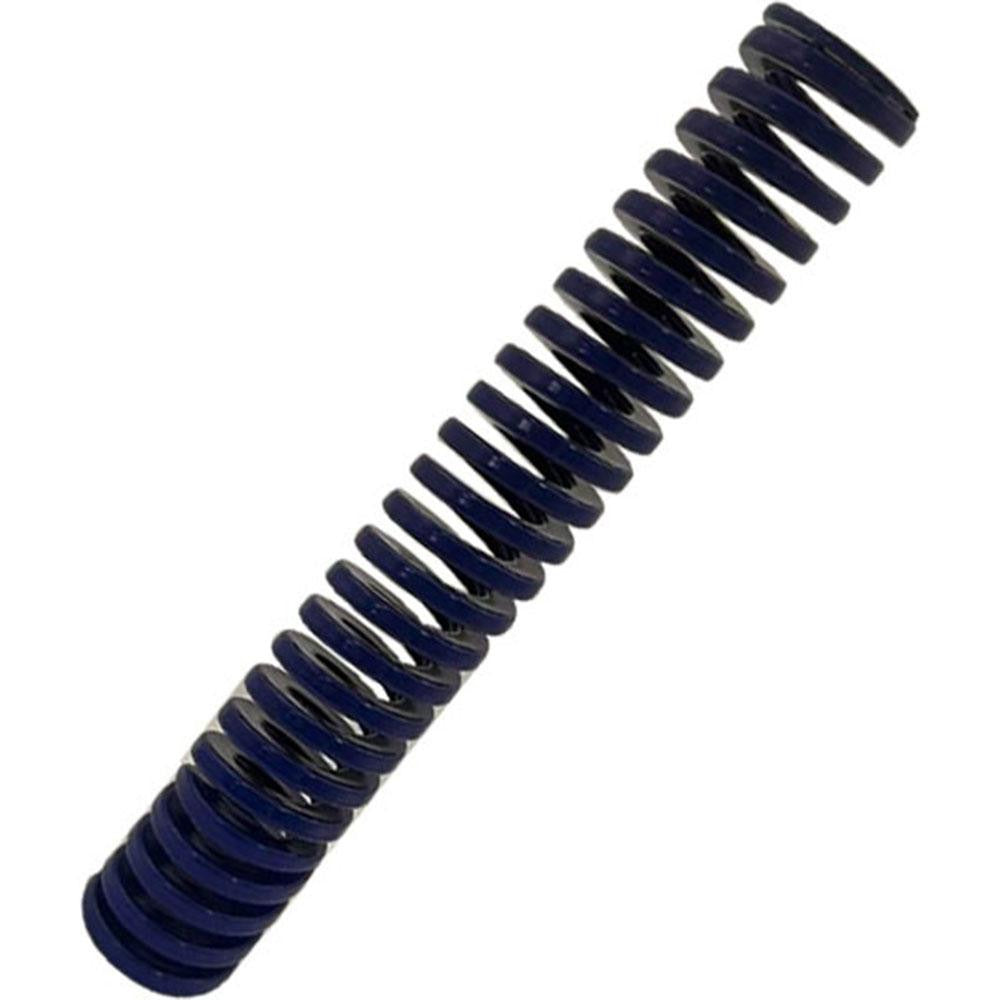

Gibraltar DCIM32-152 Die Spring 6 Inch Blue Medium-duty

Product Description

The GIBRALTAR DCIM32-152 is a medium-duty die spring engineered for use in stamping dies, punch presses, and similar tooling applications where consistent, repeatable spring force is required. It features a 1-1/4 inch hole diameter, a 5/8 inch rod diameter, and a 6 inch free length, with a maximum deflection load of 501 pounds and a maximum deflection of 2.6 inches. The trapezoidal wire shape provides a higher load capacity per unit of travel compared to round wire designs. Constructed from chromium alloy steel, this spring delivers reliable performance under the cyclic loading conditions common in production tooling environments.

This die spring is suited for installation in medium-duty die sets used in metal stamping, forming, and stripping operations. The blue color coding follows ISO 10243 international standards for medium-duty die springs, making identification and replacement straightforward during die maintenance. It is appropriate for both OEM die builds and field replacement in existing tooling. Toolmakers, die setters, and maintenance technicians working in manufacturing and fabrication environments are the primary installers.

Key Features

• 1-1/4 inch hole diameter and 5/8 inch rod diameter for precise die set fitment
• 6 inch free length with 2.6 inch maximum deflection and 2.6 inch compressed length at maximum load
• 501 pound maximum deflection load with a spring rate of 193 pounds per inch
• Trapezoidal wire cross-section for higher load density relative to round wire springs
• Chromium alloy steel construction for fatigue resistance under cyclic loading
• Blue color coding per ISO 10243 medium-duty classification for easy field identification
• Meets NAAMS, ISO 10243, and ISO 9001:2015 standards

Compatibility

Designed as an OEM-style replacement or new-build component for medium-duty die sets and tooling assemblies that accept a 1-1/4 inch hole diameter, 5/8 inch rod diameter die spring per ISO 10243 and NAAMS standards.

Installation Notes

Die springs should be installed by qualified toolmakers or die maintenance technicians familiar with press tooling safety procedures. Always de-energize and lock out the press before accessing the die set. Inspect the mating rod and bore for surface condition and concentricity before installation, as misalignment accelerates fatigue wear. Do not exceed the rated maximum deflection of 2.6 inches, as operating a die spring beyond its travel limit will significantly reduce service life.
