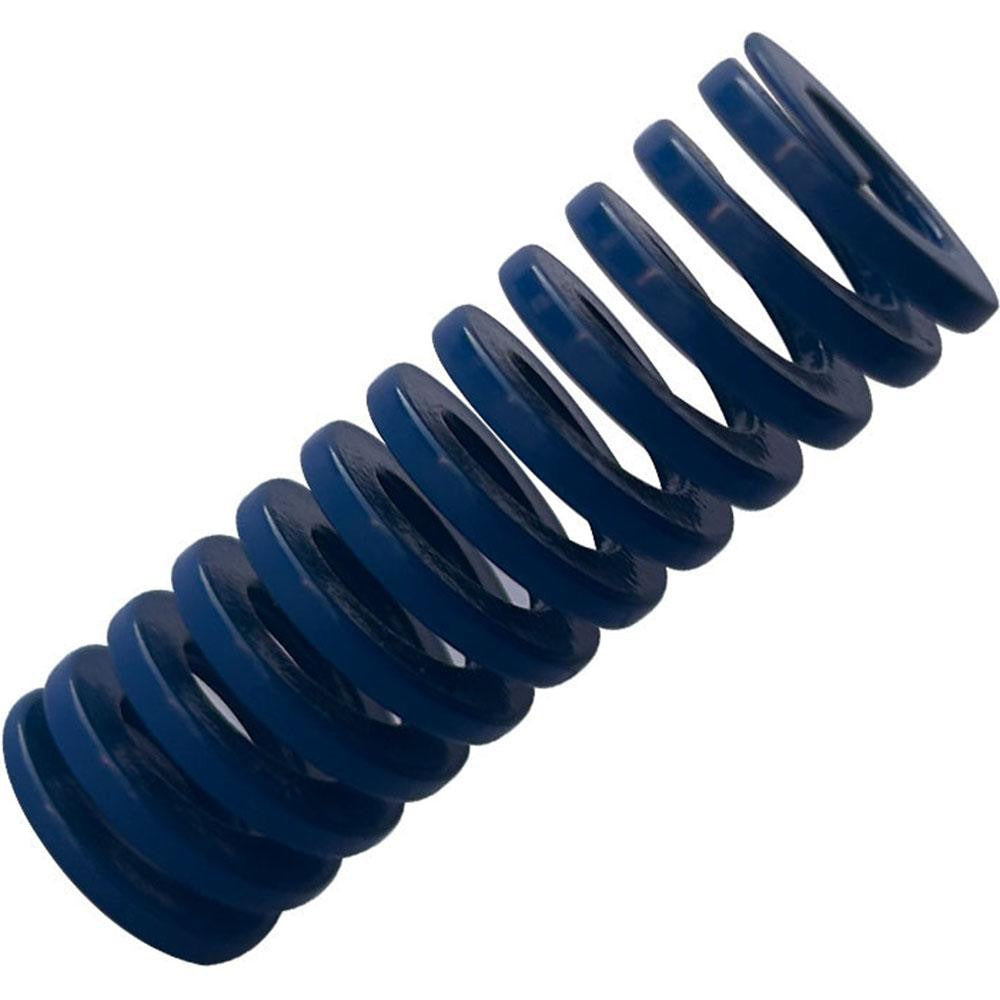

Gibraltar DCIM12.5-44 Die Spring Blue Medium-duty

Product Description

The GIBRALTAR DCIM12.5-44 is a medium-duty die spring designed for use in stamping dies, molds, and industrial tooling applications. Built from chromium alloy steel with a trapezoidal wire cross-section, it delivers a maximum deflection load of 82 pounds and a spring rate of 91 pounds per inch. The 0.5-inch hole diameter accepts tooling rods up to 9/32 inch (0.2813 inches) in diameter, and the 1.75-inch free length compresses to a solid height of approximately 0.91 inches at full load. Color-coded blue for quick duty-rating identification in the field, this spring meets NAAMS and ISO 10243 standards for die spring performance.

This spring is suited for press tool, progressive die, and injection mold applications in light manufacturing and industrial maintenance environments. The medium-duty rating makes it appropriate for moderate-load return, stripping, and clamping functions within tooling assemblies. Toolmakers, die setters, and maintenance technicians working on stamping and molding equipment are the primary installers. It is sold individually and is compatible with standard 0.5-inch bore die spring pockets.

Key Features

• Chromium alloy steel construction with trapezoidal wire cross-section for consistent load characteristics
• Maximum deflection load of 82 pounds with a spring rate of 91 pounds per inch
• 0.5-inch hole diameter and 9/32-inch rod diameter for standard tooling fitment
• 1.75-inch free length with 0.91-inch maximum deflection travel
• Blue color coding identifies medium-duty rating at a glance
• Meets NAAMS, ISO 10243, and manufactured under ISO 9001:2015 registered quality systems

Compatibility

Designed as a direct-fit replacement for standard medium-duty die spring positions requiring a 0.5-inch hole diameter, 9/32-inch rod diameter, and 1.75-inch free length per NAAMS and ISO 10243 dimensional standards.

Installation Notes

Die spring replacement and installation is performed by qualified toolmakers or die maintenance technicians. Always relieve all press pressure and lock out the press before servicing tooling components. Verify that the spring pocket bore and rod diameter match the spring specifications before installation. Do not exceed the rated maximum deflection travel to avoid coil binding and premature failure.
