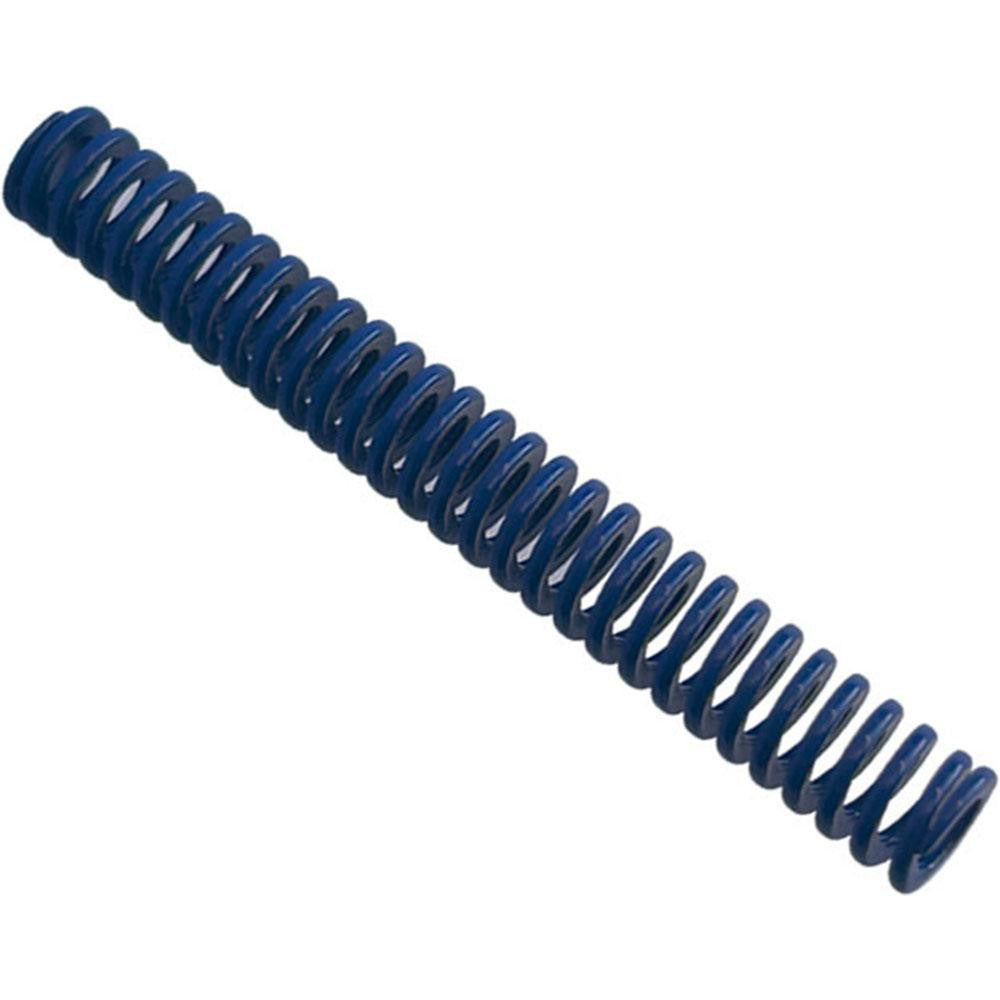

Gibraltar DCIM10-76 Die Spring Medium Duty Blue

Product Description

The GIBRALTAR DCIM10-76 is a medium-duty die spring designed for use in stamping dies, molds, and industrial press tooling. Built from chromium alloy steel with a trapezoidal wire cross-section, it delivers consistent force output and high fatigue resistance under repeated compression cycles. The spring features a 3/8 inch hole diameter, a 3/16 inch rod diameter, and a 3 inch free length. Maximum deflection load is 52.00 pounds with a spring rate of 31.00 pounds per inch. Color-coded blue per industry convention to identify medium-duty load class at a glance. Installation and replacement are performed by toolmakers, die setters, and maintenance machinists.

This die spring is suited for standard industrial and automotive tooling applications where repeatable spring force is required. It is commonly used in stamping presses, injection molds, punch and die assemblies, and fixture components. The blue color coding aligns with NAAMS and ISO 10243 classification for medium-duty springs, making it straightforward to identify and cross-reference during tooling maintenance or rebuild work. Sold individually, it fits applications requiring a compact, rod-guided compression spring with a 3 inch free length.

Key Features

• Chromium alloy steel construction for high fatigue life under cyclic loading
• Trapezoidal wire cross-section increases load capacity relative to spring body size
• 3/8 inch hole diameter and 3/16 inch rod diameter for precise guided fitment
• Maximum deflection load of 52.00 pounds at 1.64 inches of travel
• Blue color coding conforms to medium-duty classification per NAAMS and ISO 10243
• Meets ISO 9001:2015 registered manufacturing standards

Compatibility

Designed as an OEM-style replacement die spring conforming to NAAMS and ISO 10243 standards for medium-duty blue-class springs with a 3/8 inch hole diameter, 3/16 inch rod diameter, and 3 inch free length.

Installation Notes

Die spring replacement is typically performed by toolmakers or die maintenance technicians. Before servicing, de-energize and lock out all press or mold equipment per applicable OSHA lockout/tagout procedures. Ensure the rod diameter and hole diameter of the seat match the spring dimensions before installation. Never compress the spring beyond its rated maximum deflection of 1.64 inches to avoid permanent set or premature failure.
